industrial isolated Converter
485LDRC9

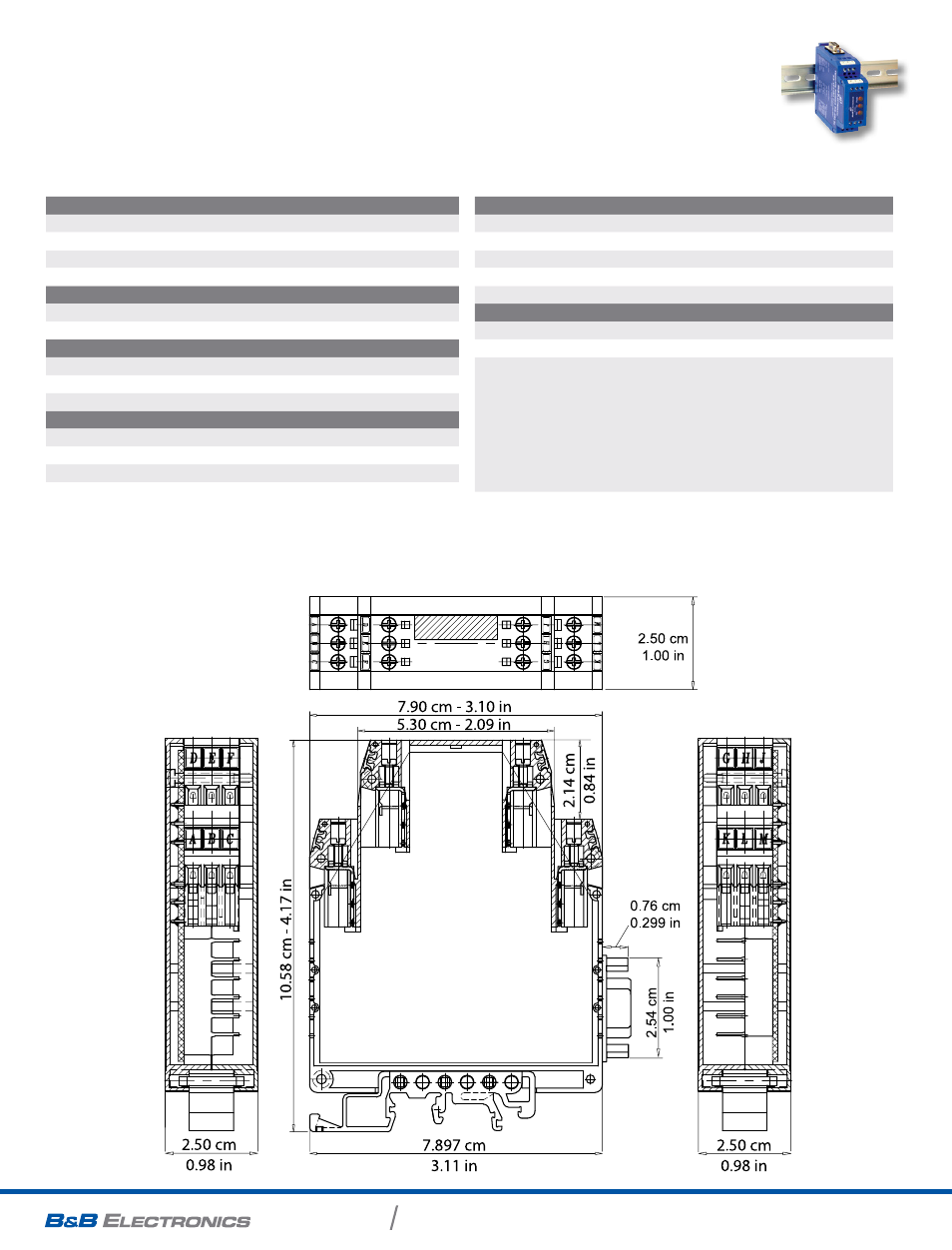

Dimensional Diagram of 485LDRC9
meChaniCaL Diagram
SpeCiFiCationS
Power
Connector Terminal block
Voltage 10-30 VDC
Consumption 0.5 W
Source External powering required
terMinal bloCks
Wire Size 24 to 14 AWG
Torque 4 kfg-cm
led indiCators
Power (RED) On when power applied
TD (RED) Flashes when RS-422/485 data is transmitted
RD (RED) Flashes when RS-422/485 data is received
enClosure
Material Plastic
IP Rating 20
Dimensions 2.5 x 7.9 x 9.5 cm (1.0 x 3.1 x 3.7 in)
Mounting 35 mm DIN rail (panel mount adapter available)
pn#6577
Model 485LDRC9
2.50 cm
1.00 in
7.90 cm - 3.10 in
5.30 cm - 2.09 in
0.76 cm
0.299 in
2.54 cm 1.00 in
2.50 cm
0.98 in
2.50 cm
0.98 in
7.897 cm
3.11 in
2.14 cm 0.84 in
10.58 cm - 4.17 in
environMental
Operating Temperature -40 to +80 °C (-40 to +176 °F)
Storage Temperature -40 to +85 °C (-40 to +185 °F)
Operating Humidity 0 to 95% non-condensing
MTBF, 485LDRC9 257448 hours
MTBF Calculation Method Parts Count Reliability Prediction
aPProvals / CertiFiCations - 485ldrC9
cULus Recognized, File Number: E222870, NEMA TS2
FCC Part 15, CISPR, EN 55022: 2010 + AC:2011 Class A Emissions
CE
EN 61000-6-1: 2007 Generic Standards for Residential, Commercial and Light-
Industrial Environments
EN 61000-4-2: 2009 Electro-Static Discharge (ESD)
EN 61000-4-3: 2006 +A1 +A2 +IS1 Radiated Field Immunity (RFI)
EN 61000-4-4: 2012 Electrical Fast Transients-Burst Immunity (EFT)
EN 61000-4-6: 2009 Conducted Immunity
Download complete Declaration of Conformity at www.bb.elec.com
