industrial isolated Converter

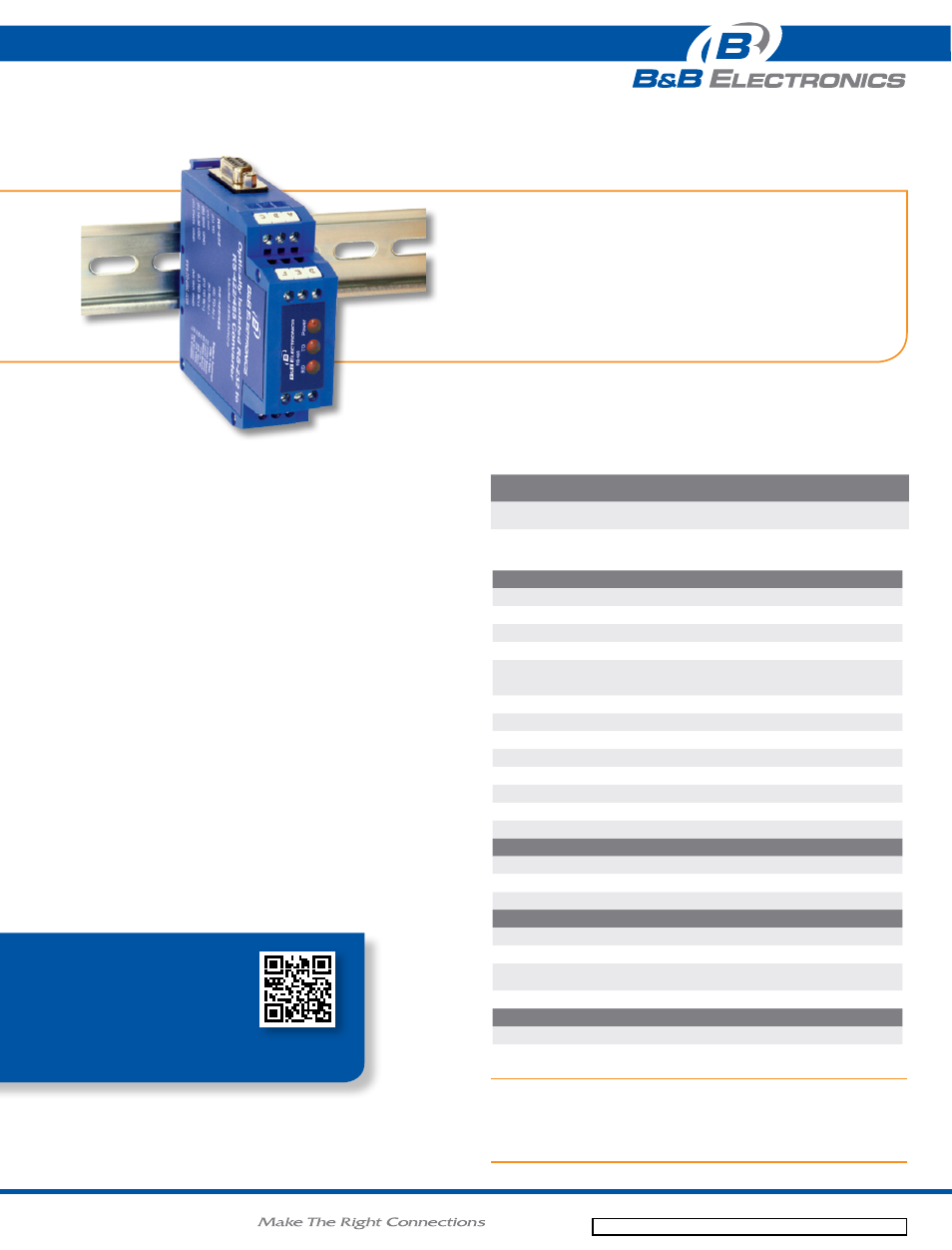

485LDRC9

The 485LDRC9 is an optically isolated RS-232 to RS-422/485 converter.
RS-232 signals interface through a DB9 female connector or a terminal
block. RS-422/485 signals and power inputs connect to the terminal block.
Terminal blocks are arranged to allow easy wiring inside a control panel.

Built-in Automatic Send Data Control circuitry allows quick set-up
and eliminates the need for external software drivers to control handshake
signals. The converter operates on externally sourced 10-30 VDC power.

Optically isolated data lines (2,000 V on input/output) with 500W surge
suppression ensure that connected equipment is protected even in the
harshest environments. DIN rail mount design snaps on standard 35mm
rail and a small form factor fits neatly into
tight cabinets.

The 485LDRC9 is ideal for critical industrial communications, factory
automation, in-cabinet conversion, warehouse automation, security, and
many other applications.

• Extend data up to 1.2 km (4,000 ft.)
• 2 kV optical isolation on input/output
• Wide operating temperature (-40 to +80 °C)
• Modbus compatible
• UL Recognized, NEMA TS2
• Automatic Send Data Control

proDuCt FeatureS

aCCeSSorieS

MDR-40-24 - DIN Rail Mount Power Supply 24VDC, 1.7 A output power
9PAMF6 - 6 ft. (1.8 m) 232 DB9 male to DB9 female serial cable

SpeCiFiCationS

serial teChnology

rs-232 - 2 options
Option 1: Connector

DB9 Female (DCE)

Option 1: Signals

TD, RD, GND

Option 2: Connector

Terminal block

Option 2: Signals

TD, RD, GND

rs-422
Connector

Terminal block

Signals

TDA(-), TDB(+), RDA(-), RDB(+), GND

Termination

120 (switchable)

rs-485
Connector

Terminal Block

Signals

TDA(-), TDB(+), RDA(-), RDB(+), GND

Modes

2-wire and 4-wire

Termination

120 (switchable)

isolation

Lines Protected

Data lines

Method

Optical

Rating

2,000 V

surge suPPression

Lines Protected

Data lines

Method

TVS

Rating

7.5V bi-directional avalache breakdown device

500W peak power dissipation

Response Time

< 1 pico-second

industrial bus

Modbus

ASCII/RTU

orDering inFormation

Model

nuMber

rs-232 ConneCtor

rs-422/485 ConneCtor

485LDRC9

DB9 Female or

Terminal Block

Terminal Blocks

Learn More!

reaD on!
RS-485 Problem Solver

www.bb-elec.com/485ProblemSolver
