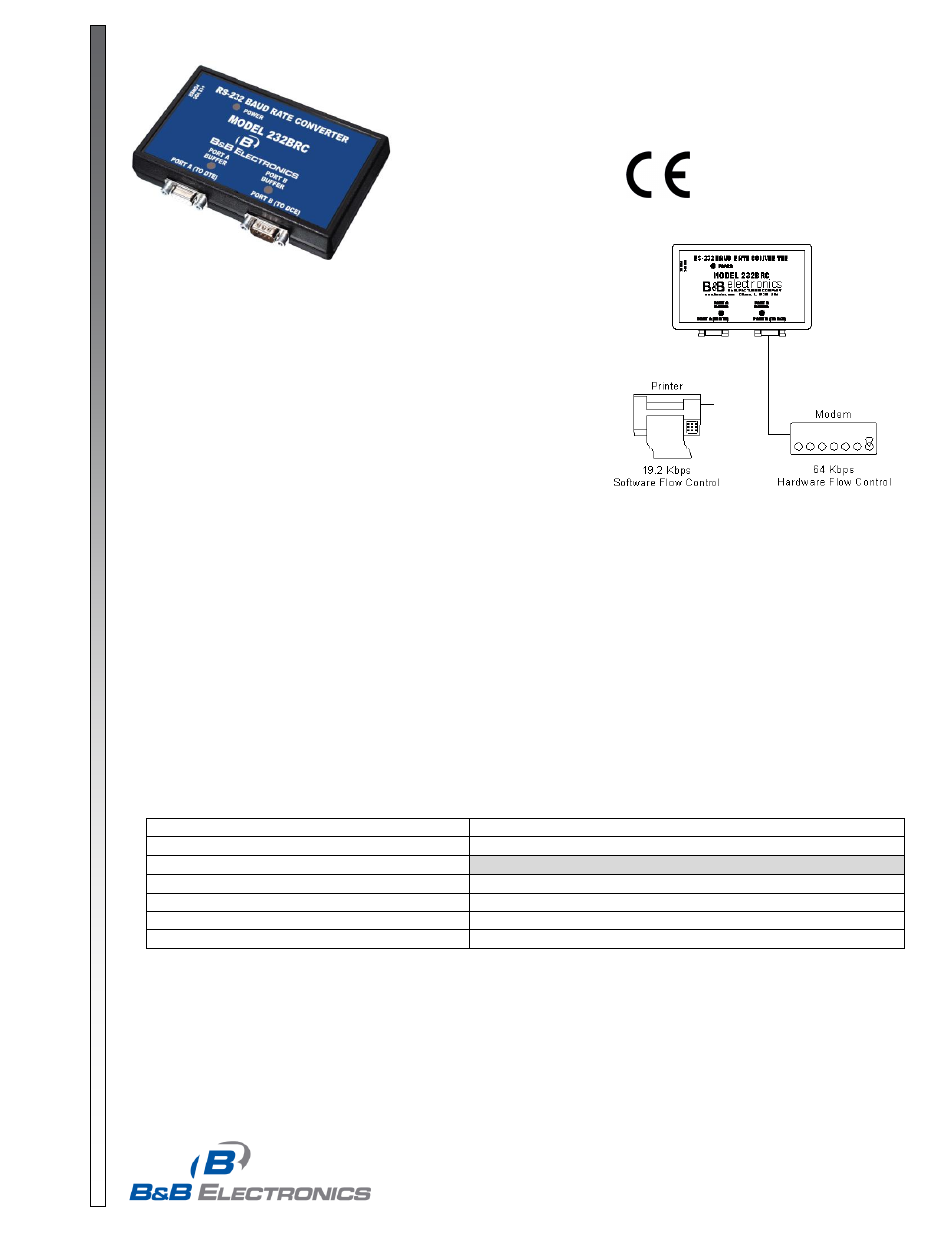

Model: 232BRC
Baud Rate Converter
Features
 Data Rates up to 115.2 kbps
 16 Kb Buffer Prevents Data Loss
 Hardware and Software Flow Control
 Interconnects Devices with Different Data Rates, Formats, and Handshaking
Functional Description
Put legacy equipment with incompatible communications standards back into service. Many older or
proprietary system devices lack the option to reconfigure baud rate, data format, and handshaking. The
232BRC acts as a translator between asynchronous devices,
matching each device’s needs while
maintaining the highest possible throughput. Each side can be individually configured to suit the device
connected to it. It supports data rates up to 115.2 kbps and all standard data formats. Each side can either
supply or accept hardware or software handshaking. The included PC setup software walks the user
through all possible options. Once configured by a PC, the module may be installed on any system. Non-
volatile memory maintains the parameters when power is removed. A detailed instruction manual is
contained on the CD ROM which ships with the product. A 12VDC power supply is required (not included).
Ordering Information
Model Number Description
232BRC RS-232 Baud Rate Converter
Accessories
232CAMR DB25F to DB9M 6 inch adapter cord
232CAMS DB25 Male to DB9 Female 6 inch Adapter Cable
232PS 12VDC, 100mA Power Supply, Wall transformer
9PAMF6 6 ft - DB9 to DB9 Cable, Male to Female
