Features and Benefits
Robust Industrial Performance
• Extended operating temperature range
• Hot swappable
Future Friendly
• Available in a wide range of fiber types, wavelengths and transmission rates
to meet almost any networking need
• Includes single-strand fiber versions
Extended Diagnostics
• Powerful Digital Diagnostics Monitoring Interface (DDMI) for troubleshooting
Standards Compliant
• Multi-source package with Duplex LC or Single-Strand SC connector
• Eye Safety meets Laser Class 1 compliance with IEC 60825-1
• Complies with Telecordia GR-468-CORE
Choose From Four Data Rates
155 Mbps
• Compliant with ITU-T G.957, G.958 and IEEE 802.3u
• Applications: Fast Ethernet, OC-3/STM-1 and other optical links
1.25 Gbps
• Compliant with specifications for IEEE 802.3z
• Applications: Gigabit Ethernet and other optical links
2.4 Gbps
• Applications: Gigabit Ethernet, OC-48 and other optical links
10 Gbps
• Applications: Ten Gigabit Ethernet, OC-192 and other optical links

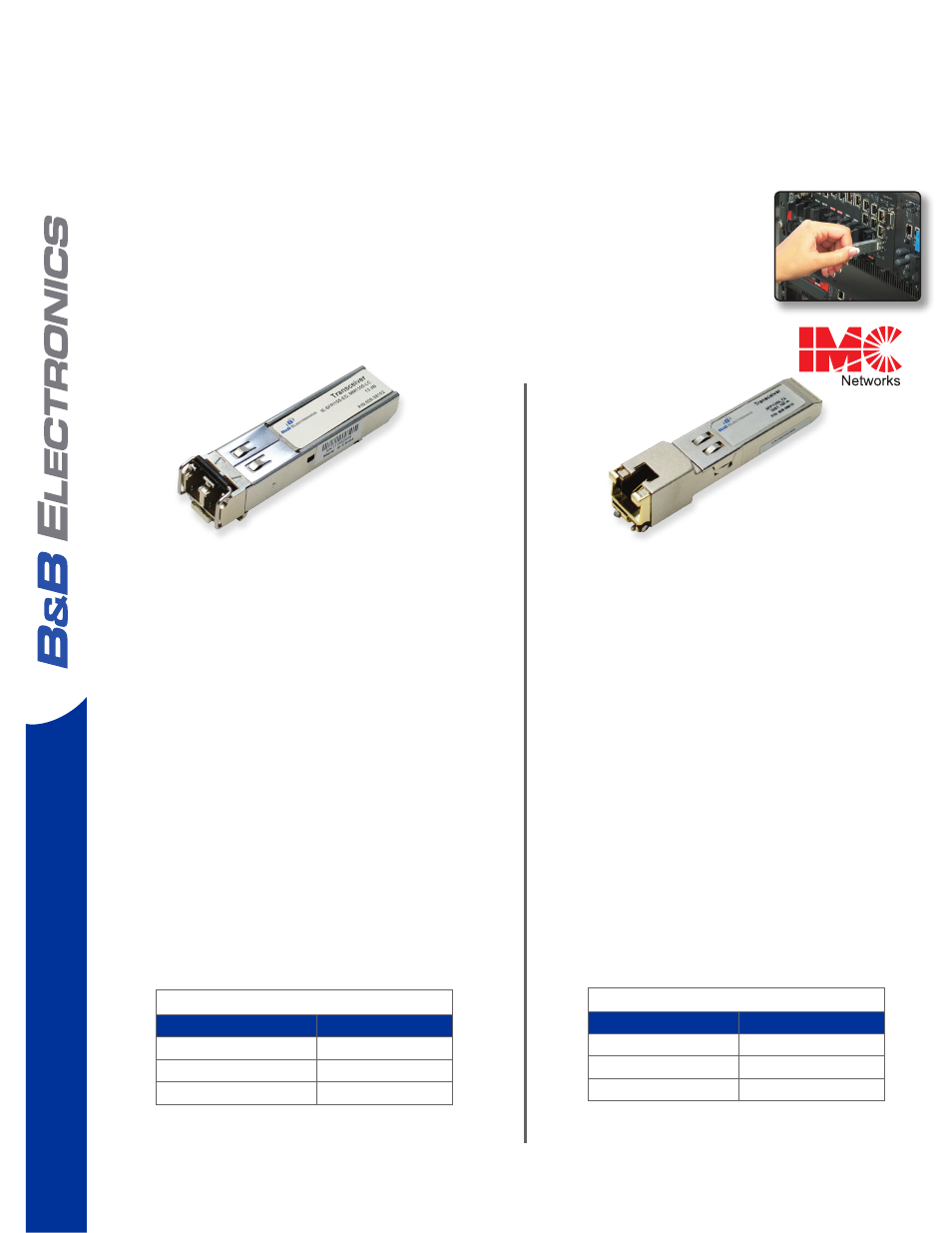

SMALL FORM PLUGGABLE MODULES COPPER (10/100/1000 AND 1000 MBPS)
AND FIBER (155 MBPS / 1.25 GBPS / 2.4 GBPS / 10 GBPS)
SFP/SFP+/XFP Modules
SFPs and XFPs are compact transceivers which function as modular connectors. Available for copper (RJ-45) and for all
common fiber modes, wavelengths and data rates, SFPs and XFPs allow network operators to connect different interface
types to the same network equipment, via an SFP/XFP port. The cost of cable upgrades is greatly reduced - preserving
the investment in costly networking equipment, for the price of a relatively inexpensive SFP or XFP. More and more
network equipment is being designed with SFP/XFP ports, to take advantage of this flexibility, and to take the uncertainty
and guesswork out of expensive equipment purchases. Remember to select the SFP or XFP to match the speed of the
designated port.
Features and Benefits
Applications
• Gigabit Ethernet over Cat 5 cable
• Switch/Router to Switch/Router Link
• High speed I/O for file severs
Features
• Up to 1.25 Gbps bi-directional data links
• Hot-pluggable SFP footprint
• Temperature range (0° to +85° C )
• Fully metallic enclosure for low EMI
• Low power dissipation
• Compact RJ-45 connector assembly
• Detailed product information in EEPROM
• Access to physical layer IC via 2-wire serial bus
• 10/100/1000 BASE-T operation in host systems with SGMII interface
Standards Compliant
• Compliant with SFP MSA
• Compliant with IEEE Std 802.3TM-2002
• Compliant with FCC 47 CFR Part 15, Class B
• RoHS compliant
Two Versions Available:
• 10/100/1000 Mbps, SGMII interface
• 1000 Mbps only, SERDES interface
Specifications
Parameter Range
Input Voltage 3.3V
Operating Temperature *,** -40° to +85° C
Storage Temperature -40° to +85° C
Specifications
Parameter Range
Input Voltage 3.3V
Operating Temperature 0° to +85° C
Storage Temperature -40° to +100° C
Copper SFPs Fiber SFP, SFP+ & XFPs (Ext. Temp.)
* 10 Gbps IE-SFP+ versions’ Operating Temp is -10° to
+70° C
** CWDM & 10 Gbps IE-XFP versions’ Operating Temp is
0° to +70° C
Future-proof network equipment using copper SFPs and fiber SFPs and XFPs
