Cordsets

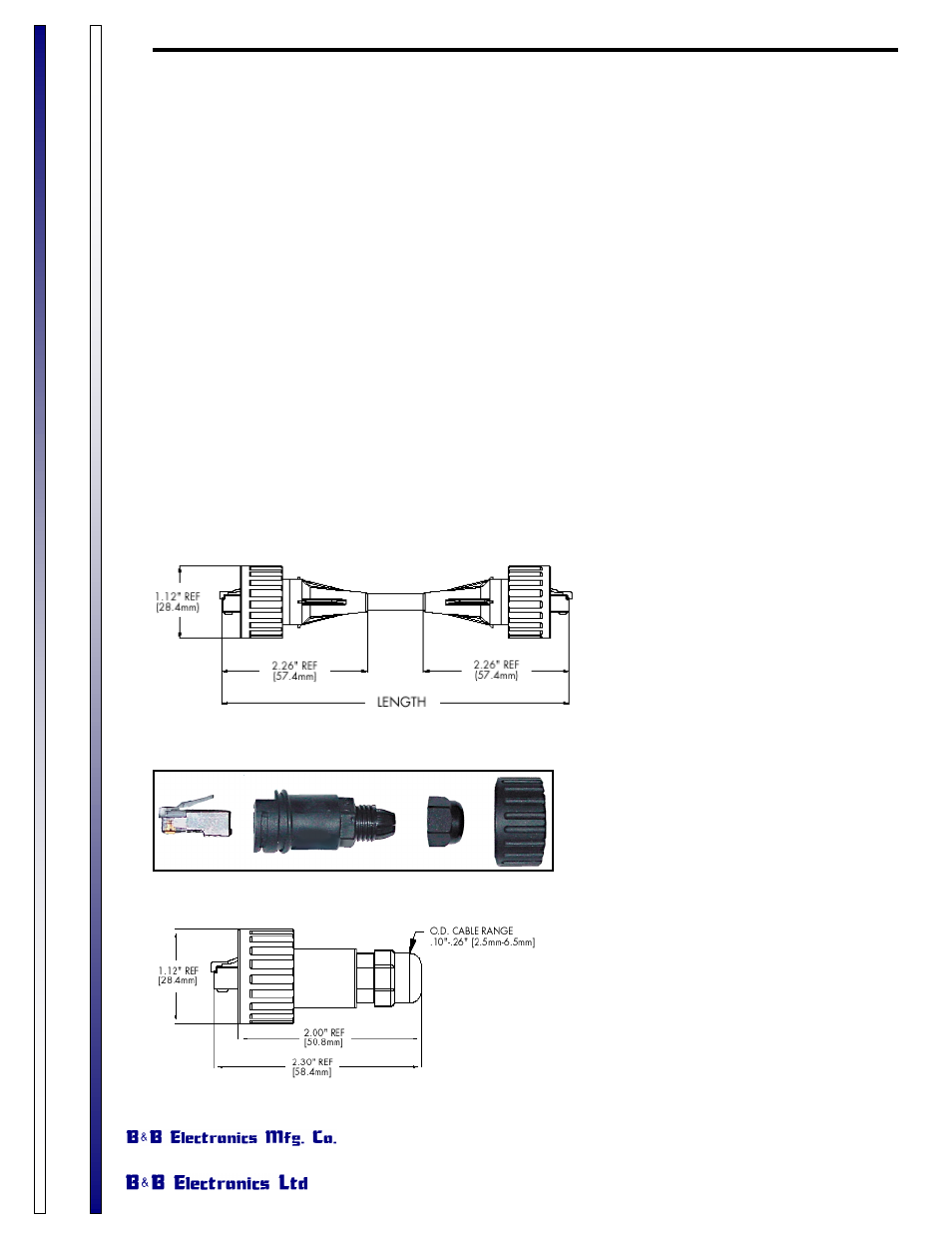

Cordsets utilize a standard RJ-45 plug, but add strain relief and a locking mechanism that creates a seal when mated
with a receptacle. Cordsets can be ordered to length as an overmolded cordset, or as an attachable device that can be
assembled in the field.
Overmolded Cordsets are available in two configurations. When both cord ends are in a harsh environment, order
with two industrial sealed connectors; for a able with one end in a harsh environment, and the other in a sealed or office
area, order with one industrial connector and one commercial grade plug for a better fit into a standard patch panel.
ENS1115M020 .......Male Industrial to Male Industrial RJ45, 2 meter, 10 Base-T, 4 conductor
ENS1115M040 .......Male Industrial to Male Industrial RJ45, 4 meter, 10 Base-T, 4 conductor
ENS1115M050 .......Male Industrial to Male Industrial RJ45, 5 meter, 10 Base-T, 4 conductor
ENS1135M020 .......Male Industrial to Male Standard RJ45, 2 meter, 10 Base-T, 4 conductor
ENS1135M040 .......Male Industrial to Male Standard RJ45, 4 meter, 10 Base-T, 4 conductor
ENS1135M050 .......Male Industrial to Male Standard RJ45, 5 meter, 10 Base-T, 4 conductor
ENS2115M020 .......Male Industrial to Male Industrial RJ45, 2 meter, 568A, 8 conductor
ENS2115M040 .......Male Industrial to Male Industrial RJ45, 4 meter, 568A, 8 conductor
ENS2115M050 .......Male Industrial to Male Industrial RJ45, 5 meter, 568A, 8 conductor
ENS2135M020 .......Male Industrial to Male Standard RJ45, 2 meter, 568A, 8 conductor
ENS2135M040 .......Male Industrial to Male Standard RJ45, 4 meter, 568A, 8 conductor
ENS2135M050 .......Male Industrial to Male Standard RJ45, 5 meter, 568A, 8 conductor
Connector Specifications
Insert Material: Acrylonitrile-Butadiene-Styrene (ABS)
Overmold Material: Polyurethane (Solid Core & Proplex)
Coupling Nut Material: Acrylonitrile-Butadiene-Styrene (ABS)—standard version
Acrylonitrile-Styrene-Acrylate (Luran™ S778 T/TE)—UV stabilized version
Recommended Mating Torque: 12-inch-lbs.
Field Attachable Connector
Assemble the connection in the field using a
standard crimping tool, and still enjoy the same IP67
sealed connection as the overmolded cordset. One
thousand foot bulk cable put-ups are available for
both Solid Core PUR and Proplex cable.
ENSAM315......Field attachable RJ-45 connector for solid core C5 cable
ENQAM315 .....Field attachable RJ-45 connector for stranded core C5 cable
