Harsh Duty Ethernet Connectors and Cabling
Overview
By combining standard RJ-45 connection technology with the industrially-proven mini form factor, these Industrial
Ethernet Connectivity products provide a line-up designed to safeguard the integrity of your data even in the harshest
manufacturing, processing or commercial settings.
Features
• Environmental Sealing
• Vibration Resistance
• Secure Robust Connections
• Performance in Electrically Noisy Conditions
Receptacles
The following receptacles offer solutions for Ethernet field device connectivity, regardless of the operating environment.
All receptacles are compatible with commercial RJ-45 connectors, enabling one solution for both harsh and benign
environments.

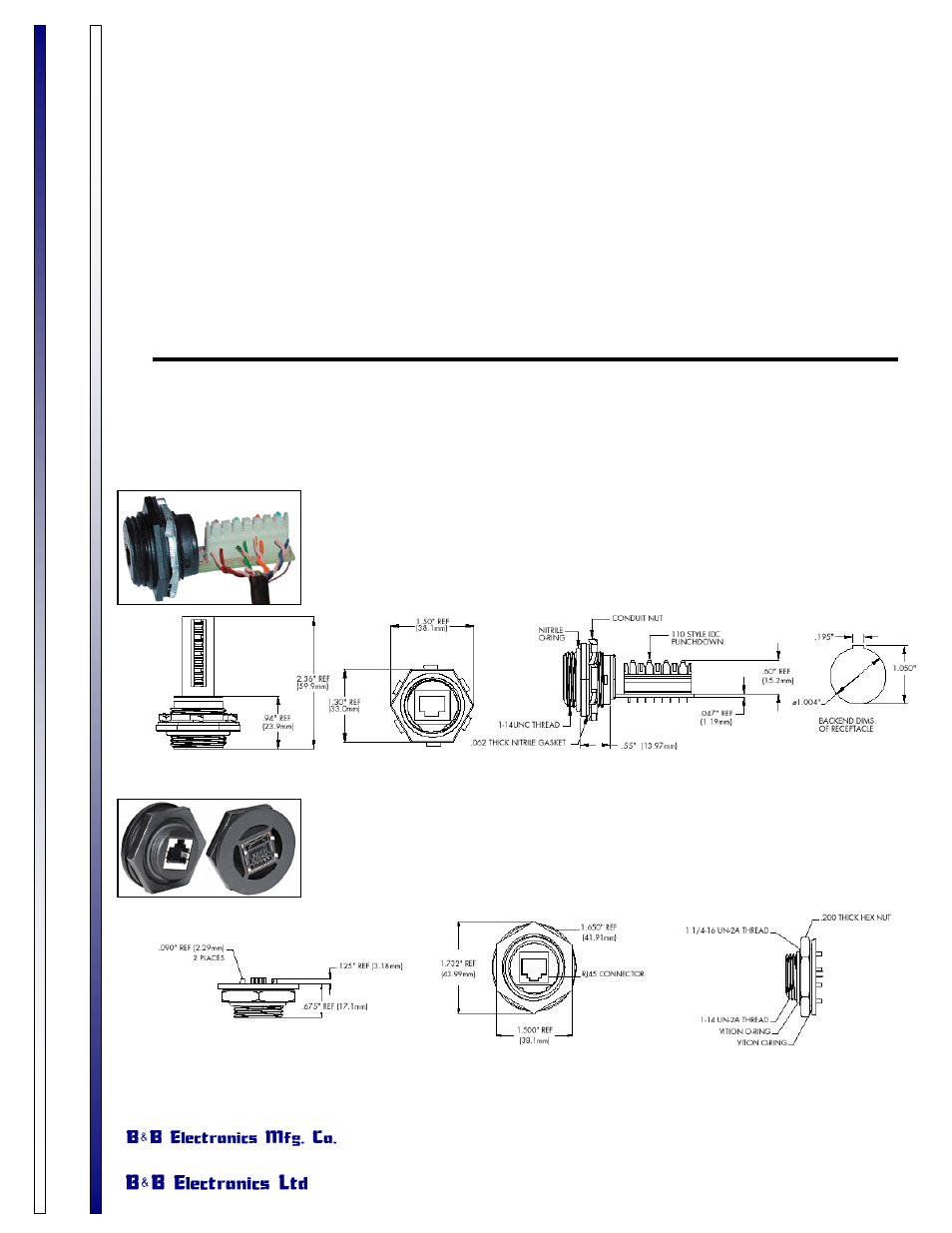

110 Punchdown Block
Simple termination via Insulation Displacement Connections (IDC) with the use of commonly
available punchdown tools. Ideal for premise wiring applications.
ENDR2FB5 .........110 receptacle, 568A and 568B wiring, back-side locking nut
Direct PCB Mount Receptable
Short depth receptacle that solders directly to a Printed Circuit Board (PCB)-intended for
OEMs who wish to incorporate a robust, sealed connection into their field equipment.
ENPR1FF5..........Direct PCB-mount, 8-pin through-hole receptable, front coupling nut
