ethernet coaxial extender
for 10/100 networks
EIS-EXTEND-C
The model EIS-EXTEND-C allows your existing coaxial cable to be used to
extend Ethernet connections up to 8530 feet (2,600 M).
Two EIS-EXTEND-C models are required for the Ethernet extension, (one at
each end of your extension points). This product can be used with included
power supply or in a 19 inch rack mount chassis, which can house up to
16 EIS-EXTEND-C units or EIS Media Converters.
• One 10/100Base TX (TX) Ethernet port with RJ-45 connector
• Auto negotiation of speed and duplex mode on TX port
• Auto MDI/MDIX on Ethernet port
• IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX compliant
• Line port uses BNC connector or F-Type connector
• Line port link is full-duplex up to 85Mbps over existing coaxial cable
• One DIP switch for configuring local or remote mode
• Status LED’s for monitoring and connection status
• External AC to DC power adapter included
• Used as a stand-alone device or with a 19 inch rack chassis
• Hot-swappable when used in 19 inch rack chassis
Product FeAtures
orderIng InFormAtIon
Model nuMBer descriPtion
EIS-EXTEND-C
10/100-TX Ethernet Copper Extender w/USA Power
Adaptor
EIS-EXTEND-C-UK
10/100-TX Ethernet Copper Extender w/USA Power
Adaptor
EIS-EXTEND-C-EU
10/100-TX Ethernet Copper Extender w/EU Power
Adaptor

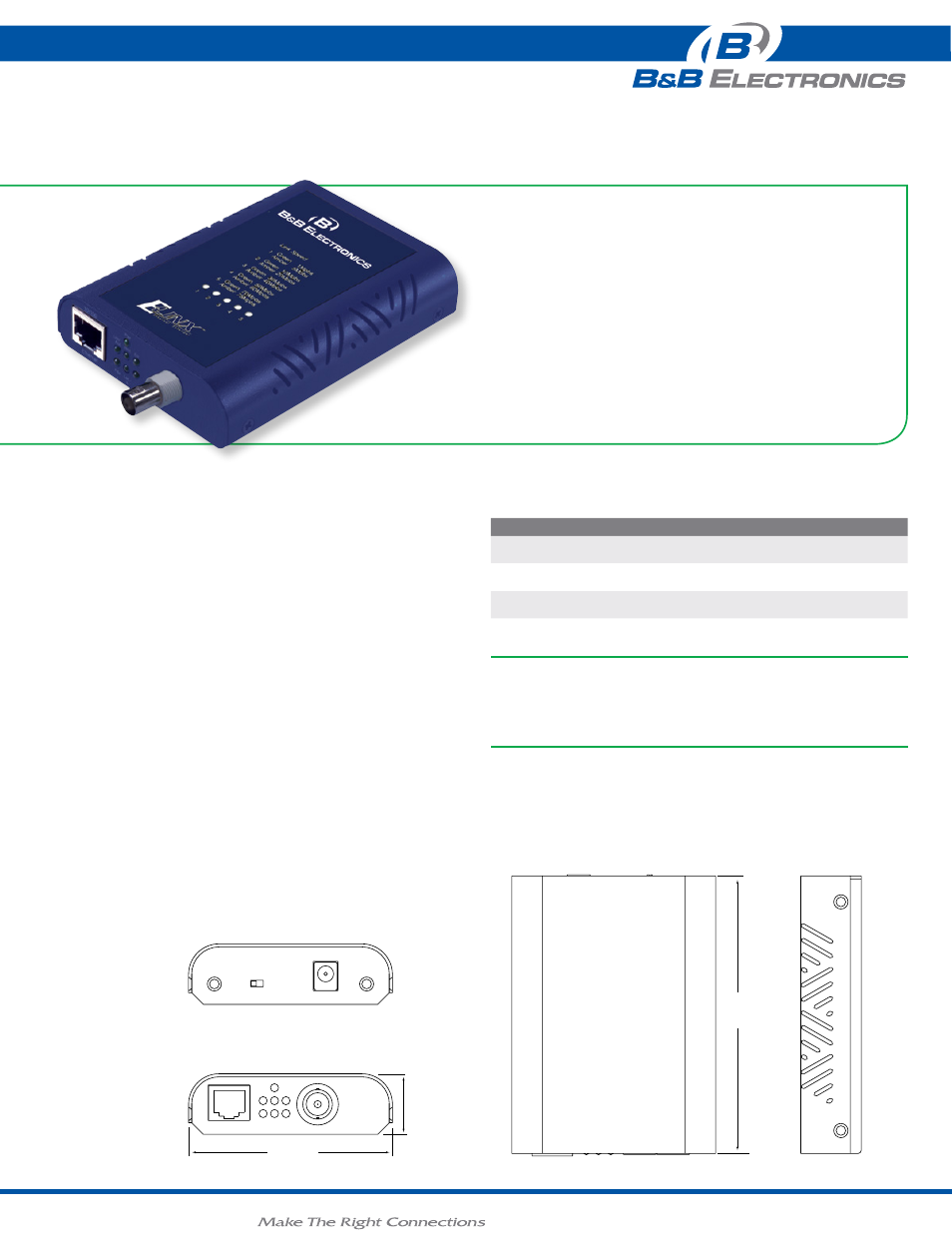

mechAnIcAl dIAgrAm
10.92cm
4.30 in
8.03cm
3.16 in
2.38cm
0.94 in
10.92cm
4.30 in
8.03cm
3.16 in
2.38cm
0.94 in
AccessorIes
EIS-RACK-PS - Power Supply For EIS-Rack-16, 84 Watts
EIS-RACK-16 - Media Converter 19 Inch 2U Rack Chassis - 16 Slots
