Flange Mount A B C F W U S Z H L
AMU1648F 16.05 14.27 8.13 8.11 14.72 16.50 14.25 12.25 12.00 16.75
408 mm 362 mm 207 mm 206 mm 374 mm 419 mm 362 mm 311 mm 305 mm 425 mm
Foot Mount A B C F W U S Z D E M N
AMU1648 16.05 14.27 8.13 8.11 14.72 16.50 14.25 12.25 16.91 11.47 13.50 14.88
408 mm 362 mm 207 mm 206 mm 374 mm 419 mm 362 mm 311 mm 430 mm 291 mm 343 mm 378 mm

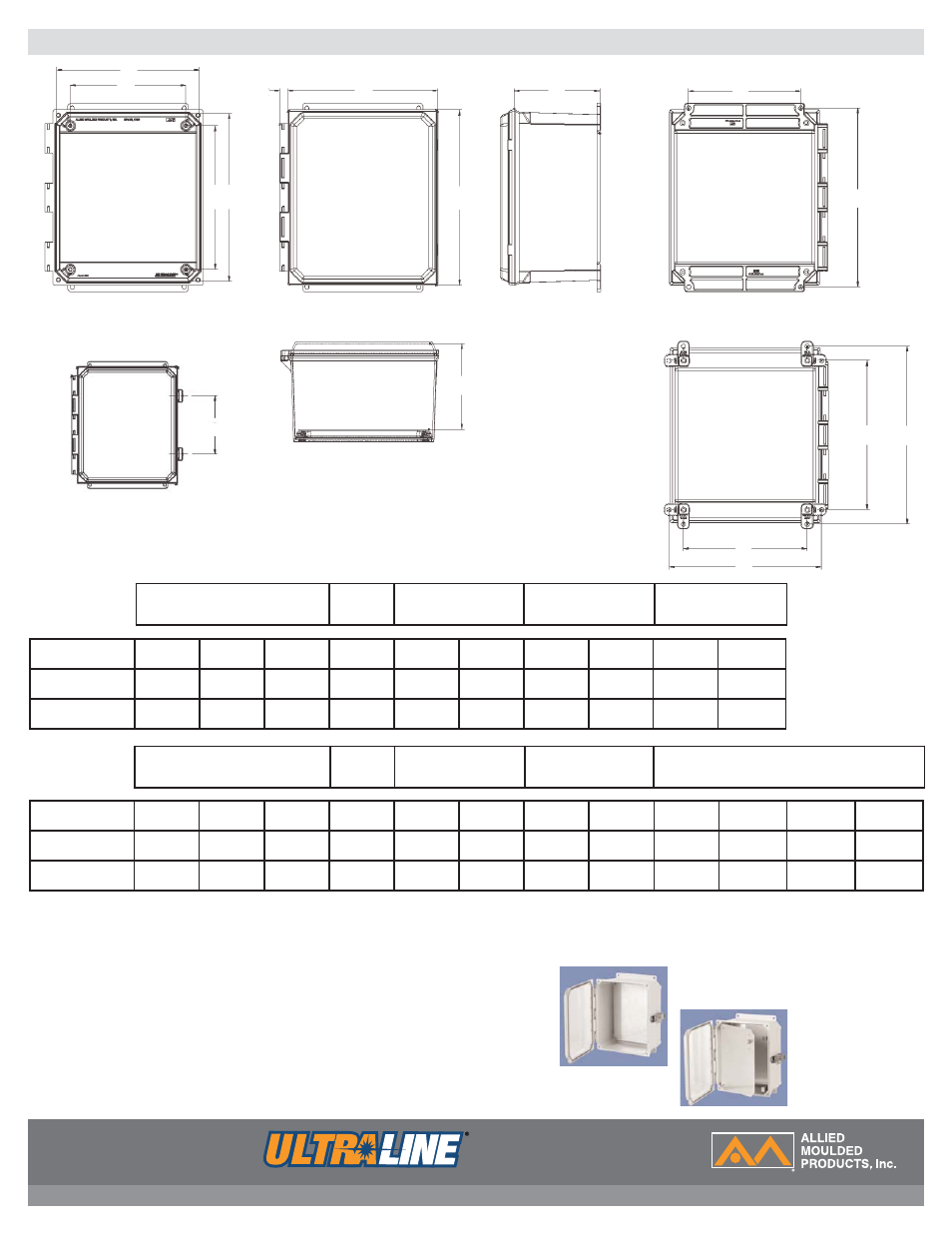

AMU1648, NEMA Type 4X, Fiberglass Reinforced Polyester Enclosure
Flange Mount
Foot Mount
A C C E S S O R I E S A C C E S S O R I E S
• Enclosure back panels
- P164 white painted carbon steel
- PA164 aluminum
- PF164 fiberglass reinforced polyester
• Enclosure hinged dead front panel
- HFPU164 aluminum (field installable kit)
Latch Location
G = 9.00 in (229 mm)
Optional Viewing Window Dimension (Centered in Cover): 10.50 in (267 mm) x 12.38 in (314 mm)
Nominal Wall Thickness - 0.140 in (4 mm)
Enclosure Size
Usable
Depth
Cover Panel Boss Vert. Foot Mount Horiz. Foot Mount
Enclosure Size
Usable
Depth
Cover Panel Boss Flange Mount
UL1648spec307
B
Z
W
A S U
0.562 C H
L
M D
E
N
F
G
