222 North Union Street • Bryan, Ohio 43506
(419) 636-4217 • Fax (419) 636-2450
http://enclosures.alliedmoulded.com

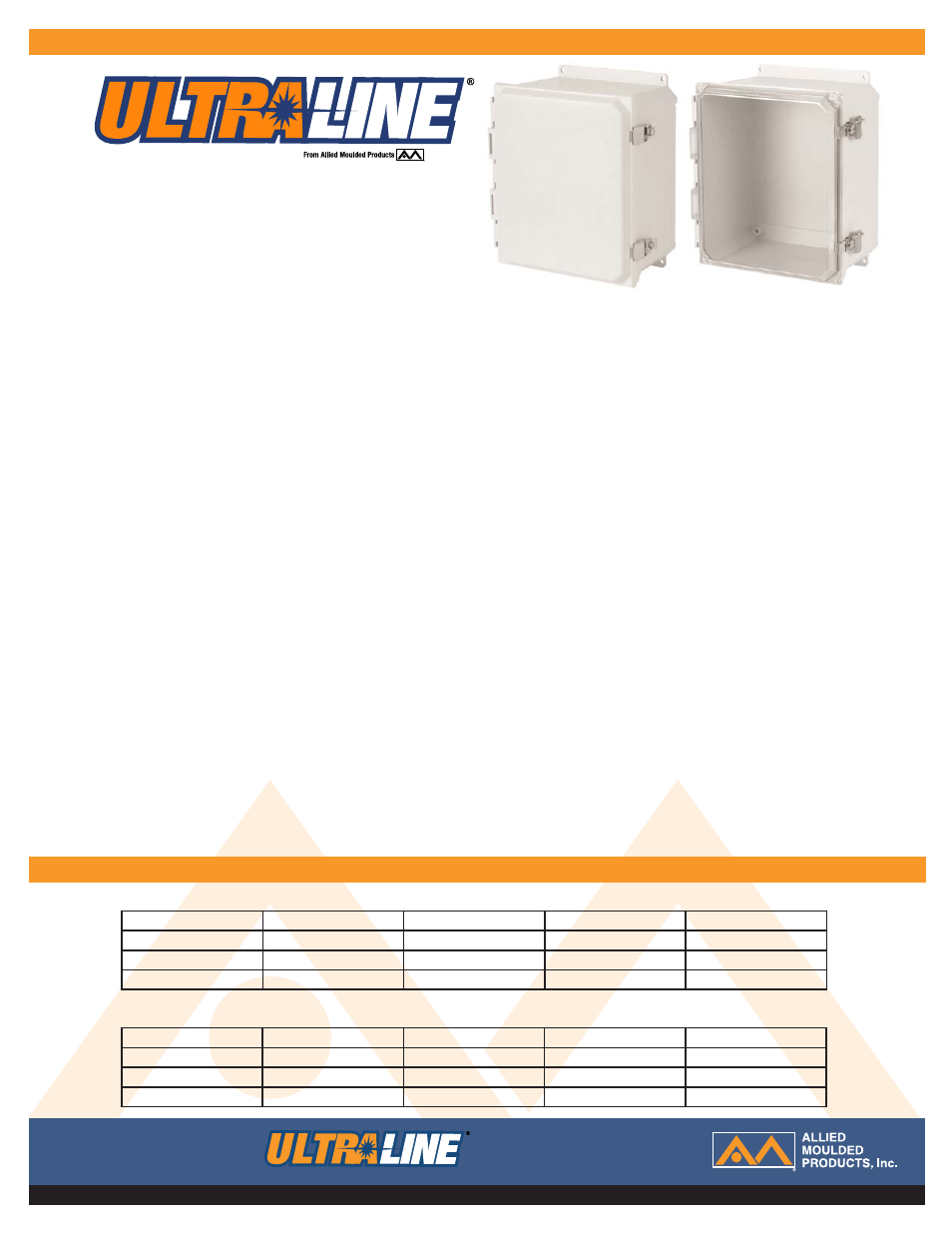

AMU1648, NEMA Type 4X, Fiberglass Reinforced Polyester Enclosure
• Compression molded fiberglass reinforced polyester construction with flush, solid/opaque cover
• Allied Moulded Ultraguard ® fiberglass reinforced polyester material formulation
- UV stabilized for outdoor use
• Light gray color (RAL 7035)
• Clear, polycarbonate instrumentation cover
• 304 stainless steel captive cover screws, lockable latches, and hinge pin
• Partially molded hinge and molded latch keeper
• Gasket made of closed cell neoprene cord encased in a continuous tongue and groove channel
• Polycarbonate flanges (installed) and mounting feet (bagged) with four 304 stainless steel screws
• 10-32 threaded brass inserts are installed for back panel mounting
C O N S T R U C T I O N C O N S T R U C T I O N
A P P L I C A T I O N A P P L I C A T I O N
S T A N D A R D S S T A N D A R D S
• Construction meets NEMA/EEMAC Type 4, 4X, 12 Specifications
• UL ® 508 and UL ® 50 listed, Type 1, 2, 3, 3R, 4, 4X, 12, 13
• CSA certified file LR 89590-1
• Enclosure flammability rating per UL
® 508
• Joint Industrial Council (JIC) enclosure sizing
• Compliant with RoHS directive
16” x 14” x 8” 16” x 14” x 8”
• Designed to insulate and protect controls and components in both indoor and outdoor applications
often found in oil refineries, waste water treatment equipment, and chemical plants
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil, and water
• For use with industrial control equipment in ordinary locations
• Clear/polycarbonate, instrumentation cover used in applications where critical electronic equipment
must be visible and protected from the elements
Screw Cover Hinged Screw Cover Hinged Snap Latch Hinged Twist Latch
Solid/Opaque AMU1648F AMU1648HF AMU1648LF AMU1648TF
Clear Cover AMU1648CCF AMU1648CCHF AMU1648CCLF AMU1648CCTF
View Window AMU1648WF AMU1648HWF AMU1648LWF AMU1648TWF
Screw Cover Hinged Screw Cover Hinged Snap Latch Hinged Twist Latch
Solid/Opaque AMU1648 AMU1648H AMU1648L AMU1648T
Clear Cover AMU1648CC AMU1648CCH AMU1648CCL AMU1648CCT
View Window AMU1648W AMU1648HW AMU1648LW AMU1648TW
• Flange mount enclosures (flanges installed)
• Foot mount enclosures (four feet bagged and shipped inside enclosure)
Ordering Part Numbers
