1
About the Giga-MiniMc
The Giga-MiniMc is a 10/100/1000 Auto Negotiating, switching miniature media
converter. The fiber port available in one pair of SC fiber connectors and/or an
SFP port which can support any fiber type; dual strand available in LC
connectors, and single strand fiber SFPs available in SC connectors. The Giga-
MiniMc always operates at 1000 Mbps FDX; the copper port Auto Negotiates the
connected device’s speed and duplex mode: 10 Mbps, 100 Mbps or 1000 Mbps,
and HDX or FDX (including Flow Control).
The Giga-MiniMc TX/SFP requires a *Gigabit SFP, with or without DDMI. (sold
separately through B&B Electronics). SFPs must be MSA-compliant and meet the
Class 1 Laser Safety Standard.
The Giga-MiniMc offers plug-and-play operation, including the AutoCross
feature which automatically selects between a crossover work-station or pass-
through connection depending on the connected device.
*SFP’s have a 1 year warranty
Installing the Giga-MiniMc
The Giga-MiniMc installs in an B&B Electronics PowerTray/18 or can be used as a
standalone media converter. As a standalone, the Giga-MiniMc/SFP uses a
universal external switching power cube with 100 – 240 ±10% VAC input and 5
VDC output.
Powering the Giga-MiniMc
The Giga-MiniMc includes multiple powering options:
A country-specific, high-reliability AC power adapter (included)
IE-PowerTray/18 for Rack Mounting
LED Operation

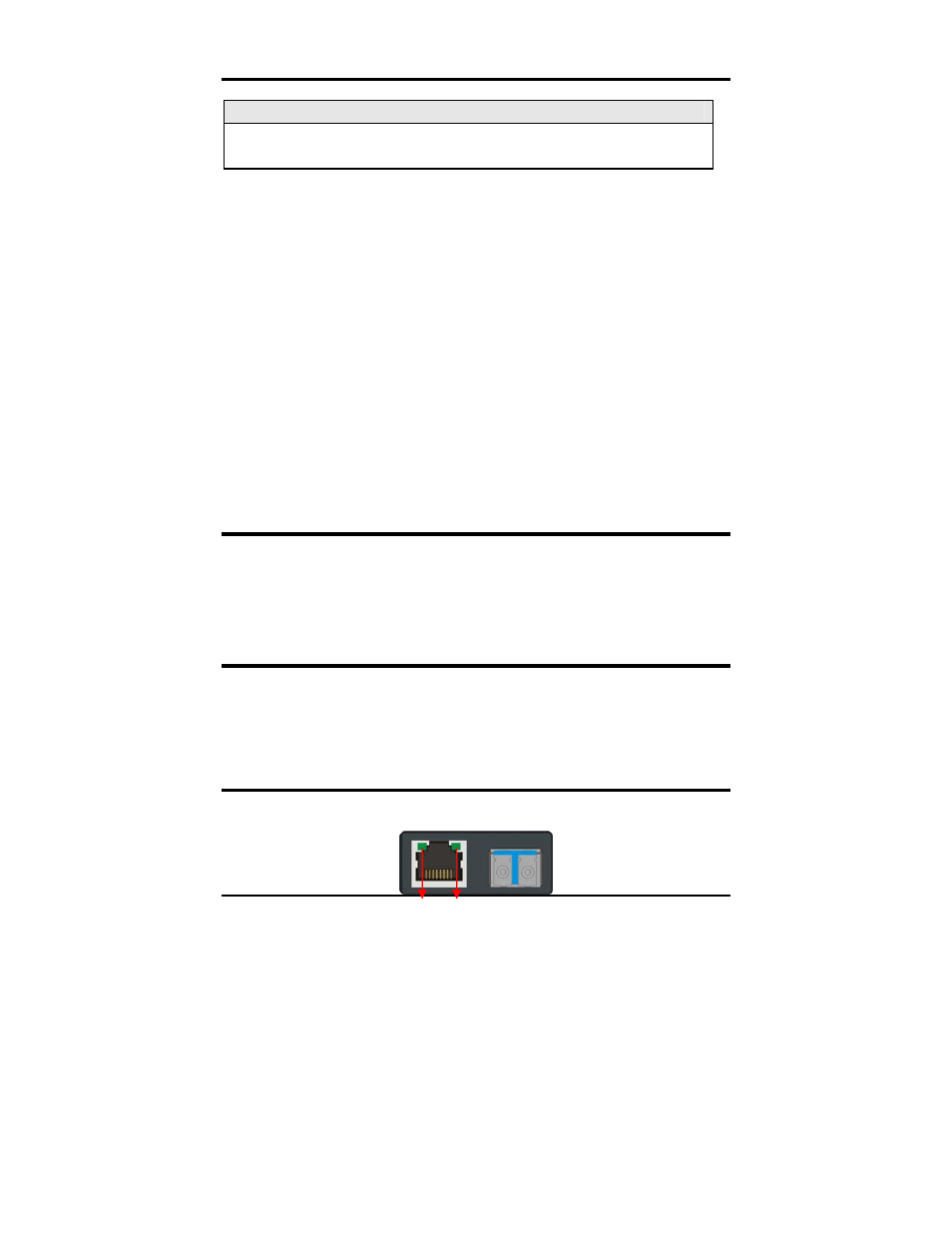

Each Giga-MiniMc includes two LEDs, located on the RJ-45 connector.
NOTE
Unless noted otherwise, all reference to the Giga-MiniMc in this manual are also
applicable to the Giga-MiniMc TX/SFP.
