modular, managed Four E1
plus data Extension over Fiber
IE-iMcV-E1-Mux/4+Ethernet (Enhanced)
(dimensions in inches)

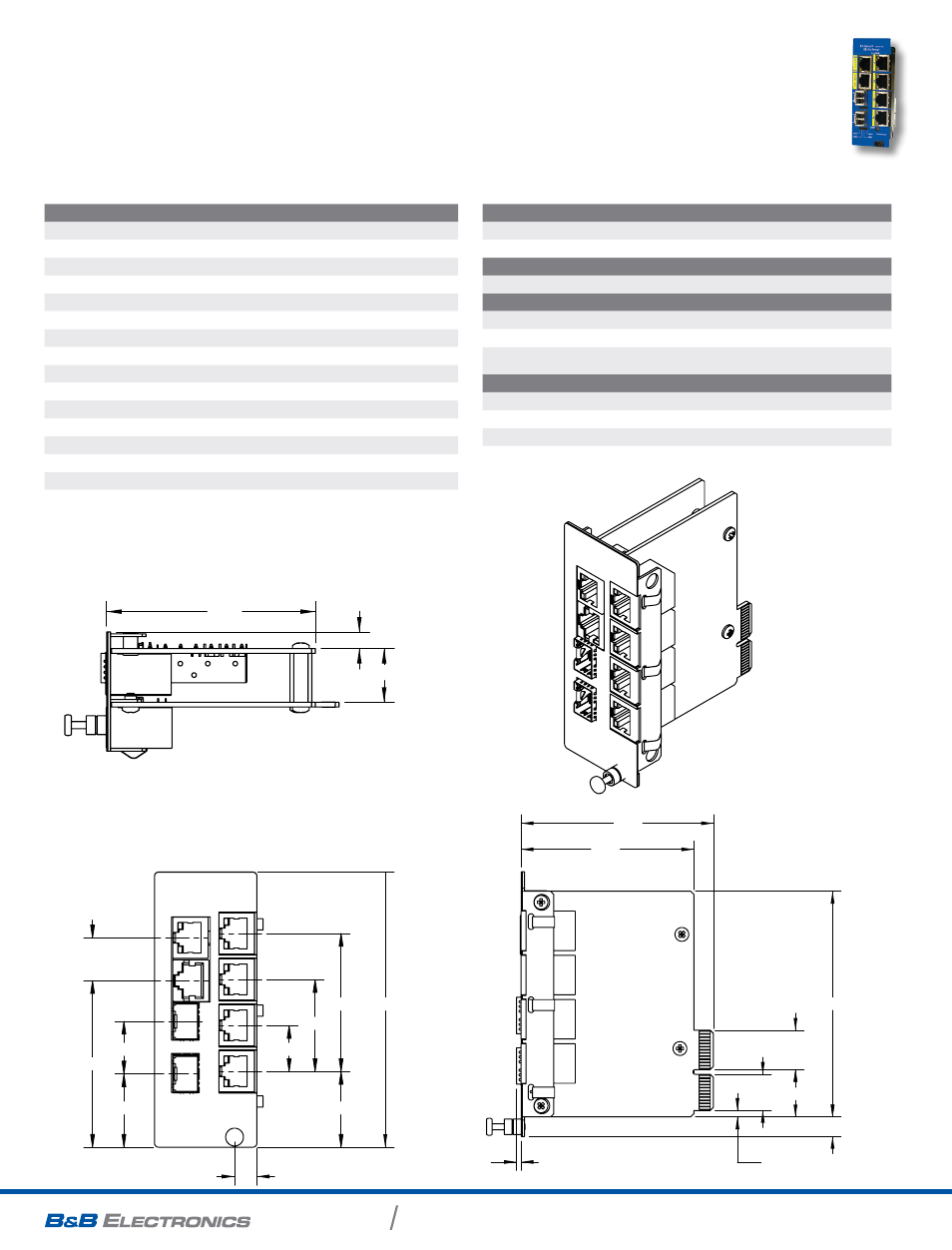

mEchanIcal dIagram
SpecificationS
Technical
2 x MSA compliant optical SFP slots
4 x E1 (RJ-48) copper ports
Local RS-232 Console port
RS-232 transparent to 120 Kbps
IEEE 802.3x Flow Control
IEEE 802.3i 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3u 100Base-FX or SX fiber
ITU G.775
GR-820-CORE
Supports over-sized packets up to 1916 bytes per packet
Configurable as Host/ Remote pairs (DIP Switch selection)
SNMP management via GUI-based iView2 application software
10/100BaseT Full Bandwidth (144,800 fps/FDX)
RoHS compliant
Last Gasp Trap
Mechanical
Dimensions
Double-wide chassis module
Shipping Weight
1.1 lbs. (0.50 kg)
Power consuMPtion
0.96A @ +5 VDC
environMental
Operating Temperature:
-40°F to 158°F (-40°C to +70°C)
Storage Temperature:
-40°F to 158°F (-40°C to +70°C)
Operating Humidity
5% to 95% (non-condensing),
0 – 10,000 ft. altitude
regulatory aPProvals
IEEE-802.3u
ITU G.775 (AIS, LOS)
GR-820-CORE
