modular, managed Four E1
plus data Extension over Fiber

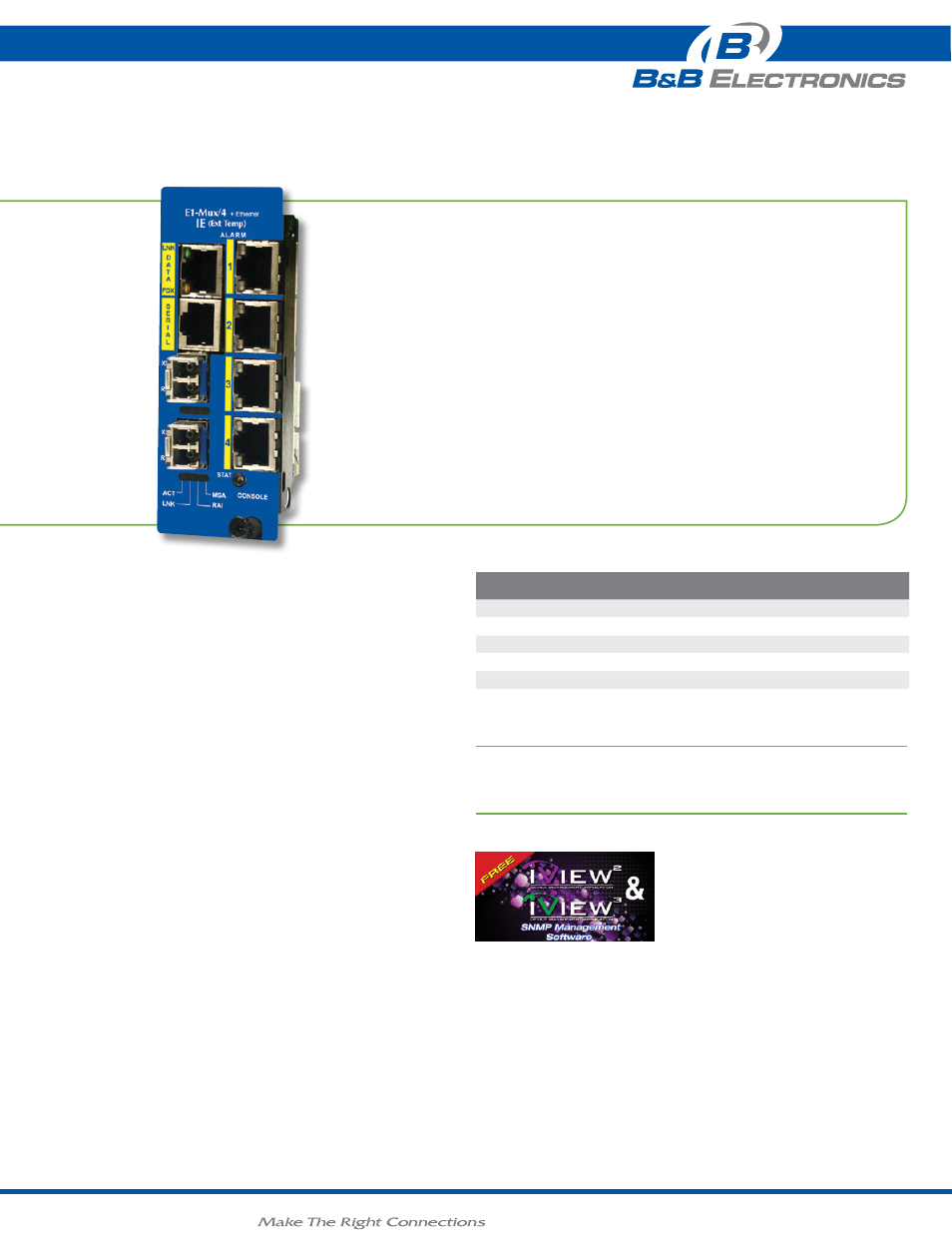

IE-iMcV-E1-Mux/4+Ethernet (Enhanced)
• Four independent E1 ports on RJ-48 connectors with surge protection
• AIS generation on signal loss on all E1 and fiber interfaces
• Supports local and remote loopback functions
• Supports the Link Fault Pass-Through Function (LFPT)
• Dual SFP fiber ports with 1+1 protection switching
• One RS-232 interface to support low speed data up to 120 kbps via
MiniJack adapter
• Both Host/Remote are managed from the Host unit
• Command Line Interface (CLI) management provided via one MiniJack
RS-232 console port
• Remote Graphical User Interface (GUI) management through a managed
iMediaChassis
• SNMP Alarm TRAP reporting in managed chassis, including Last Gasp
• Full LED diagnostics on front panel
product FEaturEs
The IE-iMcV-E1-Mux/4 is a managed modular media converter,
installed as a Host/Remote pair, that transports four independent E1
lines over a single or dual fiber optic line plus one 10/100 ethernet
port. The module is ideal for applications requiring TDM extension,
such as remote office PABX connectivity, with support for a full
bandwidth 10/100BaseT Ethernet connection over the same optical link.
The IE-iMcV-E1-Mux/4 allows for Bandwidth Limiting control in 32
Kbps increments up to 100 Mbps. It also detects Ethernet, AIS, E1 and
fiber LOS events as well as degraded lines with full LED indications
including a Remote Alarm Indicator (RAI) over the fiber link. E1
ports can also be enabled or disabled via the CLI, Telnet or SNMP
management software, allowing the user to perform maintenance on a
particular line without affecting others.
Fiber redundancy (1+1) on removable SFP modules offers the
enhanced reliability of a protected fiber link while supporting the
complete range of optical types and distances. The 1+1 protection
system automatically switches to the best fiber line within 50
milliseconds, should one line become impaired or fail.
The module also features an independent serial link (RS-232) which
is carried over the same fiber link(s), and can be used for transporting
serial traffic from other equipment located at the remote point of
presence (POP) back to the central office. The RS-232 console port is
useful for local monitoring and configuration of the unit by technical
support personnel.
ordErIng InFormatIon
Model
nuMBer
FiBer FiBer
Ports range
e
Ports
ethernet
Port
rs-232 rs-232
MiniJaCk
* iMcv-e1-Mux/4+ethernet (enhanced)
857-18111
SFP 1 or 2 Various 4 - RJ48 1 - RJ45 1 - RJ45 1
* iMcv-e1-Mux/4+ethernet
857-14400
SFP 1 or 2 Various 4 - RJ48 1 - RJ45 1 - RJ45 1
* ie-iMcv-e1-Mux/4+ethernet
857-18400
SFP 1 or 2 Various 4 - RJ48 1 - RJ45 1 - RJ45 1
* SFPs Sold Separately
accEssorIEs
825-39951 - Serial Cable, MiniJack to DB9 (female)
iView: Windows 2000/XP/Vista/Win7
IE-iMcV-E1-Mux/E+Ethernet Enhanced_3713ds
