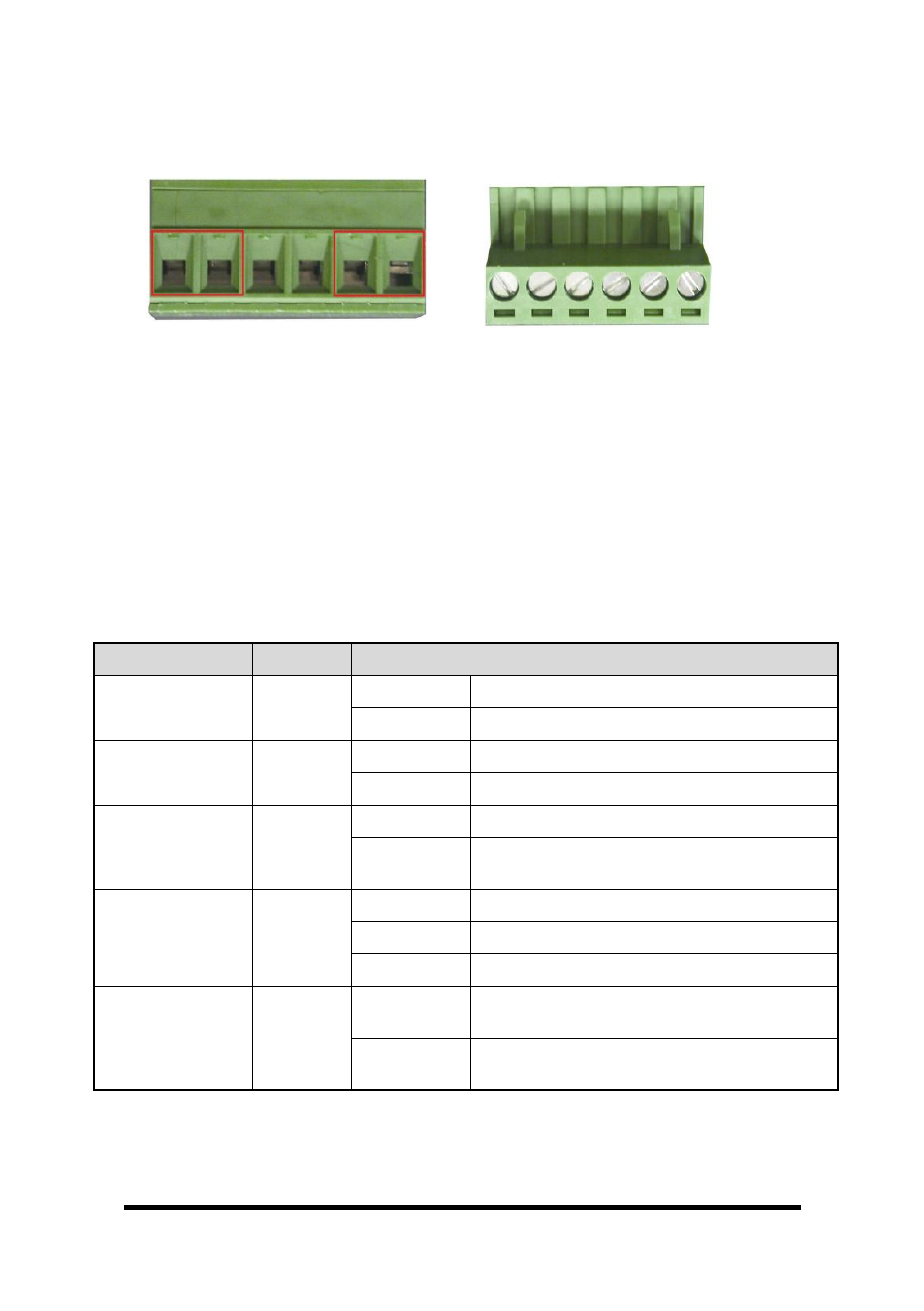

Wiring the Power Inputs
Note: Terminal blocks are rated for 12-24 AWG wire
LED Indicators
The LED indicators located on the front panel display the power and
network status of the Industrial switch. Refer to the chart below for LED
description and operation.
V- V+ V- V+
LED Color Description
P1 Green
On Power input 1 is active
Off Power input 1 is inactive
P2 Green
On Power input 2 is active
Off Power input 2 is inactive
Fault Red
On Power input 1 or 2 is inactive
Off
Power input 1 and 2 are both
functional, or no power inputs
1 ~ 8
(Upper LED)
Green
On Connected to network
Flashing Networking is active
Off Not connected to network
1 ~ 8
(Lower LED)
Green
On
Connected to network at speed of
1000Mbps
Off
Not connected to network or not
working at speed of 1000Mbps
