Hardware Description

The following information is an introduction to the Gigabit Industrial
Ethernet Switch dimensions, ports, cabling information, and wiring
installation.

Dimensions

The dimensions of the industrial switch are 30 x 140 x 95 mm (W x H x D).

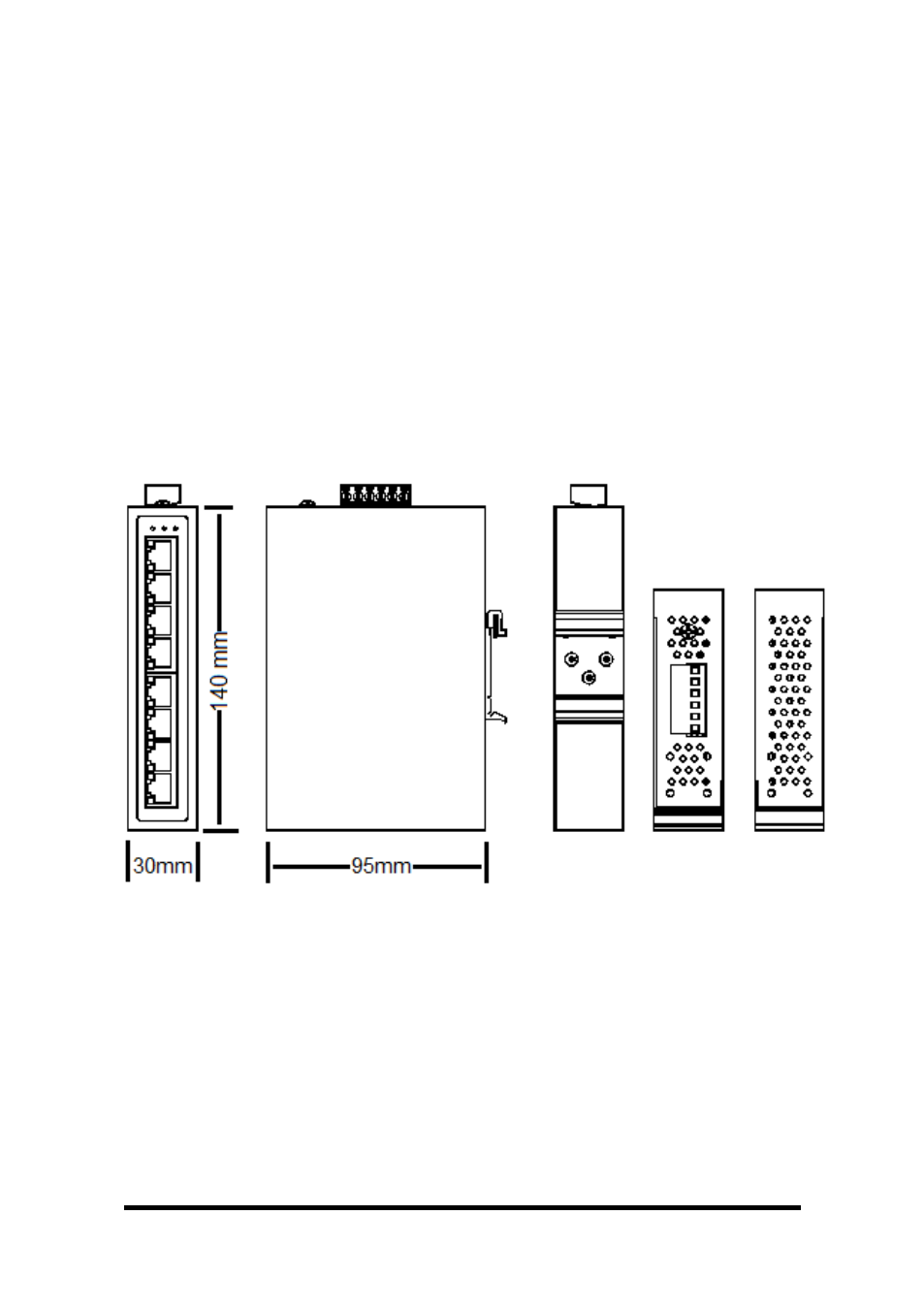

The figure below gives the dimensions and views of each side of the 8-port
10/100/1000Base-T Industrial Ethernet switch.
