Operation
Refer to the product manual for detailed operating instructions.
The Master port is a DB25 female connector configured as DCE. This provides a direct connection
to an IBM PC compatible or other DTE device. When connecting the Master port to a MODEM, the
Master Port of another 232BSS4, or other device configured as DCE, a null MODEM adapter is
needed.
The Slave Ports are DB9 Male connectors configured as DTE for direct connection to a MODEM or
other DCE device. When connecting the Slave ports to a PC compatible or other DTE device, a null
modem adapter is needed.

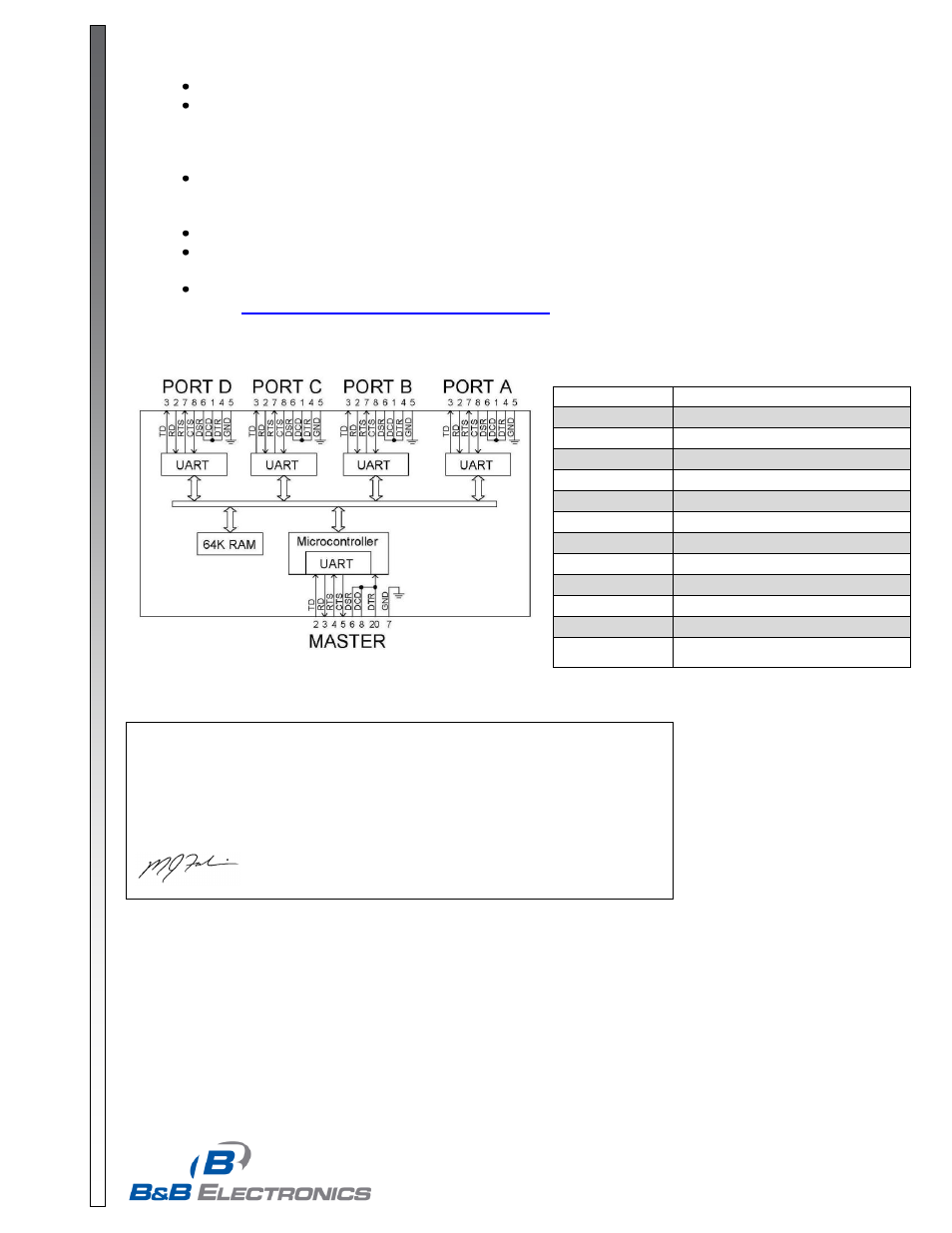

The illustration below gives full pin-outs. Only pins 2 and 3 are required for basic operation.
Data Format: 7 or 8 data bits, even, odd, or no parity (Master does not support 7 data bits with no
parity), 1 Stop Bit (fixed).
For more information regarding DTE and DCE connections and the RS-232 standard in general,
vi
General Specifications
Power
Positive 10 to 15 VDC / 60 mA
Op Temp
32 to 158 °F (0 to 70°C)
Op Humidity
0 to 95% Non-condensing
Power Conn
2.5 mm phone jack (positive tip)
Master Port Conn
DB25 Female (DCE)
Slave Port Conn
DB9 Male (DTE)
Interface
RS-232 asynchronous
Data Rate
1200 to 115.2 kbps
Flow Control
Hardware (RTS/CTS) or None
Dimensions
7.5 x 4.6 x 1.2 in (19.0 x 11.7 x 3.0 cm)
MTBF
330865 hours
Approvals
CE, FCC
Software
Compatibility
Windows 98, ME, 2K, XP, Vista
CE Declaration of Conformity
Manufacturer’s Name:
B&B Electronics Manufacturing Company
Manufacturer’s Address:
PO Box 1040
707 Dayton Road
Ottawa, IL 61350 USA
Model Number:
232BSS4
Description:
Four Port Buffered Smart Switch
Type:
Light Industrial ITE Equipment
Application of Council Directive:
89/336/EEC
Standards:
EN55022
EN 61000-6-1
EN 61000 (-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11)
Michael J. Fahrion, Director of Engineering
