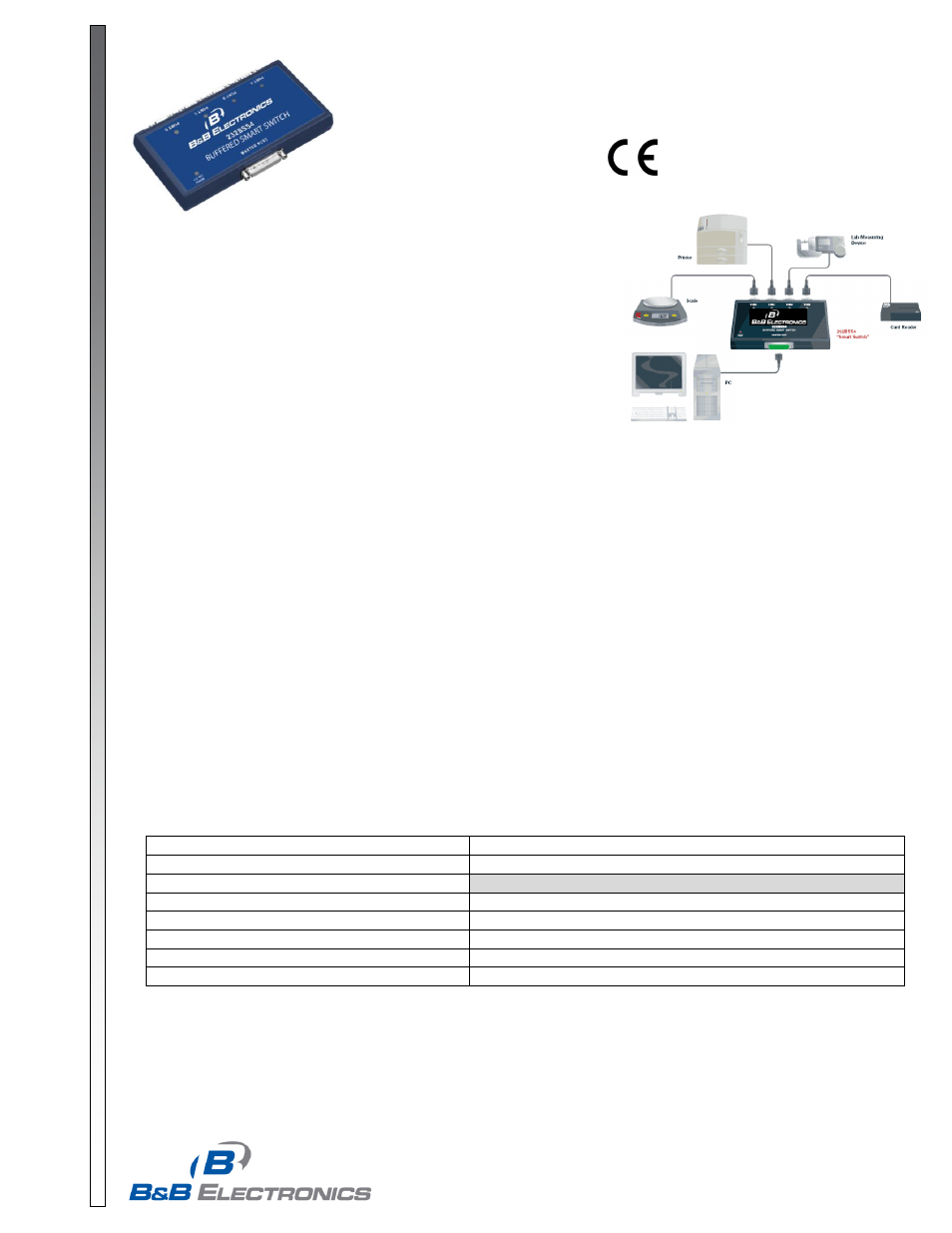

Model: 232BSS4
Four Port Buffered Smart Switch
Features
 Communicate with four devices from one serial port
 8 KB transmit and receive buffer
 Each port can be independently configured
 RS-232 Data Rates up to 115.2 kbps
 Setup Software for Windows 98, ME, 2000, XP, and Vista
Functional Description
Our most intelligent and versatile switch, the 232BSS4 provides communication to four devices from one
serial port. Each port contains a dedicated UART and an 8K byte transmit and receive buffer, allowing each
ports data rate, data format, and protocol to be configured independently. The Master port can send and
receive data from one Slave port while the other Slave ports continue to buffer data. The Master can also
broadcast the same message to two or more Slave ports at once. The switch can also be configured to
send data automatically to the Master port from each of the Slave ports when data is present with an
optional preamble identifying the port. It can also provide two-way communications between the Master port
and one Slave port at a time. Switching and control is accomplished through user defined three or four
character command strings. These control sequences are stripped from the data stream, making the switch
transparent to the Slave devices. Switches can be cascaded to expand the 232BSS4 to more than four
ports. Two units can also be used back-to-back to provide automatic connection between devices over a
single data channel. LEDs indicate when the unit is powered up and which port is selected to send data to
the Master port. Setup software is provided on CD and is compatible with Windows 98, ME, 2000, XP, and
Vista. A 12VDC power supply with a 2.5mm (positive tip) phone jack is required (sold separately).
Ordering Information
Model Number Description
232BSS4 Four Port Buffered Smart Switch
Accessory Items
232PS 12 VDC power supply, wall transformer
232DTE DB25 M/F DCE to DTE port reverser (null-modem adapter)
232NM9MF6 DB9 null-modem cable, male / female, 6 foot
232AMF5 DB25 cable, male / female, 6 foot
9PAMF6 DB9 cable, male / female, 6 foot
