5675 Hudson Industrial Parkway Hudson, OH 44236
1.800.553.1170 www.quatech.com

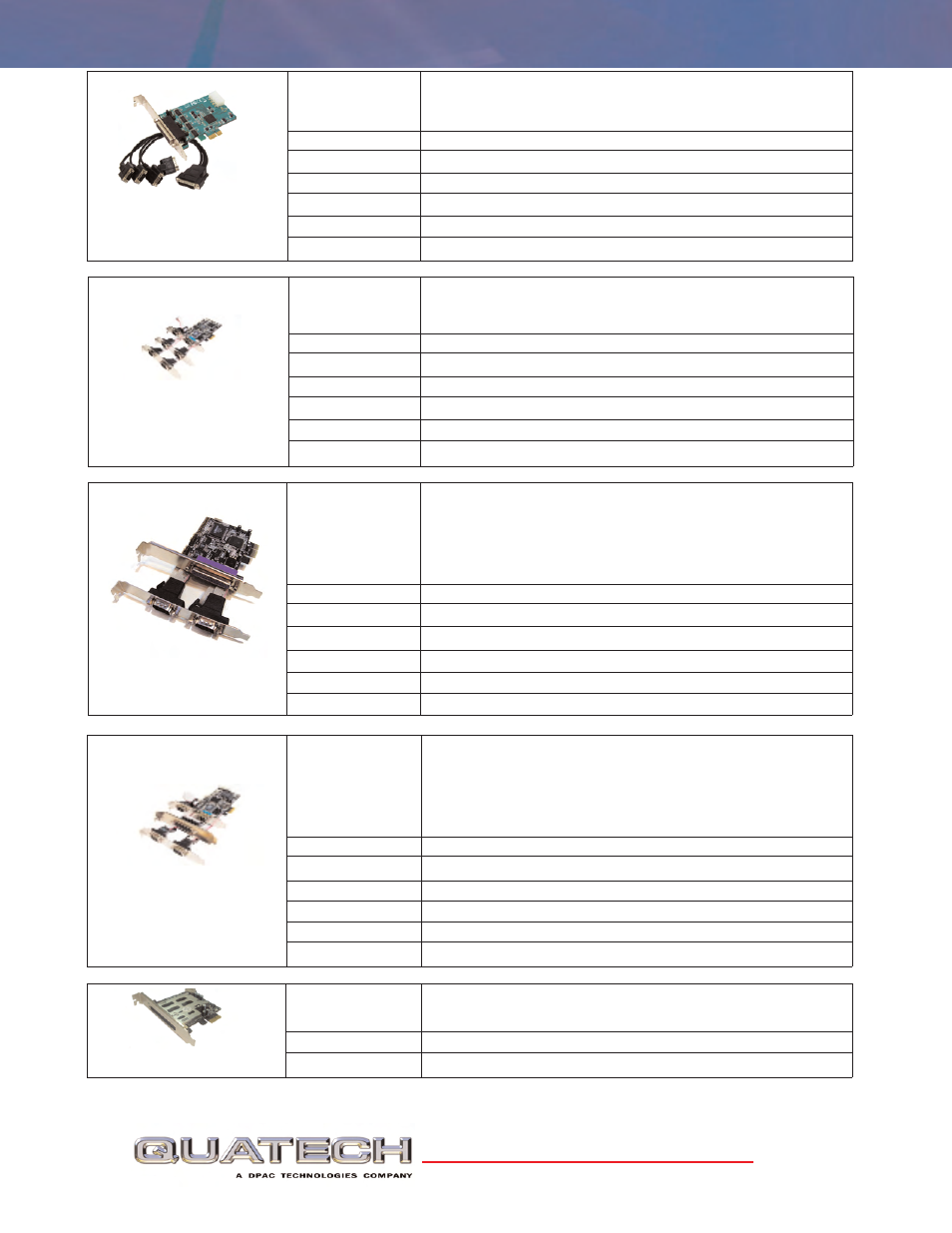

Features * Compliant with PCI Express Base Specification 1.0a
* Built-in 16550 compatible UART with 256-byte transmit-receive FIFO
* Data transfer rate up to 115200bps
Interface RS-232
Machine Compatibility Full Height Systems, low profile orb included
Bus
PCI-Express X1
Connectors 4 DB-9 serial, requires single PC bracket slot
OS Compatibility Windows 2000/XP/Server 2003/Vista/Win7
Warranty 1 year
Features * Compliant with PCI Express Base Specification 1.0a
* Built-in 16C550 compatible UART with 16 byte transmit-receive FIFO
* Data transfer rate up to 115200bps
Interface RS-232
Machine Compatibility Full Height Systems
Bus
PCI-Express X1
Connectors 4 DB-9 serial, requires 2 PC bracket slots
OS Compatibility Windows 2000/XP/Server 2003/Vista/Win7
Warranty 1 year
QS-PCIE-100
HS-PCIE-100
Features * Compliant with PCI Express Base Specification 1.0a
* Supports Standard Parallel Port(SPP),
Enhanced Parallel Port(EPP) & Enhanced Capability Port(ECP)
* Parallel data transfer rate up to 1.5MB/sec
* Supports 4 x 16550 fast UART serial port
* Serial data transfer rate up to 115200bps
Interface RS-232/EPP Parallel
Machine Compatibility Full Height Systems
Bus
PCI-Express X1
Connectors 1 x DB-25 parallel, 4 x DB-9 serial, requires 3 PC bracket slots
OS Compatibility Windows 2000/XP/Server 2003/Vista/Win7
Warranty 1 year
QSSP-PCIE-100
Features * Compliant with PCI Express Base Specification 1.0a
* Supports Standard Parallel Port(SPP),
Enhanced Parallel Port(EPP) & Enhanced Capability Port(ECP)
* Parallel data transfer rate up to 1.5MB/sec
* Supports 2 x 16550 fast UART serial port
* Serial data transfer rate up to 115200bps
Interface RS-232/EPP Parallel
Machine Compatibility Full Height Systems
Bus PCI-Express X1
Connectors 1 x DB-25 parallel, 4 x DB-9 serial, requires 3 PC bracket slots
OS Compatibility Windows 2000/XP/Server 2003/Vista/Win7
Warranty 1 year
DSSP-PCIE-100
Features * Compliant with PCI Express Base Specification 1.0a
* Supports ExpressCard (34/54 Form Factor Module)
OS Compatibility Windows 2000/XP/Server 2003/Vista/Win7
Warranty 1 year
XCD-B/PCIE-ST
© 2011 Quatech, Inc. Rev. B 6/2011
