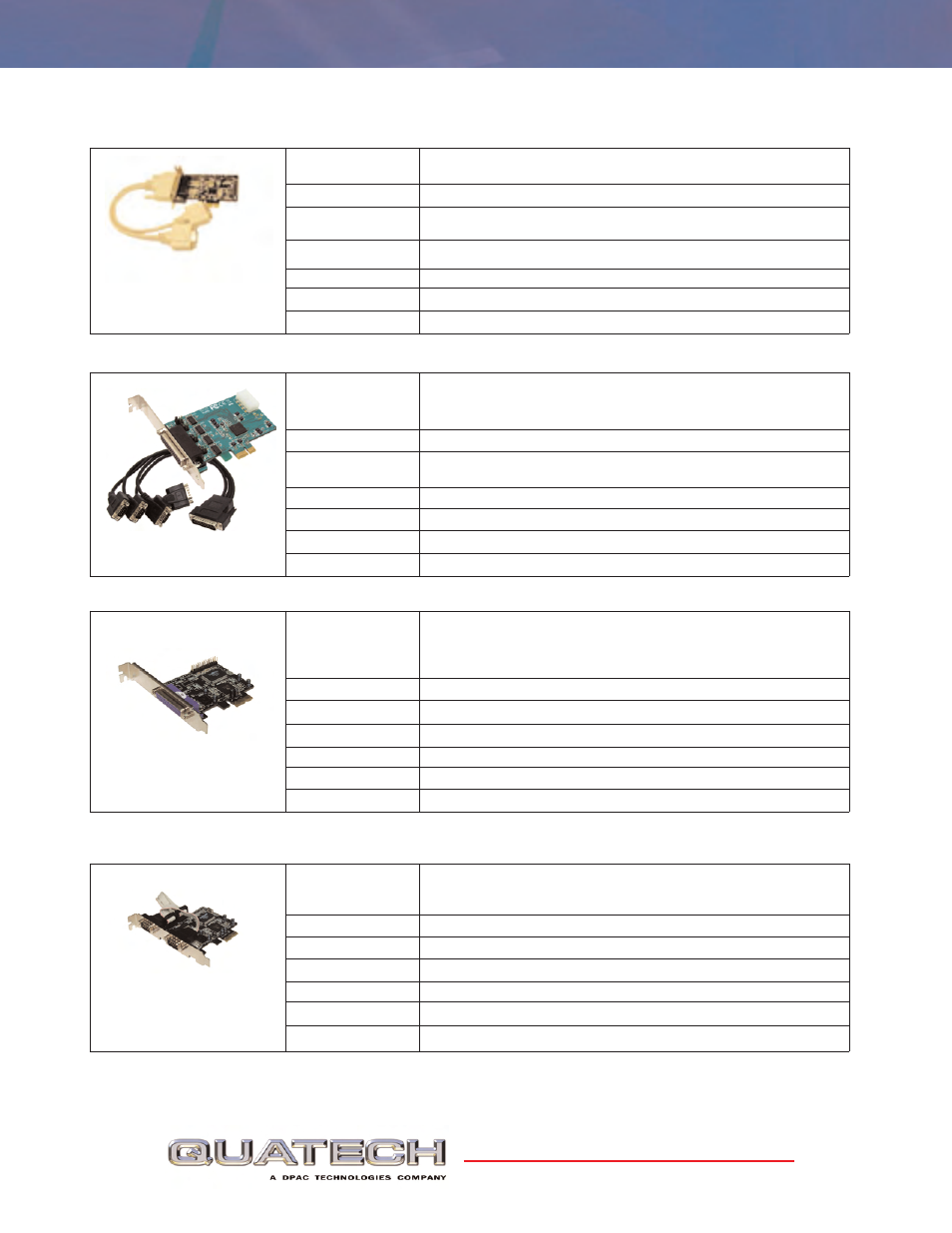

Specifications
Features * Compliant with PCI Express Base Specification 1.0a
* Supports Standard Parallel Port(SPP), Enhanced
Parallel Port(EPP) & Enhanced Capability Port(ECP)
* Data transfer rate up to 1.5MB/Sec
Interface EPP Parallel
Machine Compatibility Full Height Systems
Bus PCI-Express X1
Connectors 2 x DB-25 pins parallel, requires 2 PC bracket slots
OS Compatibility Windows 2000/XP/Server 2003/Vista/Win7
Warranty 1 year
Features * Compliant with PCI Express Base Specification 1.0a
* Built-in 16C550 compatible UART with 16 byte transmit-receive FIFO
* Data transfer rate up to 115200bps
Interface RS-232
Machine Compatibility Full Height Systems
Bus PCI-Express X1
Connectors 2 DB-9 serial on orb brcket, requires only one PC bracket slot
OS Compatibility Windows 2000/XP/Server 2003/Vista/Win7
Warranty 1 year
Features * Compliant with PCI Express Base Specification 1.0a
* Data transfer rate up to 115200bps
Interface RS-232
Machine Compatibility Low Profile systems, standard height configuration with low
profile orb installed
Bus PCI-Express X1
Connectors 2 DB-9 serial fan out cable, requires only one PC bracket slot
OS Compatibility Windows 2000/XP/Server 2003/Vista/Win7
Warranty 1 year
Features * Compliant with PCI Express Base Specification 1.0a
* Built-in 16550 compatible UART with 256-byte transmit-receive FIFO
* Data transfer rate up to 115200bps
Interface RS-232
Machine Compatibility
Low Profile systems, standard configuration with low profile orb installed.
Full height orb included.
Bus PCI-Express X1
Connectors 4 DB-9 serial fan out cable, requires single PC bracket slot
OS Compatibility Windows 2000/XP/2003/Vista/Win7 (32/64-bit)
Warranty 1 year
DP-PCIE-100
DSLP-PCIE-100
QSLP-PCIE-100
DS-PCIE-100
