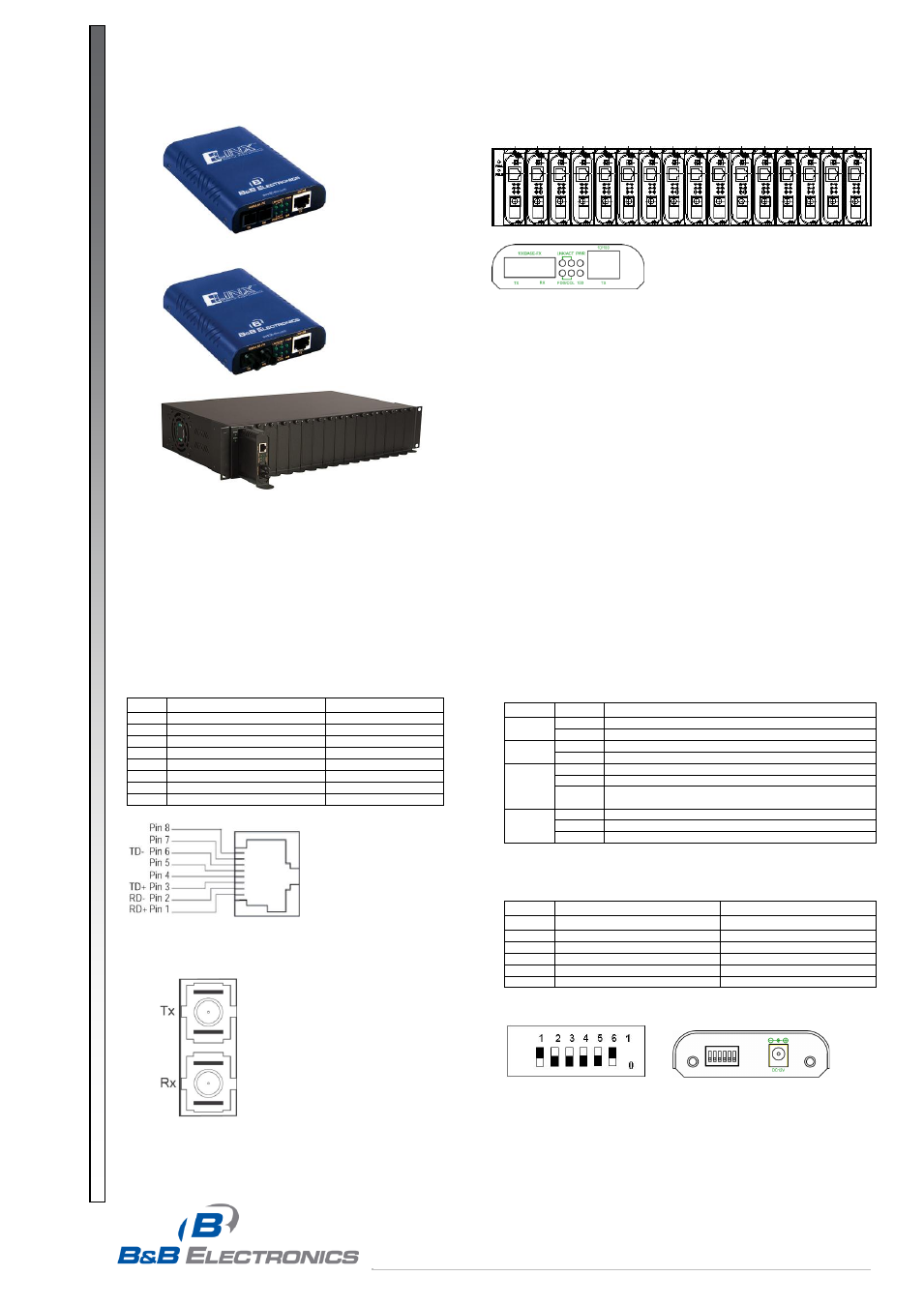

Ethernet Media Converter
& Rack Chassis




























100BaseFX Connections:


The Tx (transmit) port of device 1
is connected to the Rx (receive)
port of device 2, and the Rx
(receive) port of device 1 to the Tx
(transmit) port of device 2.






Description

The media converter provides one channel for media conversion
between 10/100BaseTX and 100BaseFX. It can be used as a stand-
alone device or with a standard 19 inch chassis as shown below.

Features

 One-channel media conversion: 10/100BaseTX & 100BaseFX
 Fiber media:

Multi-mode fiber using SC or ST connectors
Single-mode fiber using SC connectors

 Auto negotiation of speed and duplex mode on TX port
 Auto MDIX on TX port
 DIP switch configuration for:
Link-fault-pass-through
Fixed speed
Half/full duplex
 Store-and-forward mechanism
 Non-blocking full wire-speed forwarding rate
 Supports broadcast storm filtering
 Back-pressure & IEEE802.3x compliant flow control

Front panel status LEDs

 External AC to DC power adapter (included)
 Used as a stand-alone device or with a chassis
 Hot-swappable when used with a chassis

10/100BaseTX and 100BaseFX Connectors

10/100BaseTX Connections:

Pin Regular Ports

Uplink Port

1

Receive Data + (input)

Transmit Data + (output)

2

Receive Data

– (input)

Transmit Data

– (output)

3

Transmit Data + (output)

Receive Data + (input)

4

NC

NC

5

NC

NC

6

Transmit Data

– (output)

Receive Data

– (input)

7

NC

NC

8

NC

NC

LED’s and DIP Switch

LED Status:

LEDs

State

Indication

PWR

Steady

Power on (PWR stands for POWER)

Off

Power off

100

Steady

100Mbps network connection

Off

10Mbps network connection

LNK/ACT

Steady

Network connection established(LNK stands for LINK)

Flashing

Transmitting or receiving data(ACT stands for ACTIVITY)

Off

Neither a network connection established nor
transmitting/receiving data

FDX/COL Steady

Connection in full duplex mode(FDX stands for FULL-DUPLEX)

Flashing

Collision occurred(COL stands for COLLISION)

Off

Connection in half-duplex mode

DIP Switch Settings:

Pos.

DOWN (0)

UP (1)

1

Enable Link-fault-pass-through

Disable Link-fault-pass-through

2

RJ45 Auto Negotiation Enabled

RJ45 Forced Mode

3

RJ45 Forced to 100Mbps

RJ45 Forced to 10Mbps

4

RJ45 Forced to Full Duplex

RJ45 Forced to Half Duplex

5

Fiber Forced to Full Duplex

Fiber Forced to Half Duplex

6



This quick installation guide describes how to install and
use the Ethernet Media Converter and optional Rack
Chassis.
