modular 4 channel cwdm
multiplexer/demultiplexer
IE-iMcV-MuxDemux/4
SpecificationS
Technical
1310nm expansion port
Low insertion loss
Speed-independent
Protocol-independent; complies with a wide range of communications protocols
including Ethernet (10, 100, 1000 Mbps or 10 Gigabit), SONET/SDH (OC-3, OC-12
OC-48), FDDI, ATM, ESCON, T1/E1, E3, DS3 and FibreChannel
Supports GUI-Based iView²
Connectors: LC
Supports Half- and Full-Duplex operation
inserTion loss:
Expansion to network: 3 dB
Port to network: 2.5 dB
Mechanical
Dimensions
Dual-wide, two slot chassis module
Shipping Weight WDM/2 Chassis
0.9 lbs (0.34 kg)
environMental
Operating Temperature
-40°F to +185°F (-40°C to +85°C)
Storage Temperature:
-40°F to +185°F (-40°C to +85°C)
Operating Humidity
5% to 95% (non-condensing)
(dimensions in inches)

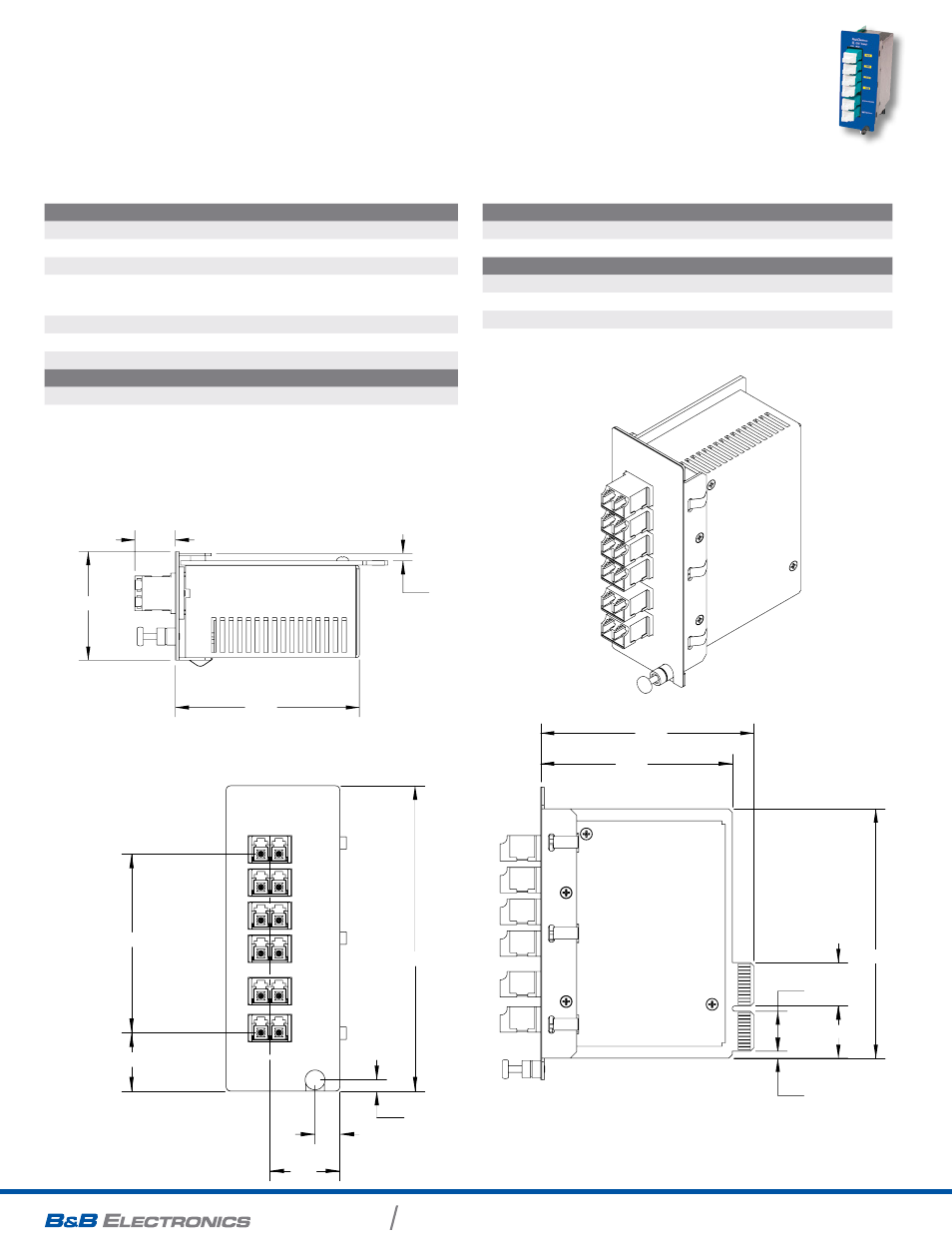

mEchanIcal dIagram
.58
2.65
.11
1.56
.34
.15
4.19
.80
5 EQ SP @ .51 = 2.45
.96
.10
.57
.75
.62
3.57
2.75
3.06
