modular 4 channel cwdm
multiplexer/demultiplexer
IE-iMcV-MuxDemux/4
Coarse Wavelength Division Multiplexing (CWDM) is a technology
that enables the transmission of multiple optical signals on different
wavelengths over one strand of fiber. Suited for installations where
fiber is limited in terms of availability, service providers and enterprise
network managers can easily multiply their fiber capacity without
incurring the costs associated with installing new fiber. For customers
deploying high-end gigabit switches, the IE-iMcV-MuxDeMux/4 is ideal
for supplying the growing need for greater bandwidth over fiber.

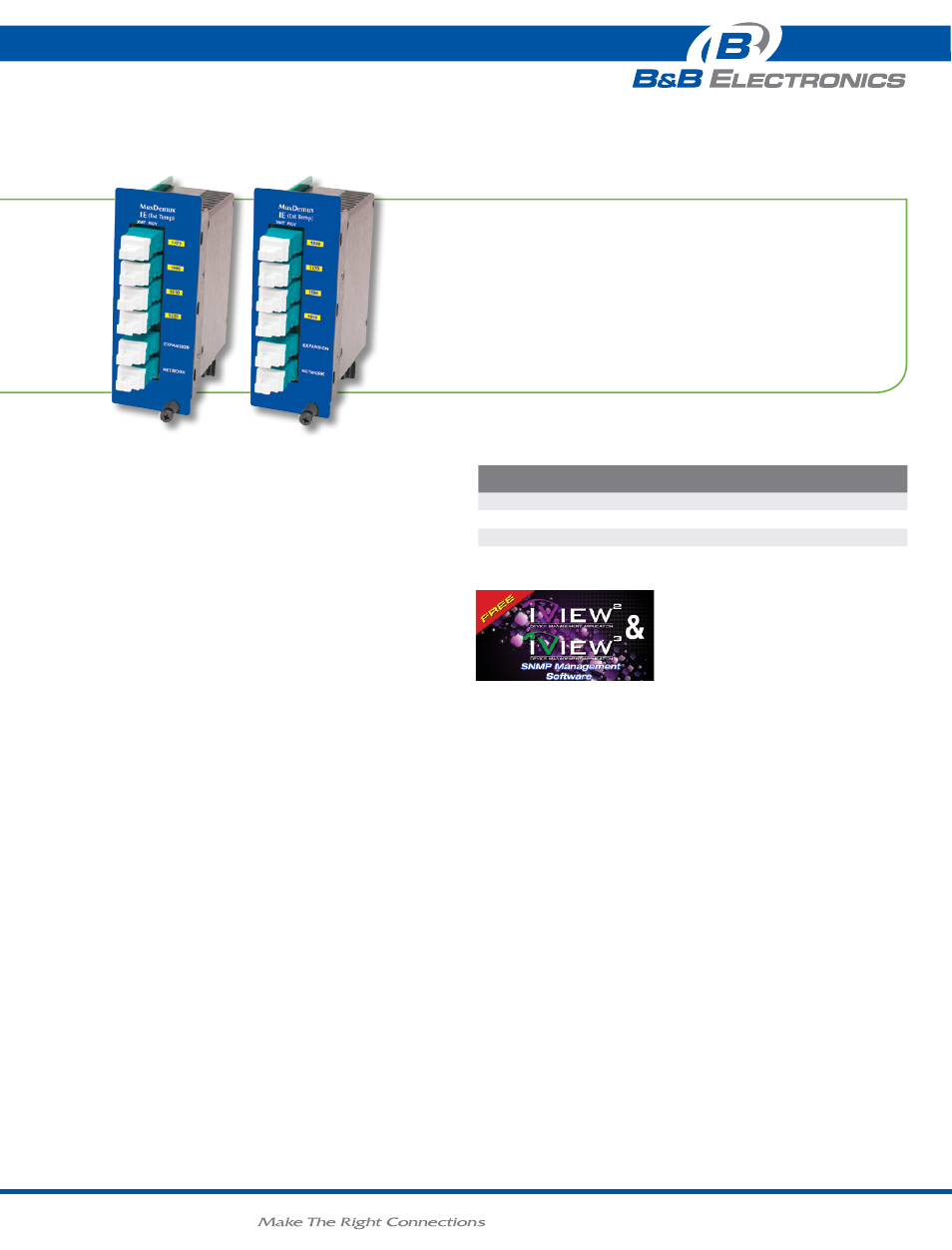

The IE-iMcV-MuxDemux/4 is a dual-wide module that provides 4
channels (8 channels using two modules) of CWDM, a network port for
connecting two modules back-to-back, and an expansion port that can
accommodate an existing 1310nm fiber network and for cascading a
second unit.
The IE-iMcV-MuxDemux/4 modules are entirely passive, requiring
no external power to function. The IE-MuxDemuxChassis/2 is an
unpowered, 1U high chassis, specially designed to house the IE-
iMcV-MuxDemux/4, although it is compatible with the MediaChassis
and iMediaChassis chassis lines. When the IE-iMcV-MuxDemux/4 is
installed in an iMediaChassis in conjunction with a SNMP Management
Module, iView
2 will identify the card allowing network operators to view
its status and edit port descriptions.
product FEaturEs
ordErIng InFormatIon
Model
nuMBer
FiBer
FiBer
Ports
network
FiBer Port
exPansion
FiBer Port
ie-iMcv-Muxdemux/4
844-18147
1470-1530-LC 4 1-LC 1-LC
844-18155 1550-1610-LC 4 1-LC 1-LC
• Add up to 8 CWDM channels to an existing 1310nm network
• Speed and protocol independent (up to 10 Gbps)
• Install the IE-iMcV-MuxDemux/4 into a compatible chassis and match
the fiber connectors with the 1470nm through 1610nm wavelengths
• Daisy chain 2 modules together for 8 CWDM channels + one 1310nm
over duplex fiber
• No outside power requirement
iView: Windows 2000/XP/Vista/Win7
IE-iMcV-MuxDemux/4_3713ds
