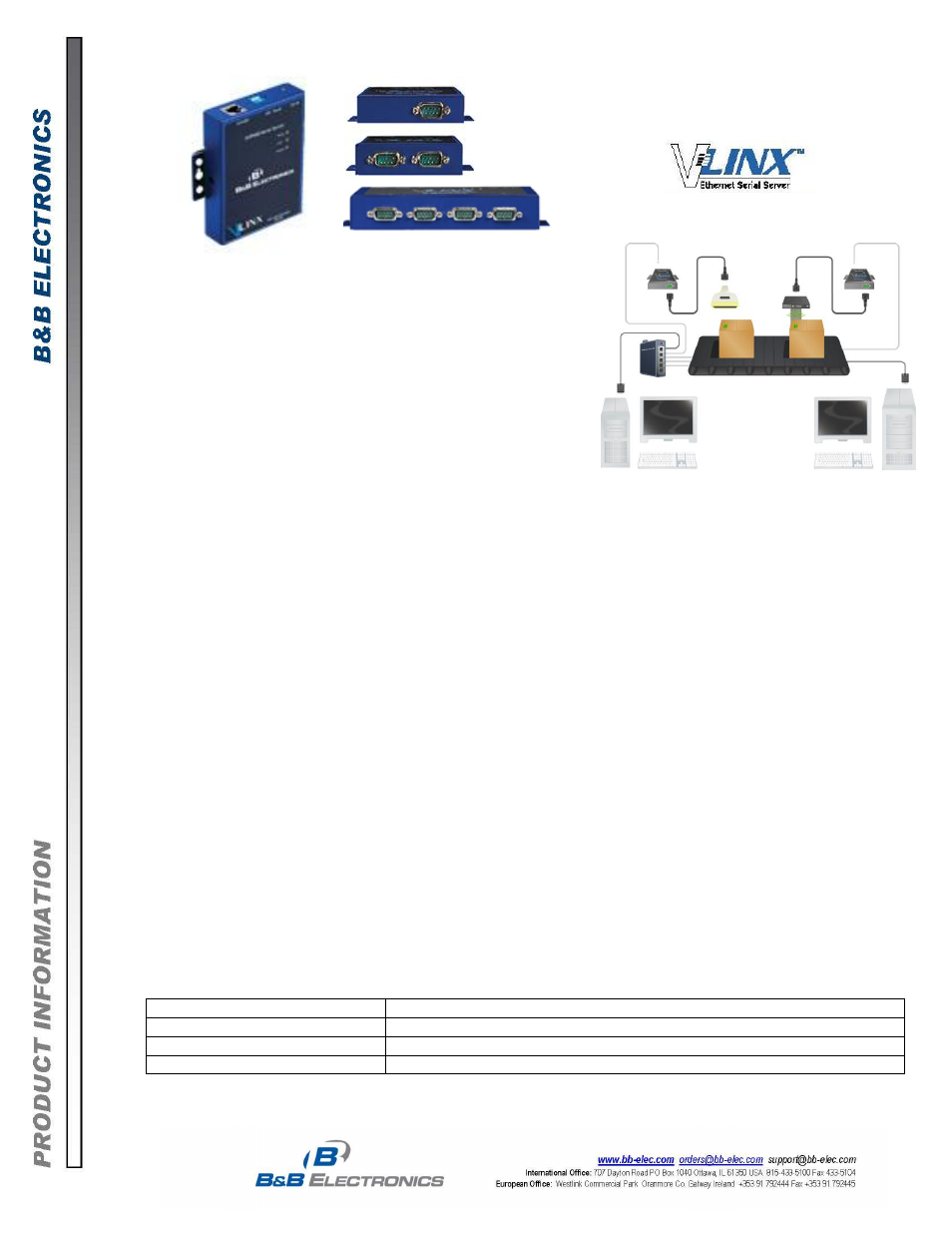

ESP90x_5012ds-1/2

© 2010 by B&B Electronics. All rights reserved.

Models: ESP901, ESP902 & ESP904

Ethernet Serial Servers


Features

 Ethernet Enable 1, 2 or 4 Serial Ports

 Compact Panel Mount Case

 Optional DIN Rail Adapter

 RS-232/422/485 Full and Half Duplex

 Auto Detect 10/100 Mbps Ethernet

 Virtual COM Drivers for Windows 2000, XP, Server 2003, Vista, Server 2008, & Win 7

Functional Description

Ethernet enable any serial device using

B&B’s Vlinx Serial Server technology and put your serial ports to

work for you. Imagine the ability to communicate with every piece of equipment from any networked PC.
Eliminate site visits just to find a need to make a minor configuration change. Reduce service calls and
increase productivity by knowing what your equipment is doing before you get a trouble-report. Spend more
tim

e doing the work you’re paid to do instead of chasing down nuisance problems with remotely located

equipment.
Much of today’s high-tech equipment ships with a serial port for programming, monitoring or diagnostics.
80% of these serial ports are left unconnected, often because a person travels to the port to make the
connection or a permanent PC is not desirable. With B&B’s Vlinx Serial Servers, you can put all of those
ports to work for you.

Simply connect the Vlinx server to the equipment’s serial port, and connect the Vlinx

Ethernet port to your LAN. Your equipment is now online. It will appear as a local COM port on any
networked PC running our Virtual Serial Port software. No software customization required, just run the
appropriate software for your equipment.

The ESP90x family integrate the benefits of Ethernet communications with existing serial devices by
offering the combination of three serial interfaces, RS-232, RS-422, and RS-485. The Ethernet connection
will auto select 10BaseT or 100BaseTX.
These serial servers provide Windows host control over serial devices located virtually anywhere on a
TCP/IP or UDP/IP Ethernet connection. They even give authorized users control over the connected serial
device and the server configuration from anywhere outside the LAN.

Ordering Information

Model Number

Description

ESP901

Single Port Serial Server, 1 RS-232/422/485 port

ESP902

Dual Port Serial Server, 1 RS-232/422/485 port, 1 RS-232 port

ESP904

Quad Port Serial Server, 4 RS-232/422/485 ports
