Fully managed features

background image

The

N-TRON

®

7018TX

gigabit capable Industrial Ethernet Switch

offers outstanding performance and ease of use. It is ideally
suited for connecting Ethernet enabled industrial and/or security
equipment and is a fully managed switch.

PRODUCT FEATURES

• Sixteen 10/100BaseTX RJ-45 Ports

• Two Optional SFP (Mini-GBIC) Gigabit Transceivers

• 1000BaseSX/LX Fiber with LC style connectors or

• 1000BaseT Copper with RJ-45 connectors

-40

o

C to 70

o

C Operating temperature

• ESD and Surge Protection Diodes on all Ports

• Auto Sensing 10/100BaseTX, Duplex, and MDIX

• Rugged DIN-Rail Enclosure

• Redundant Power Inputs (10-30VDC)

Confi gurable Alarm Contact & Bi-Color Fault Status LED

Fully Managed Features:

• SNMP v1, v2, v3 and Web Browser Management

• Detailed Ring Map and Fault Location Charting

N-Ring

Technology with ~30ms Healing

N-View

OPC Monitoring

N-Link

Redundant N-Ring Coupling

• Plug-and-play IGMP Support

• 802.1Q tag VLAN and Port VLAN

• 802.1p QoS and Port QoS

EtherNet/IP™ CIP Messaging

• LLDP (Link Layer Discovery Protocol)

Port

Trunking

Port

Mirroring

• 802.1d, 802.1w, 802.1D RSTP

• DHCP Server, Option 82 relay, Option 61

Management Features

The

7018TX

offers several management functions that can be easily

confi gured using a Web Browser.

IGMP Snooping - Internet Group Management Protocol allows the

7018TX

switch to forward and fi lter multicast traffi c intelligently.

VLAN - Virtual Local Area Network allows you to segment the switch
in order to create two or more separate local area network domains.

QoS - Quality of Service provides prioritization of network traffi c
in order to provide better network service. The primary goal of QoS
is to improve the latency of prioritized Ethernet packets required
for ring management, real-time, and other interactive applications.

Port Trunking - Port Trunking (link aggregation) enables
multiple physical ports to be linked together and function as one
uplink to another

N-TRON

trunking capable switch confi gured in the

same manner, thereby increasing the bandwidth between switches.
This confi guration can provide increased bandwidth and redundancy
to applications requiring high levels of fault tolerant operation.

Port Mirroring - This function allows the traffi c on one port to
be duplicated and sent to a designated mirror port. Port mirroring
can be used to monitor Ethernet traffi c on the designated source
port using the assigned mirror port.

DHCP-DHCP Server / Client automates the assignment of IP
addresses. DHCP Option 82 assures that if a device on a specifi c
port is replaced, the replacement receives the same IP address as
the original device.

THE INDUSTRIAL NETWORK COMPANY

Rapid Spanning Tree Protocol

RSTP allows the switch to be confi gured in a ring or mesh topology,
and provides support for redundant path communications with high
speed (rapid) healing.

Remote Monitoring Options

For ease of confi guration and monitoring, the

7018TX

offers web

browser management and N-View OLE for process control (OPC) server
software. The

N-TRON

N-View

software can be combined with popular

HMI software packages to add network traffi c monitoring, trending,
and alarming to any application using

N-TRON

switches. In addition

SNMP is available for switch link and status monitoring. The alarm
contact and status LED can be confi gured to respond to power failure
on power input 1 or input 2,

N-Ring

broken, partial break high, partial

break low, or if multiple ring managers are detected.

N-Ring Technology

N-TRON's

7018TX

ring manager using

N-TRON's

N-Ring

technology

offers expanded ring size capacity, detailed fault diagnostics, and a
standard healing time of ~30ms. The

7018TX

ring manager periodically

checks the health of the ring via packets. If the ring manager stops
receiving these health check packets, it converts the ring to a linear
topology within ~30ms.

When all switches in the ring are N-TRON fully

managed switches, a detailed ring map and fault location chart will also be
provided on the ring manager’s web browser and OPC server to identfy
the health status of the ring

.

N-Link

allows the linking of two

N-Rings

.

Up to 250 fully managed

N-TRON

switches can participate in

N-Ring

topologies.

Industrial Packaging and Specifi cations

The

7018TX

is designed to operate in industrial environments. It is

housed in a rugged steel DIN-Rail enclosure. It has extended industrial
specifi cations and features to meet or exceed the operating parameters
of connected equipment. These include extended temperature ratings,
extended shock and vibration specs, redundant power inputs, and high
MTBF (greater than 2M hours).

Ease of Use

The 10/100BaseTX ports are auto sensing and auto confi guring. Each
copper port is automatically negotiated for maximum speed and
performance by default, but can also be hard coded through the user
interface. The two optional gigabit ports support full 2000 Mb/s
communications via 1000BaseSX/LX/T. For added fl exibility, these
SFP (Mini-GBIC) gigabit transceivers are fi eld upgradable or can be
factory installed at the time of purchase.

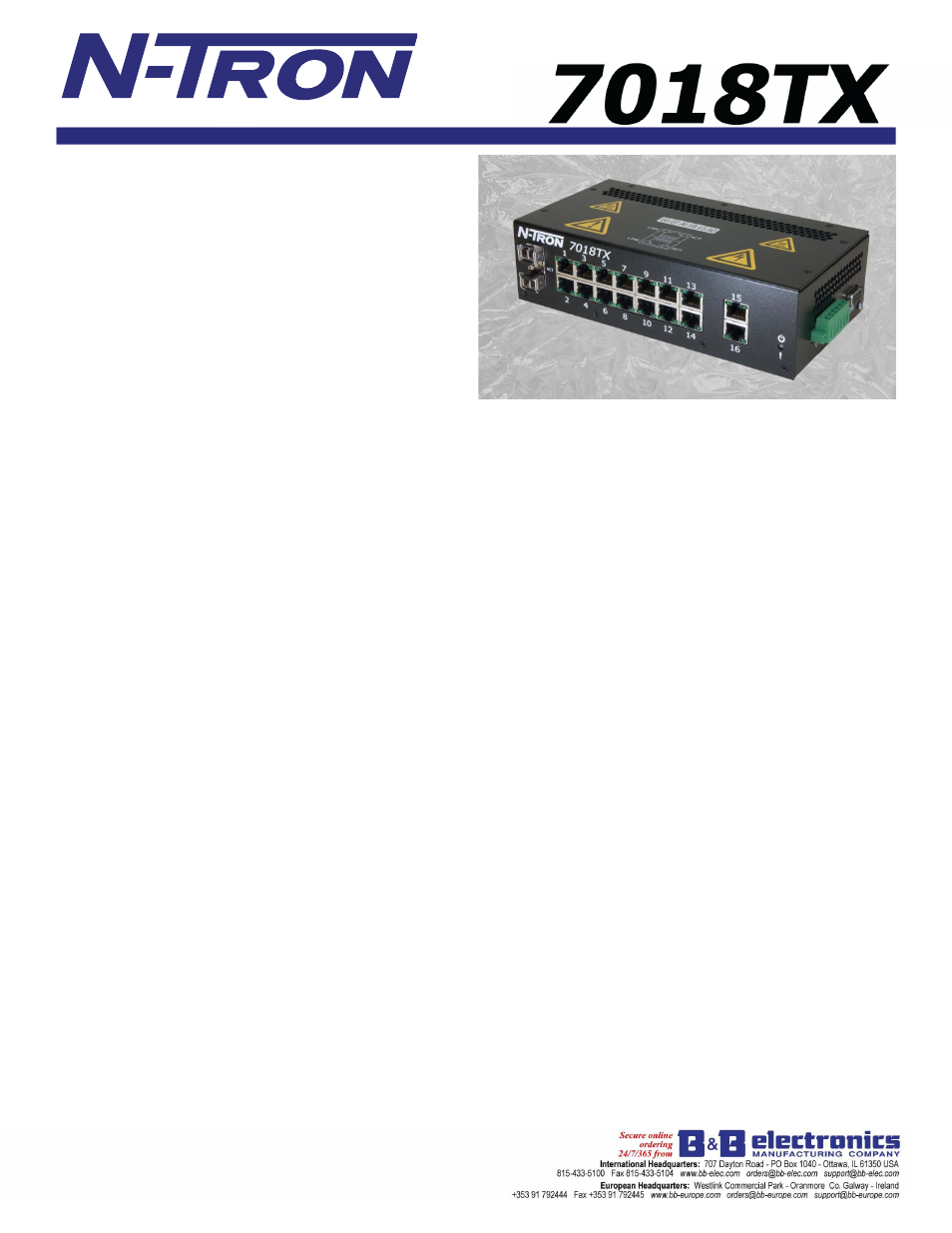

Shown with Optional Gigabit
SFP Transceivers installed
