International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Industrial 10/100BAse-tx
ethernet copper extender
EIS-EXTEND
enVironMental
Operating Temperature
0°C to 60°C (32°F to 140°F)
Tested Temperature
-20°C to 70°C (-4°F to 158°F)
Storage Temperature
-25°C to 70°C (-13 to 158°F)
Ambient Relative
Humidity
5% to 95% (non-condensing)
regulatory aPProVals
ISO
Manufactured in an ISO9001 facility
Safety
UL60950-1
EMI/EMS
CE
FCC Part 15, Class A
VCCI Class A
EN55022
EN61000-3-2, -3-3, -4-3, -4-4, -4-5, -4-6, -4-8, -6-2, 6-3
Environmental
IEC60068-2-6 Fc
IEC60068-2-27 Ea
FED STD 101C Method 5007.1
sPecIFIcAtIons
technology
Standards
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX,
IEEE802.3x
Protocols
Transparent to higher layer protocols
Processing Type
Half-duplex back-pressure and IEEE802.3x Full-duplex
flow control
Forward and Filtering
Rate
14,880pps for 10Mbps; 148,810pps for 100Mbps
interFace
Ethernet Port
Port: One RJ-45 port, 10/100BASE-TX Full/Half-duplex
Auto-Negotiation, Auto-MDI/MDIX
Speed: 10/100Mbps
Distance: 100meters (328 ft.)
Cable: 10BASE-T: UTP CAT. 3, 4, 5 (2-pair wire)
100BASE-TX: UTP CAT. 5 (4-pair wire)
Extender Port
Port: One RJ-11
Speed: 1/3/5/10/15/20/25/30/40/50mbps
Distance: 1900 meters (6,232 ft.)
Cable: 10BASE-T: UTP CAT. 3, 4, 5 (2-pair wire)
100BASE-TX: UTP CAT. 5 (4-pair wire)
100 Ohm impedance
DIP Switch
One DIP Switch: Local (CO) or Remote (CPE)
configuration
LED Indicators
Per Unit: Power Status (Power)
Per Port: 10/100TX: Link/Activity, Full-duplex
Line: Error, Link, Local, Remote
Power
Input Voltage
12 VDC
Power Consumption
2.4 W Max. 0.2A @ 12VDC
Mechanical
Enclosure
Aluminum case
Dimensions
8.03W x 10.92D x 2.38H cm
(3.16W x 4.30D x 0.94H in)
Weight
150g (0.33 lb.)
Installation
Desktop or 19 inch rack mount chassis system
PerFormAnce
MaxiMuM extension
sPeed
MaxiMuM extension
distance
1 Mbps
1900 m (6200 ft.)
10 Mbps
1400 m (4500 ft.)
20 Mbps
1000 m (3200 ft.)
30 Mbps
700 m (2550 ft.)
50 Mbps
300 m (980 ft.)

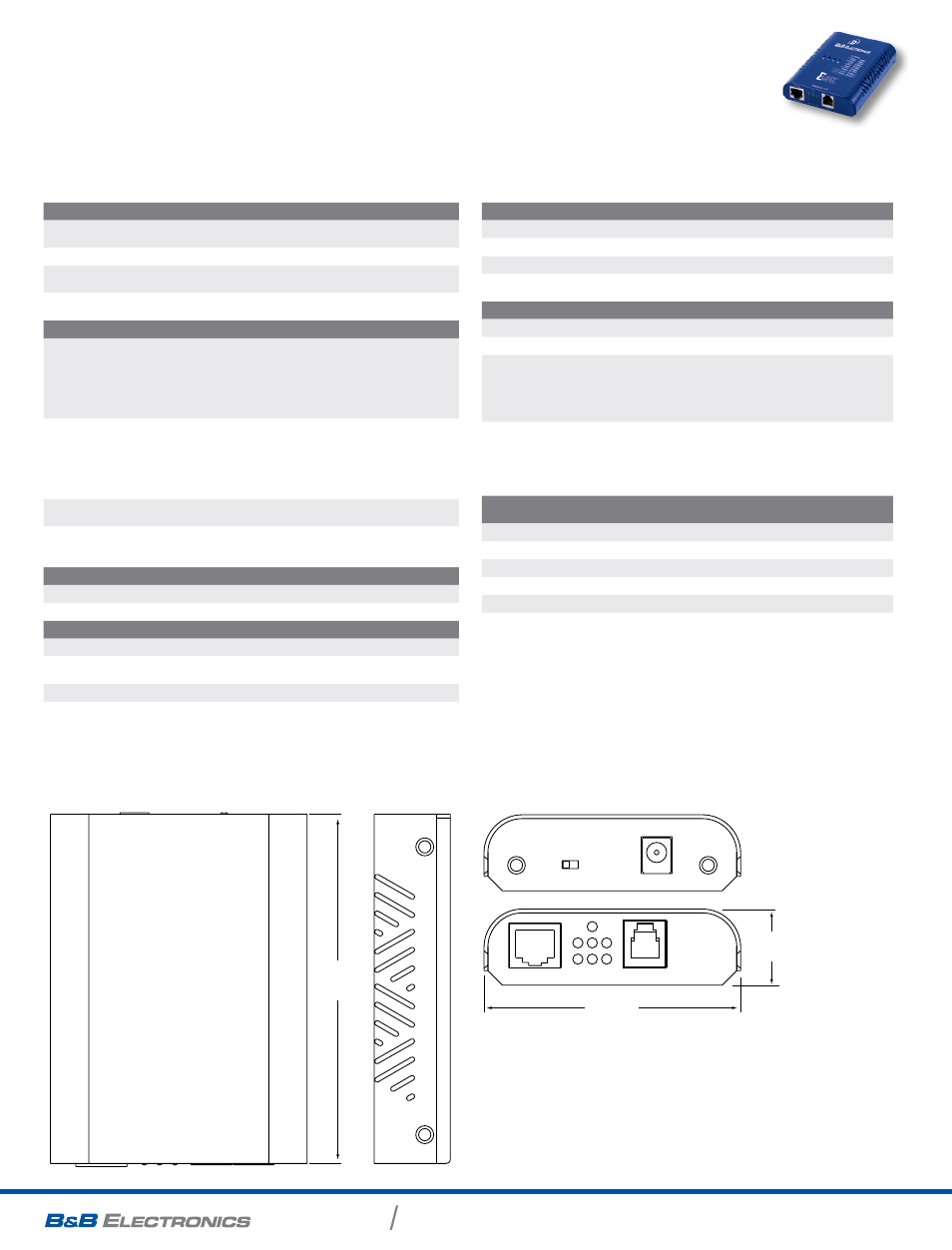

mechAnIcAl dIAgrAm
10.92 cm
4.30 in
2.38 cm
.94 in
8.03 cm
3.16 in
10.92 cm
4.30 in
2.38 cm
.94 in
8.03 cm
3.16 in
