Industrial 10/100BAse-tx

ethernet copper extender

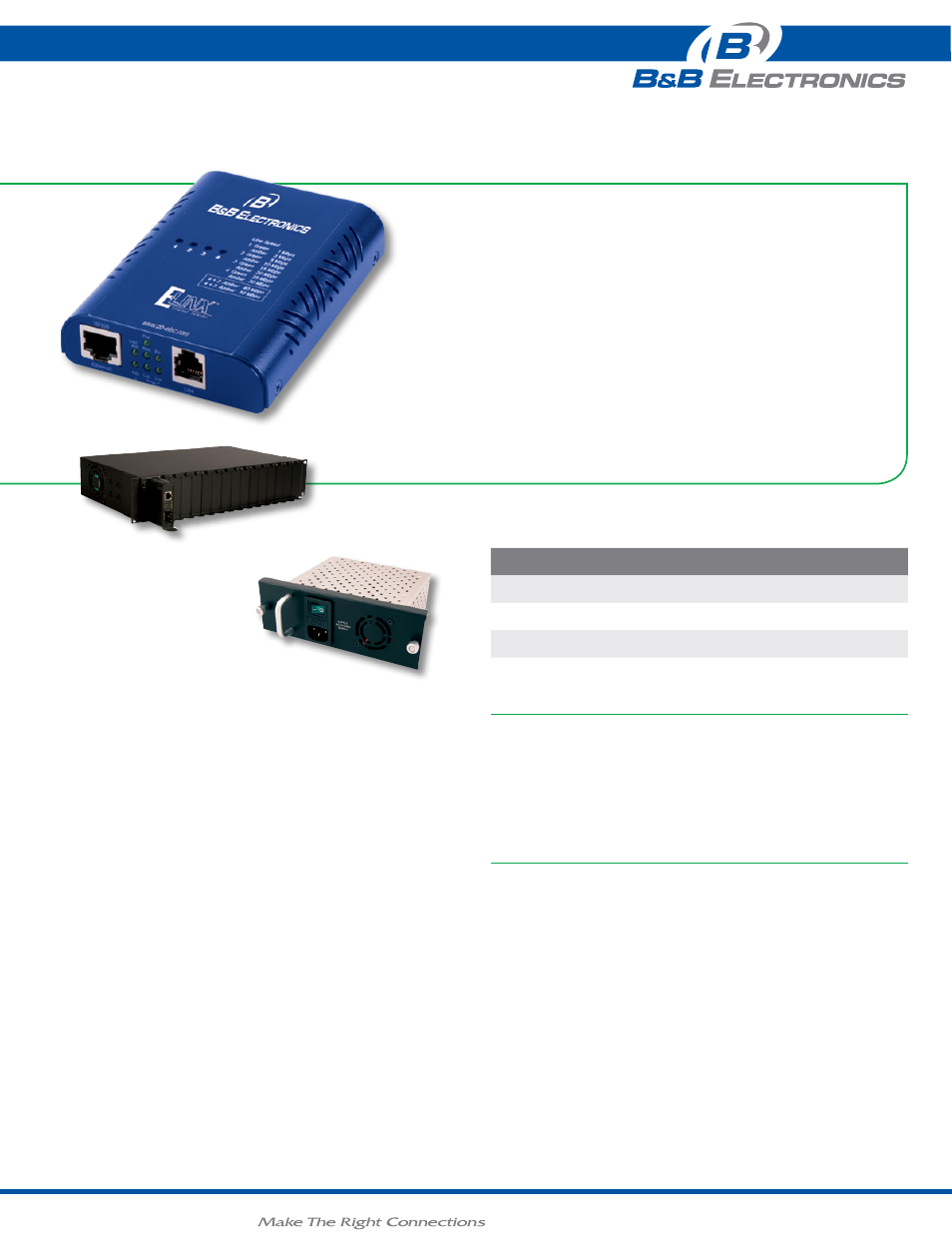

EIS-EXTEND

The model EIS-EXTEND extends your copper Ethernet connections up to
1900 meters (6200 feet) over twisted pair wire. The Ethernet Extender
fully complies with IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX
standards. Two EIS-EXTEND models are required for the Ethernet
extension, (one at each end of your extension points). This product can
be used with included power supply or in the EIS-RACK-16, 19-inch rack
mount chassis used to house up to 16 EIS-EXTEND units.

• Extend Ethernet Copper up to 1900 meters (6200 feet) over existing

copper wire (common copper, telephone, Cat5e)

• One 10/100Base TX (TX) Ethernet port with RJ-45 connector
• Auto negotiation of speed and duplex mode on TX port
• Auto MDIX on Ethernet port
• IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX compliant
• Line port uses common RJ-11 connector
• Line port auto senses the speed of 1/3/5/10/15/20/25/30/50Mbps
• One DIP switch for configuring local or remote mode
• Status LED’s for speed, monitoring and connection status
• External AC to DC power adapter included
• Used as a stand-alone device or with a 19-inch rack chassis
• Hot-swappable when used in 19 inch rack chassis

Product FeAtures

orderIng InFormAtIon

Model nuMBer descriPtion

Power suPPly

(included)

EIS-EXTEND

Industrial 10/100BASE-TX Ethernet

Extender

USA

EIS-EXTEND-EU

Industrial 10/100BASE-TX Ethernet

Extender

European

EIS-EXTEND-UK

Industrial 10/100BASE-TX Ethernet

Extender

United Kingdom

AccessorIes

EIS-PS-US - Replacement Power supply 12V US Plug
EIS-PS-EU - Replacement Power supply 12V EU plug
EIS-PS-UK - Replacement Power supply 12V UK plug
EIS-RACK-PS - Power Supply For EIS-RACK-16, 84 Watts
EIS-RACK-16 - Media Converter 19 Inch 2U Rack Chassis - 16 Slots
C5UMB3FBG - 3 ft. (1 M) - Beige - Category 5e UTP Patch Cord

19-inch rack system with power supply

Optional, additional power supply

EIS-EXTEND_3713ds
