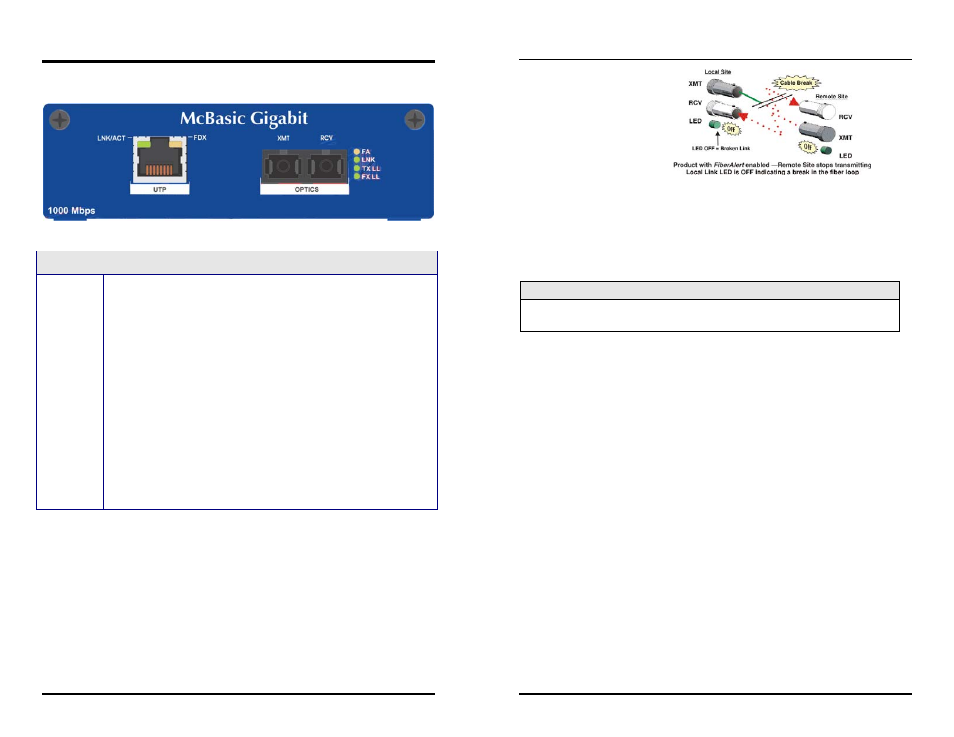

LED Operation
Each McBasic-Gigabit Converter features diagnostic LEDs that provide information on
features and ports.
McBasic-Gigabit w/LFPT
LNK/ACT
FDX
FXLL
TXLL
LNK
FA
Glows green when a twisted pair link is established. Blinks green
when data is detected on the port. Located on RJ-45 connector.
Glows amber when port is operating in Full-Duplex Mode on the RJ-
45 connector.
Glows green when operating in Full-Duplex Mode.
Glows green when TX LinkLoss is enabled on the port.
Glows green when a twisted pair link is established.
Glows amber when FiberAlert is enabled.
4
FiberAlert (FA)
FiberAlert minimizes the
problems associated with the
loss of one strand of fiber. If a
strand is unavailable, the B&B
Electronics device at the
receiver end notes the loss of
link. The device will then stop
transmitting data and the link
signal until a signal or link pulse
is received. The result is that the link LED on BOTH sides of the fiber connection will
go out indicating a fault somewhere in the fiber loop. Using FiberAlert, a local site
administrator is notified of a fault and can quickly determine where a cable fault is
located.
WARNING
Enable FiberAlert on one side of a media conversion only. Enabling it on both
sides would keep both transmitters off indefinitely.
