9
Specifications
Environmental
Operating Temperature
+32°F to +122°F (0°C to +50°C)
Storage Temperature
+13°F to 185°F (-25°C to +85°C)
Humidity
5 - 95% (non-condensing)
Power Consumption (Typical)
McBasic-Gigabit w/LFPT: 100 to 240 VAC, 50/60Hz, 0.2 to 0.1A
2
Configuration Instructions
McBasic-Gigabit has user-configurable features located on the PCB board. Please
refer to the board diagram and the table for available features.
To access the McBasic-Gigabit board for configuration, loosen the two screws on the
front of the unit. Slide the board out of the enclosure (faceplate is attached).
Configure, then slide the board back into the enclosure and tighten the screws.

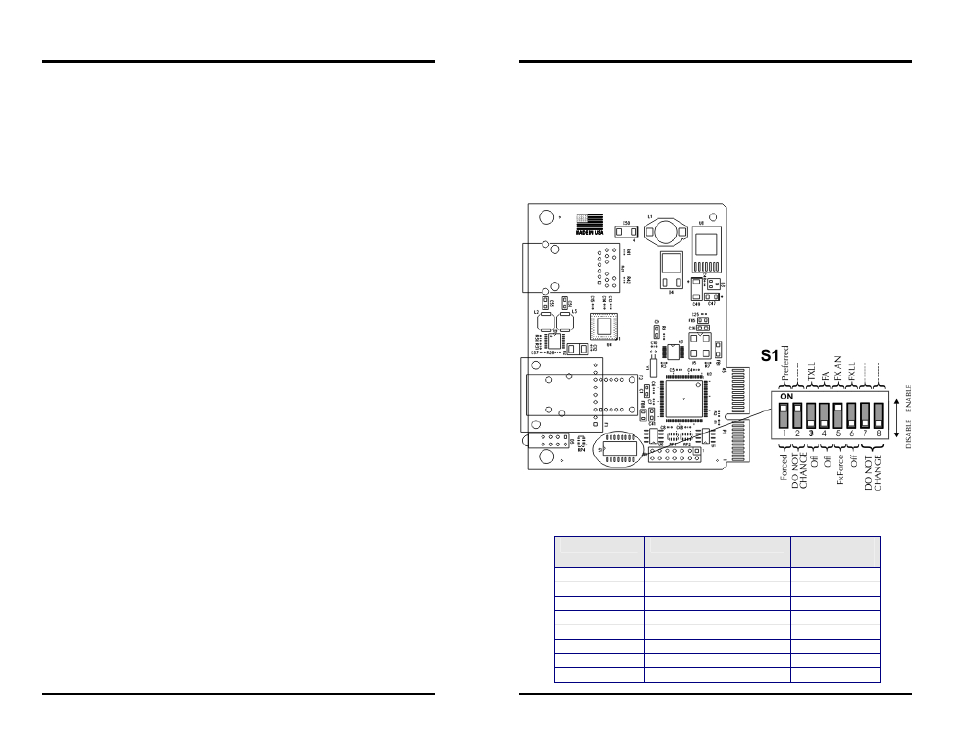

Following is the McBasic-Gigabit PCB board used to configure the unit.
McBasic-Gigabit w/LFPT
DIP Switch on S1 Feature Default Setting
1 Forced/Preferred ON
2 Factory use - Do not change ON
3 TX LinkLoss OFF
4 FiberAlert OFF
5 FX Auto Negotiation ON
6 FX LinkLoss OFF
7 Factory use - Do not change OFF
8 Factory use - Do not change OFF
