10/100 mbps managed optical
demarcation module
iMcV-FiberLinX-II
SpecificationS
General
Preserves complete end-to-end fiber connection integrity
Broadcast Storm Protection
Supports Extra Tagging (Q-in-Q) and selectable EtherTypes
Bi-directional bandwidth control
Supports 802.3ag/ah OAM (Operation, Administration & Management)
ITU-T Y.1731 End-to-end service
Read/write IEEE 802.1Q VLAN-tags
QoS: IEEE 802.1p-based packet prioritization (2 queues [high/low] with 8 levels of
priority)
Layer 2 packet switching, store and forward operation
Forwarding rate: 14,881 pps for 10 Mbps; 148,810 pps for 100 Mbps
AutoCross for MDI/MDIX
Features Auto Negotiation and Selective Advertising
Supports Half and Full-Duplex operation
MTU: Supports over-sized (Jumbo) packets up to 1916 bytes per packet
ManaGeMent
SNMP V1 and V2c compatible
Includes GUI-based iView² software for remote management and upgrades
Monitors far-end (remote) status without a physical presence or separate
connection
IEEE 802.3x Flow Control
Includes DHCP and TFTP clients
Supports Telnet
Includes loopback test modes (MAC swap)
Includes LinkLoss and FiberAlert
Supports the Unified Management Agent (UMA)
ethernet Protocols suPPorted
IEEE 802.3i 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3u 100Base-FX or SX fiber
Mechanical
Dimensions Standard single-slot chassis module
Shipping Weight 4 oz.
Power consuMPtion
850mA at 3.3V
environMental
Operating Temperature +32° to +122° F (0° to +50° C)
Storage Temperature 0° to +160° F (-20° to +70° C)
Operating Humidity 5 to 95% Non-condensing
regulatory aPProvals
FCC Class A
UL/cUL, CE, CSA, CB
4.19
.71
3.57
2.73
3.04 .38
1.00
.78
.34
.27
.68
3.45
2.13
.61
1.28

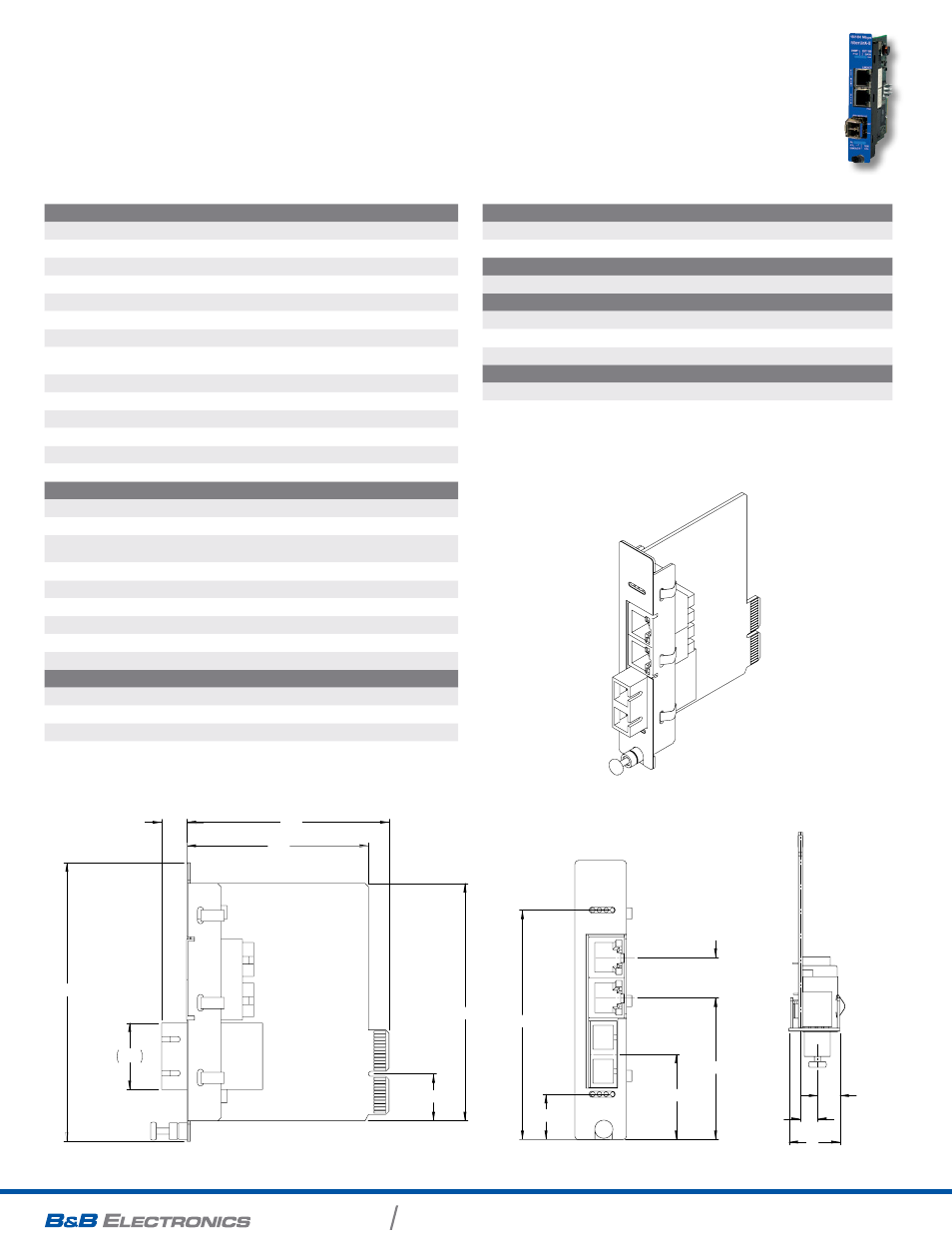

mEchanIcal dIagram
(dimensions in inches)
