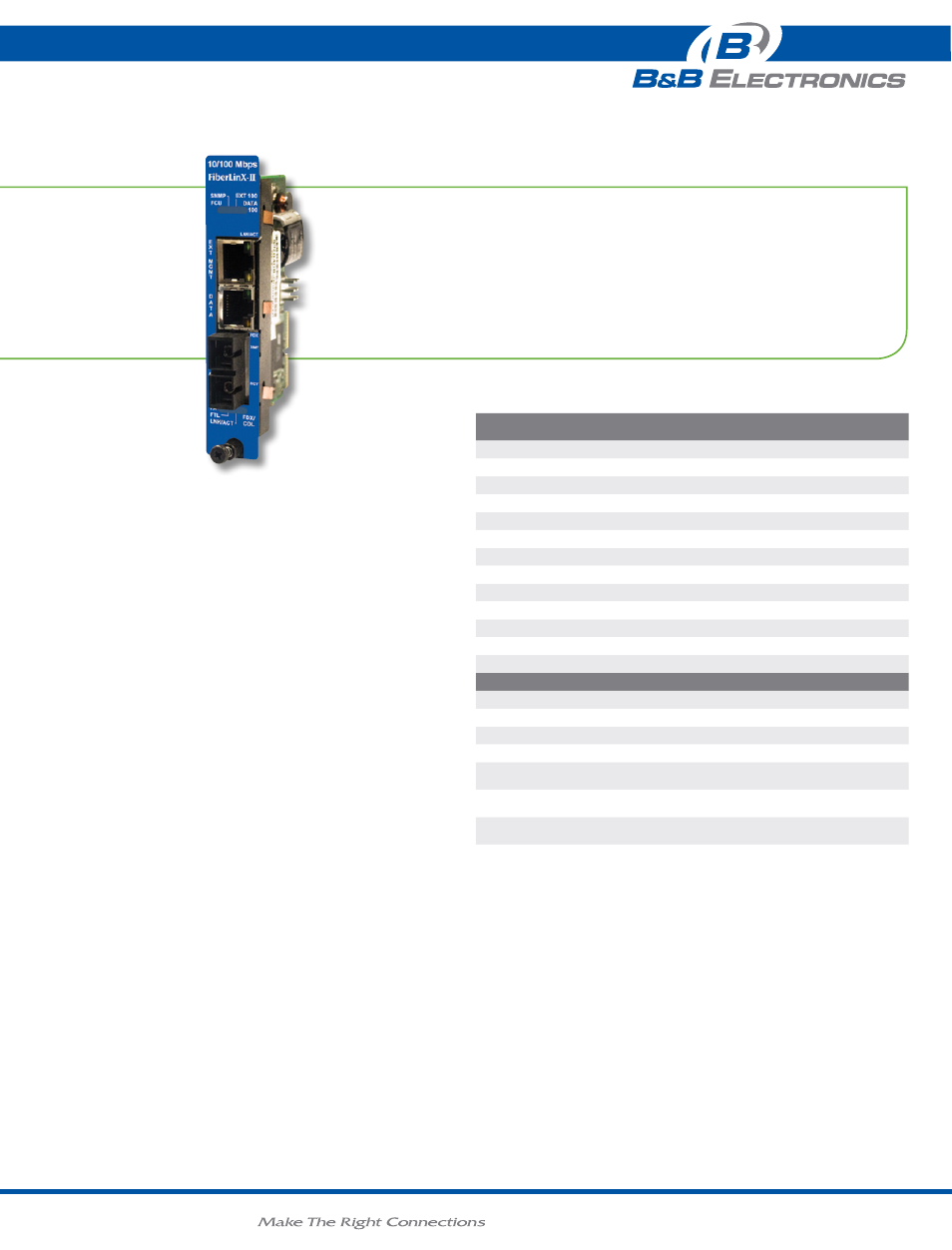

The iMcV-FiberLinX-II intelligent media converter connects a Host/
Remote Ethernet network over a fiber optic or CAT 5 copper connection.
It combines media conversion with an advanced-feature set for
network management and troubleshooting, including OAM (Operations,
Administration and Maintenance), Extra-Tagging and EtherType control
functionality. With the iMcV-FiberLinX-II, administrators can observe
the end-points over the fiber segment between them, as a single
management entity. Bandwidth scalability and support for MIBs II
makes this modular device a cost-effective solution.
iMcV-FiberLinX-II allows for remote configuration and alerts
administrators to any potential problems on the long-haul fiber run,
provides vital information on link condition and reports data traffic
statistics.. In addition to the iMcV-FiberLinX-II's support for Host/
Remote environments, the product also has built-in support for the
Unified Management Agent (UMA). With UMA, the central location can
manage all Host/Remote pairs installed in an iMediaChassis with the
single IP address of the chassis.
Optional single- or dual-SFP port versions or all copper (RJ-45) port
versions are also available for complete network flexibility. The iMcV-
FiberLinX-II SFP requires one or two MSA-compliant fiber optic SFP
modules (sold separately) to operate. [Copper SFPs are not supported.]
• Q-in-Q Extra/Tagging
• SNMP Manageable
• OAM 802.3ag/ah (Operation, Administration & Management)
• Per-port bi-directional Bandwidth control
• Features powerful LinkLoss, FiberAlert and loopback troubleshooting
• All management traffic remains isolated from the remote LAN
product FEaturEs
ordErIng InFormatIon
Model
nuMBer
FiBer
FiBer
Ports range
ethernet
Ports
ethernet
ConneCtor
iMcv-Fiberlinx-ii tx/sFP, tx/tx
856-14500 SFP
1 Various 2 RJ45
856-14501 SFP 2 Various 1 RJ45
856-14010 100 m 3 RJ45
iMcv-Fiberlinx-ii tx/Fx
856-14011 MM1300-ST
1 5 km 2 RJ45
856-14012 MM1300-SC 1 5 km 2 RJ45
856-14015 SM1310/PLUS-ST 1 40 km 2 RJ45
856-14016 SM1310/PLUS-SC 1 40 km 2 RJ45
856-14017 SM1310/LONG-ST 1 80 km 2 RJ45
856-14018 SM1310/LONG-SC 1 80 km 2 RJ45
856-14021 SM1550/LONG-SC 1 80 km 2 RJ45
856-14022 SM1550/XLONG-SC 1 100 km 2 RJ45
single strand FiBer *
856-14039 SSFX-MM1310-SC 1 2 km 2 RJ45
856-14040 SSFX-MM1550-SC 1 2 km 2 RJ45
856-14043 SSFX-SM1310-SC 1 20 km 2 RJ45
856-14044 SSFX-SM1550-SC 1 20 km 2 RJ45
856-14045 SSFX-SM1310/
PLUS-SC
1 40 km 2 RJ45
856-14046 SSFX-SM1550/
PLUS-SC
1 40 km 2 RJ45
856-14047 SSFX-SM1310/
LONG-SC
1 60 km 2 RJ45
856-14048 SSFX-SM1550/
LONG-SC
1 60 km 2 RJ45
10/100 mbps managed optical
demarcation module
iMcV-FiberLinX-II
10/100 mbps managed optical
demarcation module
iMcV-FiberLinX-II
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
iMcV-FiberLinX-II also available in CWDM Fiber.
Call for details.
iMcV-FiberLinX-II_3713ds
