71
Order Today: 419-636-4217, Fax: 419-636-2450, e-mail: [email protected] Order Today: 419-636-4217, Fax: 419-636-2450, e-mail: [email protected]

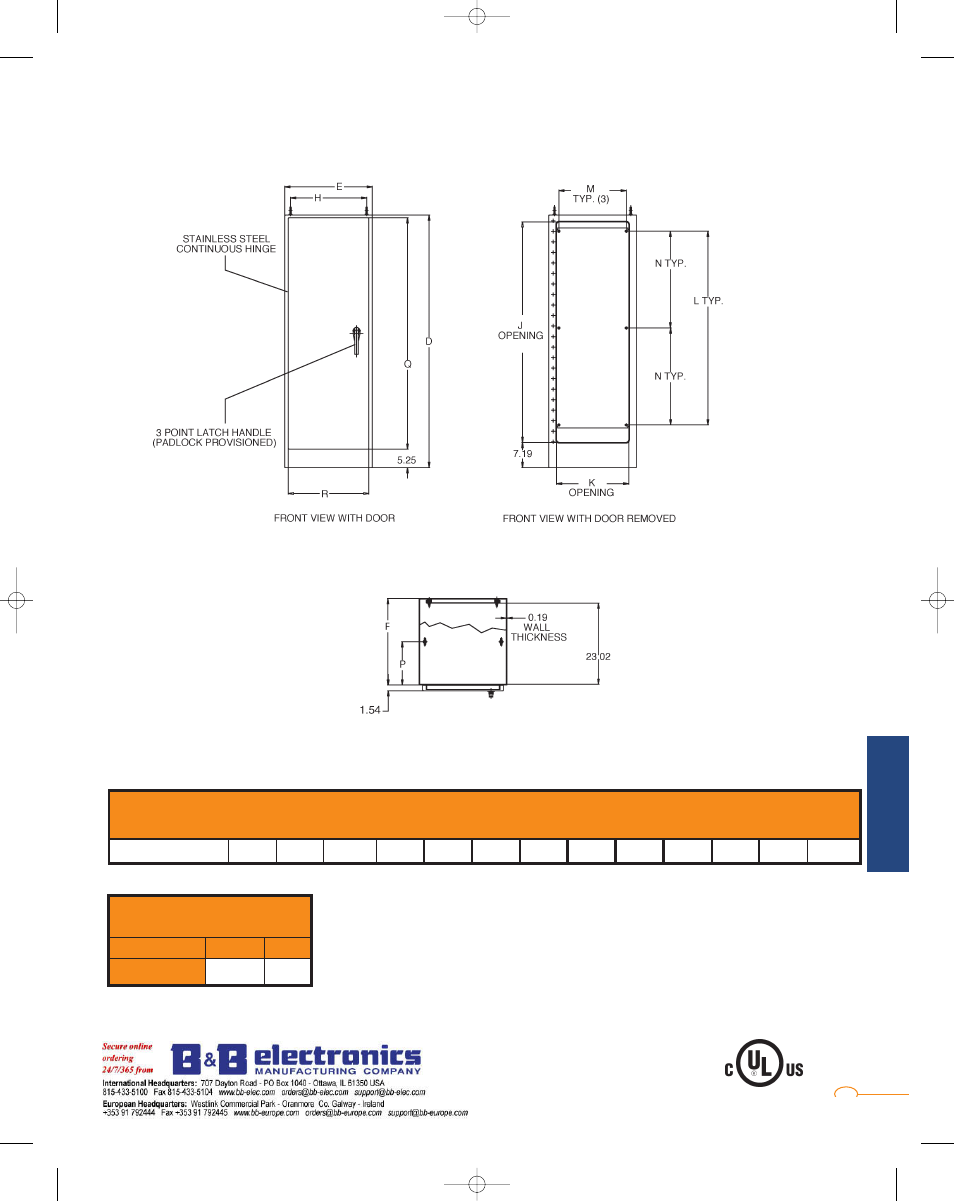

All dimensions in inches.
Part No. D E F J K L M N P Q R
# PANEL
MOUNT
STUDS
AM722525FS 72.00 25.00 24.50 62.88 20.63 55.25 19.25 27.63 12.25 66.00 23.00 6
Part No. D E F J K L M N P Q R
# PANEL
MOUNT
STUDS
AM724925DD 72.00 49.00 24.50 62.88 20.63 55.25 19.25 27.63 5.00 66.00 23.00 12
All dimensions in inches.
Part No. Height Width
P7225CS 57.00 21.00
Optional Carbon
Steel Back Panel
Part No. Height Width
P7249CS 57.00 21.00
Optional Carbon
Steel Back Panel
H
21.75
H
45.25
E
M
P
IR
E
S
E
R
IE
S
