69
Order Today: 419-636-4217, Fax: 419-636-2450, e-mail: [email protected] Order Today: 419-636-4217, Fax: 419-636-2450, e-mail: [email protected]

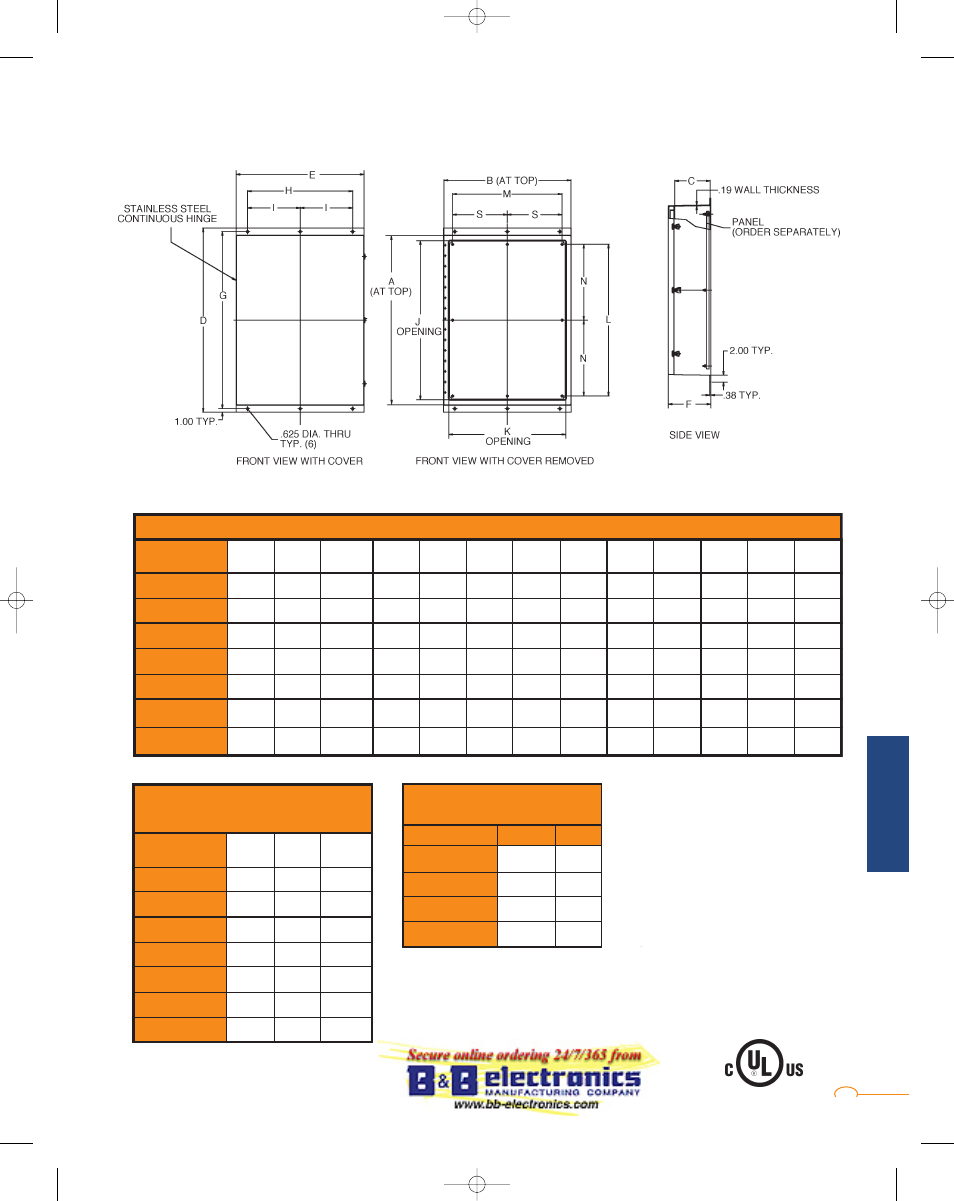

Part No. A B C D E F G H I J K L M
AM363012L 36.25 30.25 10.125 40.50 30.50 12.00 38.50 24.00 12.00 33.88 27.88 31.25 25.25
AM363016L 36.25 30.25 14.125 40.50 30.50 16.00 38.50 24.00 12.00 33.88 27.88 31.25 25.25
AM363612L 36.25 36.25 10.125 40.50 36.50 12.00 38.50 30.00 15.00 33.88 33.88 31.25 31.25
AM363616L 36.25 36.25 14.125 40.50 36.50 16.00 38.50 30.00 15.00 33.88 33.88 31.25 31.25
AM483612L 48.25 36.25 10.125 52.50 36.50 12.00 50.50 30.00 15.00 45.38 33.88 43.25 31.25
AM483616L 48.25 36.25 14.125 52.50 36.50 16.00 50.50 30.00 15.00 45.38 33.88 43.25 31.25
AM603612L 60.25 36.25 10.125 64.50 36.50 12.00 62.50 30.00 15.00 57.38 33.88 55.25 31.25
AM603616L 60.25 36.25 14.125 64.50 36.50 16.00 62.50 30.00 15.00 57.38 33.88 55.25 31.25
All dimensions in inches.
Part No. N S
# PANEL
MOUNT
STUDS
AM363012L 15.63 12.63 6
AM363016L 15.63 12.63 6
AM363612L 15.63 15.63 8
AM363616L 15.63 15.63 8
AM483612L 21.63 15.63 8
AM483616L 21.63 15.63 8
AM603612L 27.63 15.63 8
AM603616L 27.63 15.63 8
All dimensions in inches.
Part No. Height Width
P3630CS 33.00 27.00
P3636CS 33.00 33.00
P4836CS 45.00 33.00
P6036CS 57.00 33.00
Optional Carbon
Steel Back Panels
All dimensions in inches.
E
M
P
IR
E
S
E
R
IE
S
