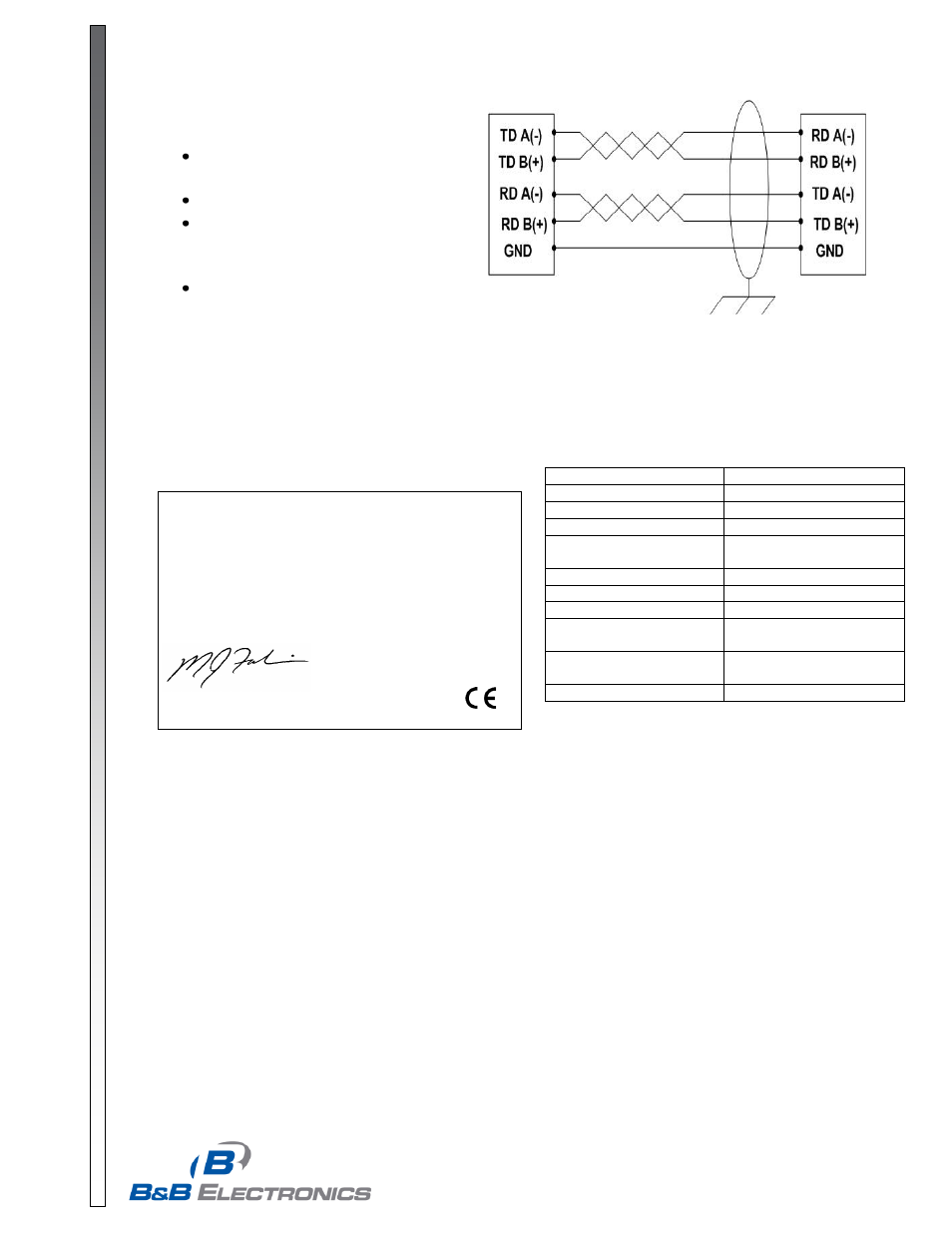

Figure 3: 4-wire RS-422
Used as the master in a master/slave
circuit with receive only slaves.
Full-duplex communications.
Requires a twisted pair for transmit, a
twisted pair for receive, and a ground
reference wire.
Switch settings are: Switch 1: RS-
422, Switch 2: Echo On, Switches 3
and 4: 4-wire.
Specifications
Input Power Requirement 10 – 48 VDC
Isolation 2000 VAC
Current Draw 28 mA at 12 VDC (typical)
RS-232 Connection DB9/DB25
RS-422/RS-485
Connection Removable Terminal
Block
Data Rate Up to 115.2 kbps
Operating Temperature 32 – 158°F (0 - 70°C)
LED Indicators TD and RD
Dimensions
(4WSD9OTB) 3.9 x 1.7 x 0.9 in
9.8 x 4.3 x 2.3 cm
Dimensions
(4WSD25OTB) 3.9 x 2.2 x 0.9 in
9.8 x 5.5 x 2.3 cm
Approvals CE
DECLARATION OF CONFORMITY
Manufacturer’s Name: B&B Electronics Manufacturing Company
Manufacturer’s Address: P.O. Box 1040
707 Dayton Road
Ottawa, IL 61350 USA
Model Number: 4WSDxxOTB
Description: RS-422/485 Converter
Type: Light industrial ITE equipment
Application of Council Directive: 89/336/EEC
Standards:
EN 55022
EN 61000-6-1
EN 61000 (-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11)
Michael J. Fahrion, Director of Engineering
