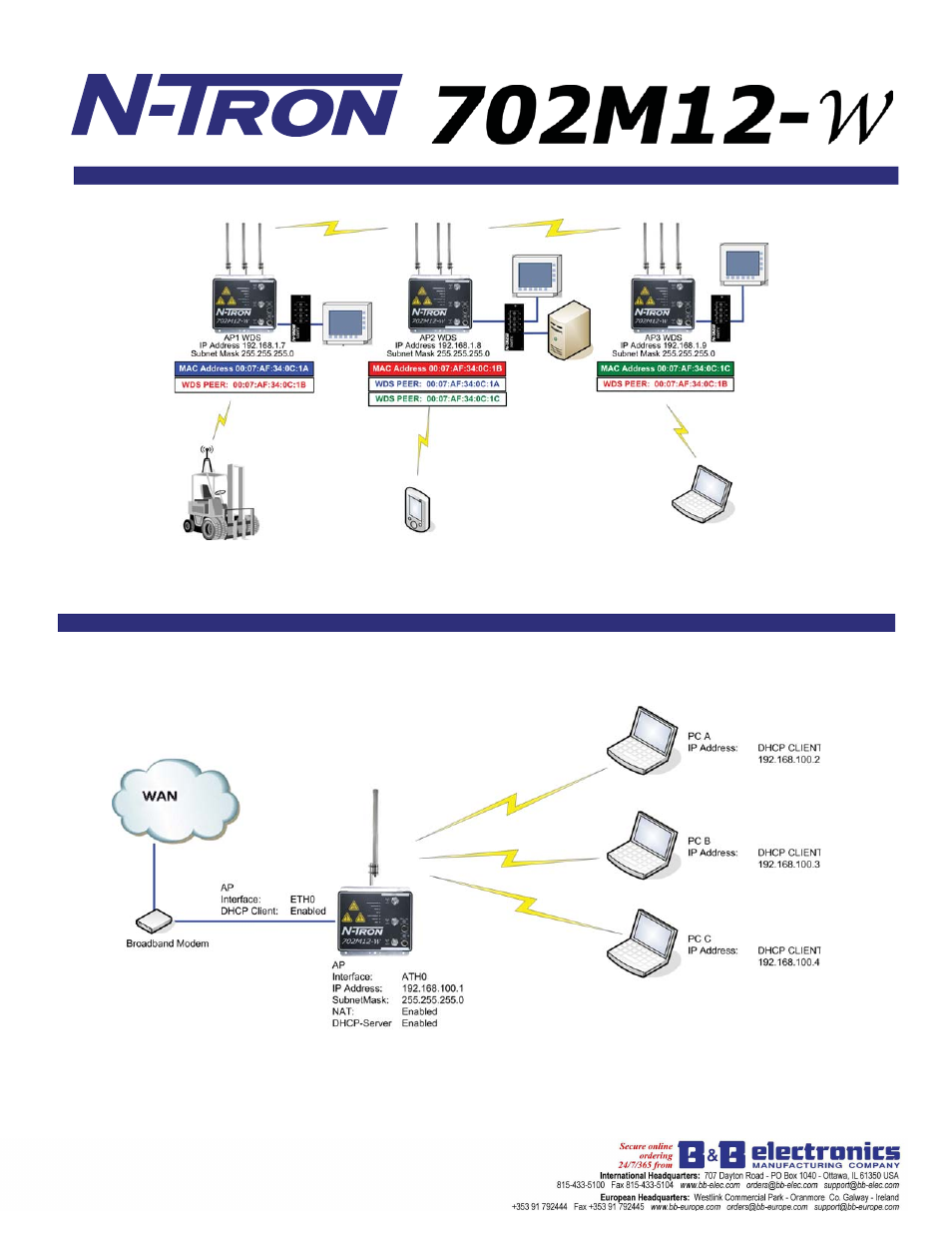

Scenario 3 – WDS Peering
In this scenairio, each 702M12-W has been confi gured as a peer of selected other 702M12-W(s) by using the MAC
Addresses of the select unit(s). This allows forklifts or other mobile wireless devices to maintain communication
seamlessly as they move from the area covered by one 702M12-W into the area covered by the next 702M12-W.
Scenario 4 – Broadband Modem Wireless Router (W/ DHCP)
The N-TRON 702M12-W confi gured as a router can act as a DHCP server and supports the Network Address Translation
(Masquerading) feature which is widely used by Access Points. This automates the assigning of IP addresses to devices as
they connect. NAT will act as a fi rewall between LAN and WLAN networks. Additional fi rewall settings can be confi gured
for layer 3 packet fi ltering and access control in Router mode.
