Specifications Con’t
IDEC Corporation
1175 Elko Drive Sunnyvale, CA 94089
800-262-IDEC (4332) Fax: 408-745-5258
www.idec.com
©2007 IDEC Corporation. All Rights Reserved.
Catalog No. PS9Y-DS100-0 04/07 10K
PS5R-SB PS5R-SC PS5R-SD PS5R-SE PS5R-SF PS5R-SG
Parallel Operation No
Dielectric Strength Between Input and Ground: 2000 VAC, 1 minute*
Insulation Resistance Between Input & Output Terminals: 100 MΩ Min
Operating Temperature –10 to +65°C (14 to 149°F) -10 to 60°C (14 to 140°F)
Storage Temperature -25 to 75°C (-13 to +167°F)
Operating Humidity 20 to 90% relative humidity (no condensation)
Vibration Resistance Frequency 10 to 55Hz, Amplitude 0.375mm
Shock Resistance 300m/s 2 (30G) 3 times each in 6 axes
Approvals
EMC: EN61204-3 (EMI: Class B, EMS: Industrial), c-UL (CSA 22.2 No. 14), UL 1604, UL 508, LVD: EN60950, EN50178
UL1310 Class 2, c-UL (CSA 22.2 No. 213 and 223) – SEMI F47
Harmonic Directive N/A EN61000-3-2 A14 class A
Weight (approx.) 160g 250g 285g 440g 630g 1000g
Terminal Screw M3.5 slotted-Phillips head screw (screw terminal type)
IP protection IP20 fingersafe
Dimensions H x W x D (mm) 90 x 22.5 x 95 95 x 36 x 108 115 x 46 x 121 115 x 50 x 129 125 x 80 x 149.5
Dimensions H x W x D (inches) 3.54 x 0.89 x 3.74 3.74 x 1.42 x 4.25 4.53 x 1.81 x 4.76 4.53 x 1.97 x 5.08 4.92 x 3.15 x 5.89
* Between input and output: 3000VAC, 1 minute; Between output and ground: 500VAC, 1 minute

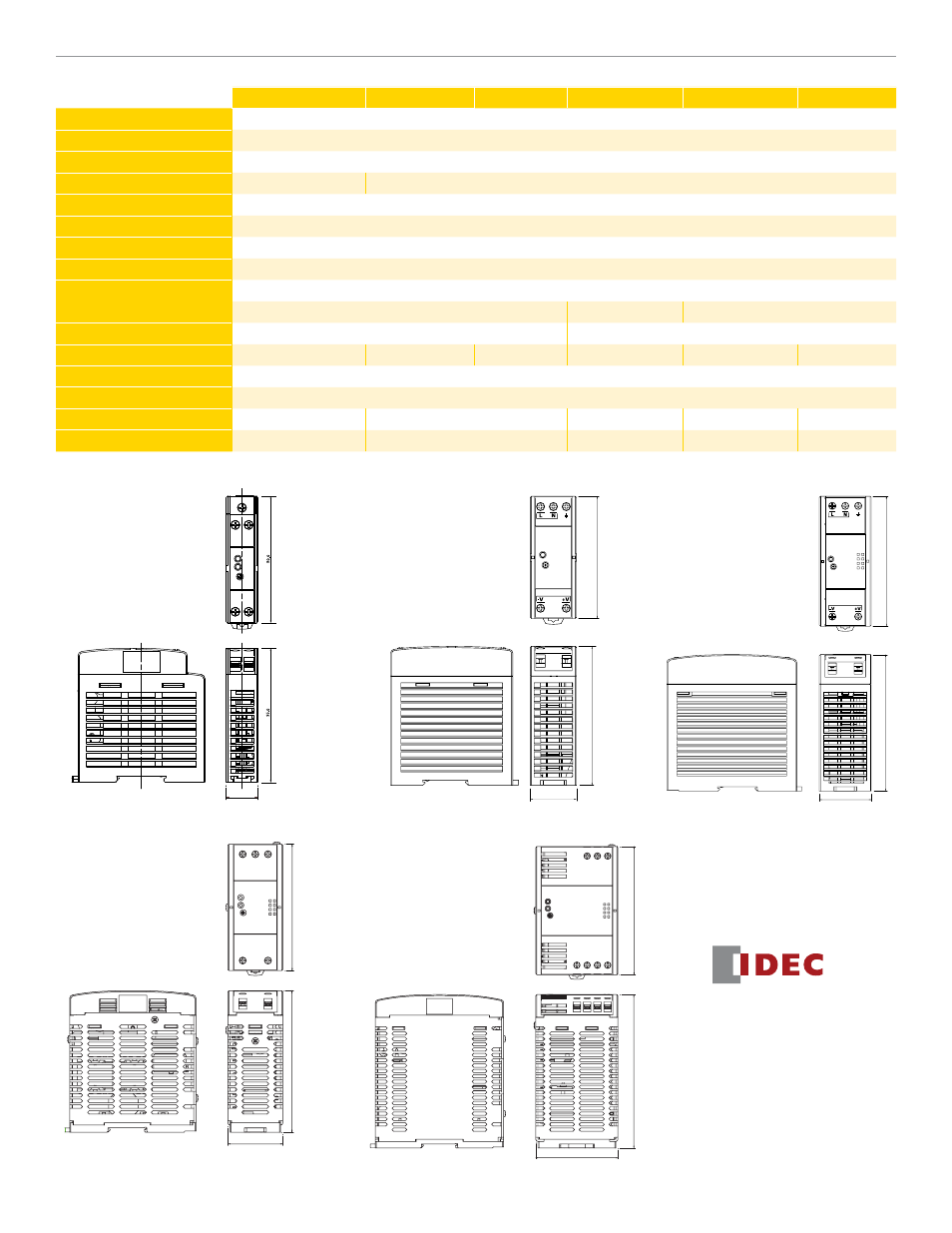

Dimensions
22.5
PS5R-SB
108
.0
95.
0
36.0
PS5R-SC
PS5R-SD
46.0
115.
0
121.
0
PS5R-SE
129
50
115
PS5R-SF
80
12
5
149.5
PS5R-SG
