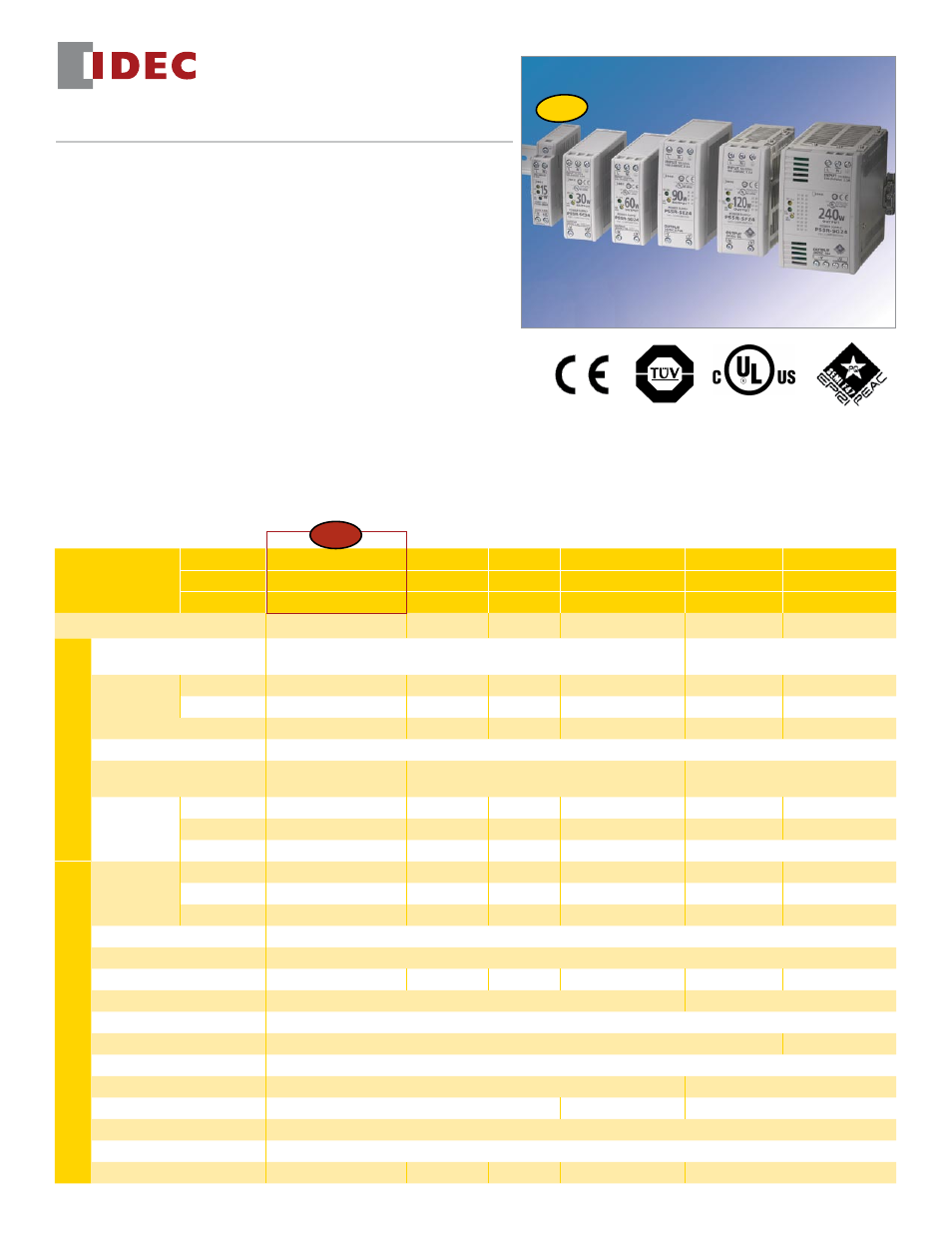

Slim line power supplies ps5r-s, Features specifications, New new
• Lightweight and Compact in size
• Wide Power Range: 15W – 240W
• Universal Input:
15W to 90W:
85-264V AC/100-370V DC
120W and 240W: 85-264V AC/100-350V DC
• Power Factor Correction (EN61000-3-2) for 60W to 240W
• Meets SEMI F47 Sag Immunity (120W & 240W)
• NEC Class 2 rated (15W, 30W & 60W)
• Approved for Class 1, Div. 2 Hazardous Locations
• Fused input
• Overcurrent protection, auto-reset
• Overvoltage protection, shut down
• Spring-up Screw Terminal type, IP20
• DIN rail or Panel Surface Mount
• Approvals:
CE Marked, TÜV, c-UL, UL 508, UL 1310 (PS5R-SB, -SC, -SD),
UL 1604, EN 50178:1997, LVD: EN60950:2000, EMC: Directive,
EN61204-3:2000 (EMI: Class B, EMS: Industrial)
Slim Line Power Supplies PS5R-S
Features
Specifications
For more information on these
and other IDEC power supplies, visit:
www.idec.com/powersupply
Part
Numbers
5V DC output
PS5R-SB05
–
–
–
–
–
12V DC output
PS5R-SB12
PS5R-SC12
–
–
–
–
24V DC output
PS5R-SB24
PS5R-SC24
PS5R-SD24
PS5R-SE24
PS5R-SF24
PS5R-SG24
Output Capacity
15W (5V Model is 10W)
30W
60W
90W
120W
240W
Input
Input Voltage
(single-phase, 2-wire)
85 to 264 VAC,
100 to 370 VDC
85 to 264V AC,
100 to 350V DC
Input Current
(maximum)
100VAC
0.45A
0.9A
1.7A
2.3A
1.8A
3.5A
200VAC
0.3A
0.6A
1.0A
1.4A
1.0A
1.7A
Internal Fuse Rating
2A
3.15A
3.15A
4A
4A
6.3A
Inrush Current (cold start)
50A maximum (at 200V AC)
Leakage Current (at no load)
132V AC: 0.38 mA maximum
264V AC: 0.75 mA maximum
0.75mA maximum
1mA maximum
Typical
Efficiency
5V DC
69%
–
–
–
–
–
12V DC
75%
78%
–
–
–
–
24V DC
79%
80%
83%
82%
84%
Output
Output Current
Ratings
5V DC
2.0A
–
–
–
–
–
12V DC
1.2A
2.5A
–
–
–
–
24V DC
0.65A
1.3A
2.5A
3.75A
5A
10A
Voltage Adjustment
±10% (V. ADJ control on front)
Output Holding Time
20ms minimum (at rated input and output)
Starting Time
200ms maximum
–
–
–
650ms maximum
500ms maximum
Rise Time
100ms maximum (at rated input and output)
200ms maximum
Line Regulation
0.4% maximum
Load Regulation
1.5% maximum
0.8% max
Temperature Regulation
0.05% degree C maximum
Ripple Voltage
2% peak to peak maximum (including noise)
1% peak to peak maximum (including noise)
Overcurrent Protection
105% or more, auto reset
105 to 130%, auto reset
103 to 110%, auto reset
Overvoltage Protection
120% min. SHUTDOWN
Operation Indicator
LED (green)
Voltage Low Indication
LED (amber)
–
–
–
LED (amber)
