2
Figure 3
Figure 4
Figure 5
Figure 2

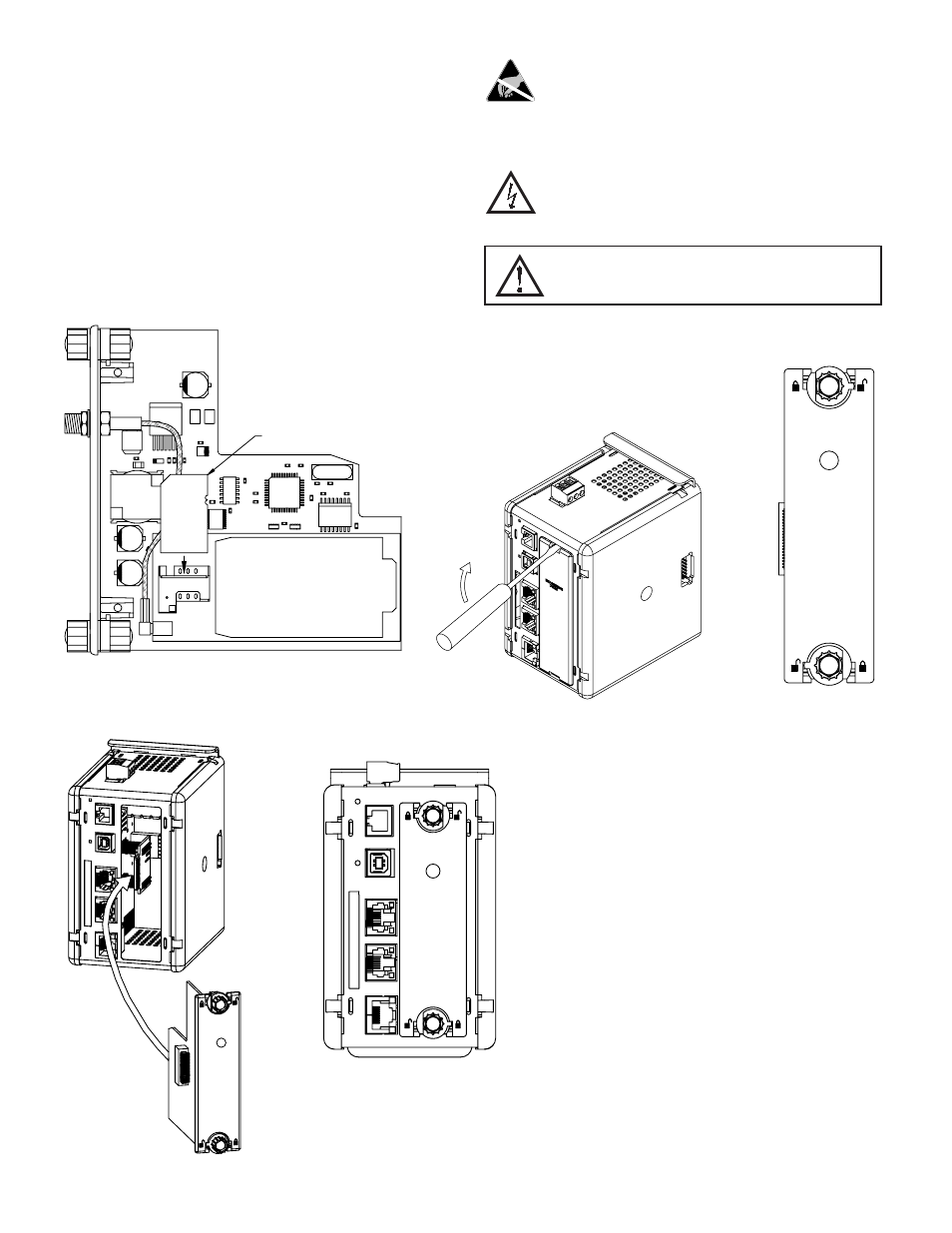

INSTALLING THE VFG9000-CEL OPTION CARD
The first step is to buy a SIM Card from one of the GSM/GPRS providers and
insert it into the SIM Card slot of the option card. The SIM Card slot is the
rectangular slot on top of the GSM/GPRS Cellular Modem in the VFG9000-
CEL option card as shown in Figure 1. See SIM Card details in the Software/
Unit Operation Section for more details.
1. Remove power from the unit.
2. Insert a flat-bladed screwdriver into the slot at the top of the expansion port
cover. Gently apply pressure on the screwdriver in an upward direction until
the expansion port cover disengages from the unit as shown in Figure 2.
3. Verify that the option card knobs are in the “unlocked” position as shown in
Figure 3.
4. Carefully insert the option card into the expansion port opening while
aligning the card-edge connector on the option card with the main board's
header, as shown in Figure 4. Once aligned, gently press on the front of the
card until it is flush with the front of the case.
5. Turn the option card knobs to the locked position as shown in Figure 5.
Caution: The expansion and main circuit boards contain static
sensitive components. Before handling the cards, discharge static
charges from your body by touching a grounded bare metal object.
Ideally, handle the cards at a static controlled clean workstation.
Also, handle the cards by the edges only. Dirt, oil, or other
contaminants that may contact the cards can adversely affect circuit
operation.
Warning: Risk of Danger: Be sure to remove all power before
removing the expansion port cover.
6,0&$5'
*60*356&(//02'(0
Figure 1
THE OPTION CARD LABEL
Place the option card label on your outer plastic cover of the
Fieldbus Gateway. The label displays the FCC ID of the particular
modem being used in the VFG9000-CEL card.
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF OR
AREA IS KNOWN TO BE NON-HAZARDOUS.
