CONFIGURED USING VLINX FIELDBUS GATEWAY MANAGER

INSTALLS INSIDE A FIELDBUS GATEWAY

INSTALLATION AND CONNECTION HARDWARE ARE INCLUDED

WITH CARD

GENERAL DESCRIPTION

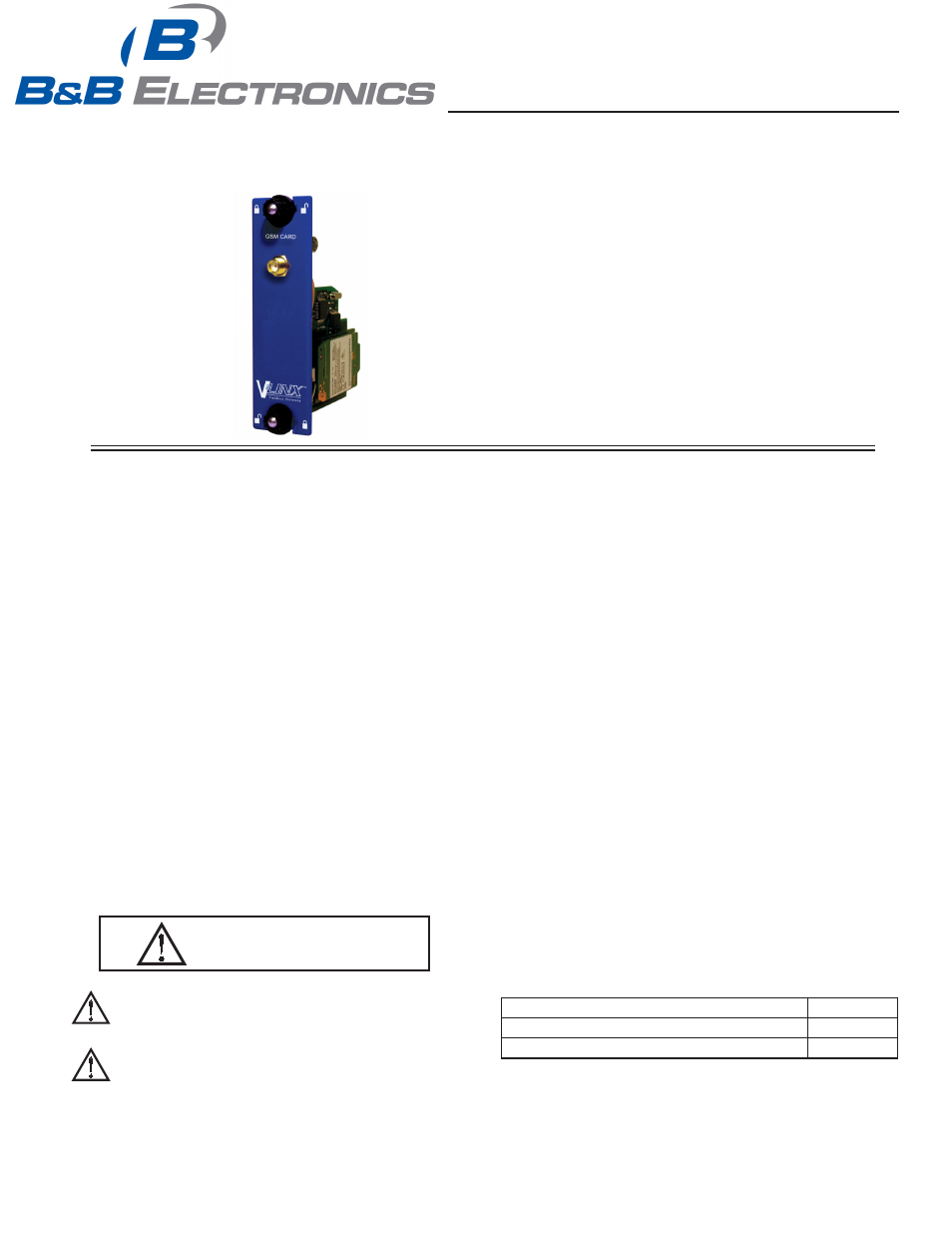

The VFG9000-CEL option card allows the user to add GSM/GPRS cellular

modem capability to their Fieldbus Gateway. GSM/GPRS is the most prevalent

cellular technology in today’s markets. GPRS can be used for services such as

Wireless Application Protocol (WAP) access, Short Message Service (SMS),

and for Internet communication services such as email and World Wide Web

access. The VFG9000-CEL modem option card is quad-band, allowing it to

work in frequencies across the Americas, Europe and Asia. US and Canada

work in the 850/1900 MHz bands, while Europe, Middle East, Africa and most

of Asia work in the 900/1800 MHz GSM/GPRS frequencies.

The VFG9000-CEL requires the addition of a SIM (Subscriber Identity

Module) card, which is inserted into the holder prior to installation of the

VFG9000-CEL card. The SIM card securely stores the service-subscriber key

(IMSI) used to identify a subscriber, and is used to connect to the network to

obtain an IP address from the provider.

The VFG9000-CEL communication card is easily installed by removing the

blank expansion port cover of your Fieldbus Gateway, and plugging the

VFG9000-CEL card into the expansion port. Configuration is simple using

B&B Electronics’ free Fieldbus Gateway Manager software.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the

literature or on equipment must be observed to ensure personal safety and to

prevent damage to either the instrument or equipment connected to it. If

equipment is used in a manner not specified by the manufacturer, the protection

provided by the equipment may be impaired.

Do not use the controller to directly command motors, valves, or other

actuators not equipped with safeguards. To do so can be potentially harmful to

persons or equipment in the event of a fault to the controller.

CONTENTS OF PACKAGE

- VFG9000-CEL option card

- This hardware bulletin

SPECIFICATIONS

1. POWER REQUIREMENTS: 24 V @ 125 mA max. Power is supplied to

the option card from the main board of the Fieldbus Gateway.

2. ANTENNA CONNECTOR:

SMA Female connector requires:

50 Ohm antenna with SMA male connector

Quad-band antenna (850/900/1800/1900 MHz) for global support.

Dual-band (850/1900 MHz) antenna for US and Canada only

Dual band (900/1800 MHz) for Europe only

The antenna cable should be 50 Ω impedance, RG178/U or RG174/U type

and be able to connect to the RSMA (Male) jack bulkhead. The antenna

could be horizontal, vertical or right angled. Longer antenna cable would

equate to signal loss.

This device is intended for connection to an antenna mounted within the

building or a UL certified enclosure suitably rated for application.

3. CERTIFICATIONS AND COMPLIANCES:

Refer to main unit manual or “Agency Approvals” section of B&B

Electronics’ website for agency certifications.

ELECTROMAGNETIC COMPATIBILITY

Emissions and Immunity to EN 61326: Electrical Equipment for

Measurement, Control and Laboratory use.

Reference Fieldbus Gateway unit for EMC specifications

The VFG9000-CEL option card has been tested and found to comply with the

limits for a Class A digital device, pursuant to part 15 of the FCC rules.

4. ENVIRONMENTAL CONDITIONS:

Refer to the specifications of the Fieldbus Gateway you are installing this

card in.

5. CONSTRUCTION: For indoor use only. Installation Category II, Pollution

Degree 2.

6. INSTALLATION REQUIREMENTS: See “Installing the VFG9000-CEL

Option card” for more details.

7. WEIGHT: 3.2 oz (94.64g)

ORDERING INFORMATION

DESCRIPTION

PART NUMBER

GSM/GPRS Cell Modem Option Card for Fieldbus Gateway

VFG9000-CEL

Quad band GSM/GPRS Cellular antenna

1

QANT00

1

QANT00 is a 6 inch direct mount Quad-band antenna.

GSM/GPRS CELLULAR MODEM OPTION CARD FOR VLINX FIELDBUS

GATEWAY

CAUTION: Risk of Danger.

Read complete instructions prior to

installation and operation of the unit.

1

Phone: (815) 433-5100
Fax: (815) 4334-5104
www.bb-elec.com

VFG9000-CEL-1012qsg

LP0836X
Effective 01/10

WARNING - EXPLOSION HAZARD - SUBSTITUTION OF

COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,

DIVISION 2

THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I,

DIVISION 2, GROUPS A, B, C, D, OR NON-HAZARDOUS

LOCATIONS ONLY
