Ip67 outdoor rated Industrial wireless I/o

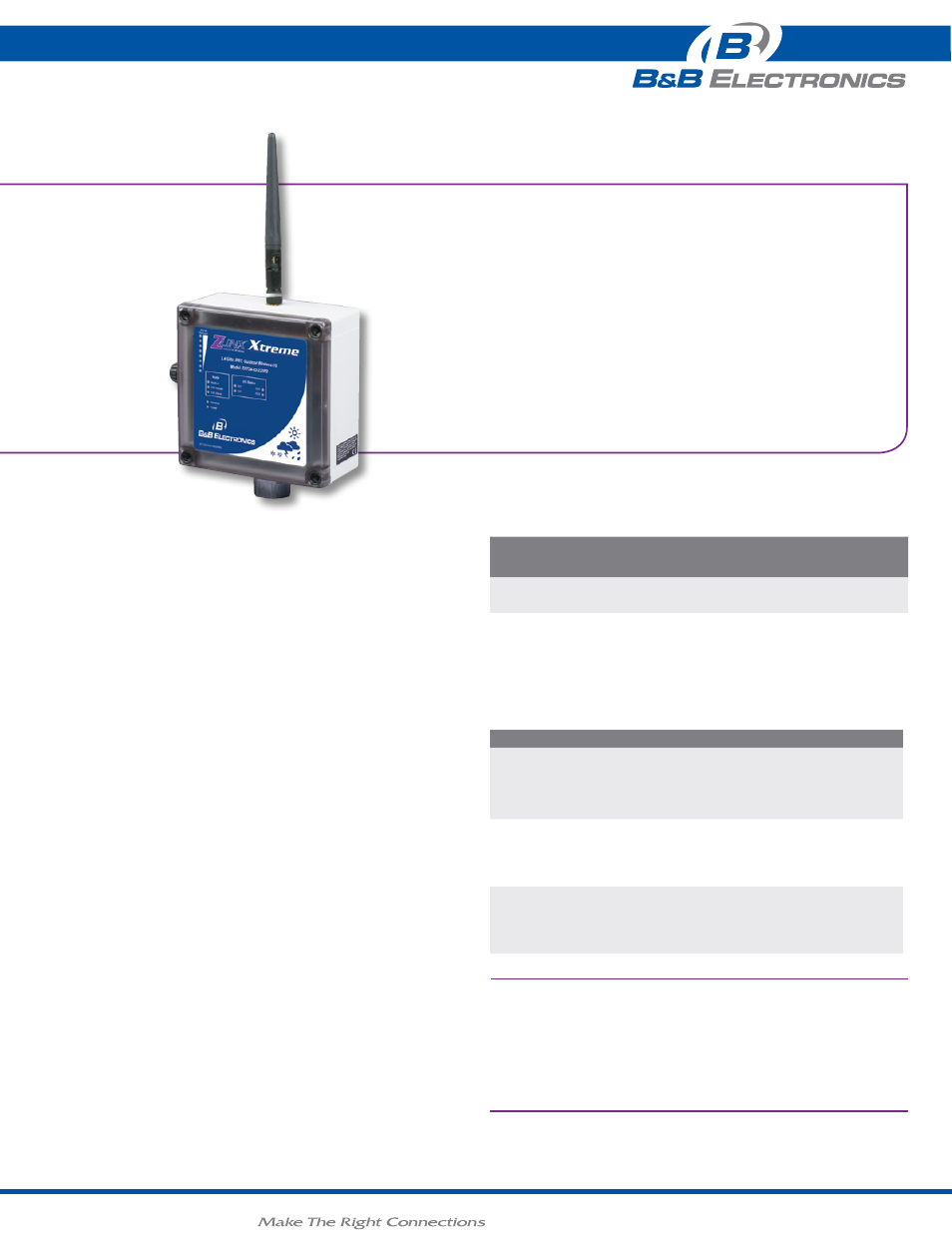

Zlinx Xtreme Wireless I/O
Do you need to monitor remote assets via discrete analog and digital
sensors? Or do you need to control remote control equipment from a
central SCADA/PLC? Is the remote equipment outdoor? Zlinx Xtreme
I/Os can do the job faster, easier and less expensively than stringing
cable.
These compact and rugged IP67 units are ideal for outdoor
applications in extreme weather conditions for connecting remote I/Os
to local I/Os wirelessly (via Peer-to-Peer Mode) or to connect remote I/
Os in multiple locations to a central PLC or SCADA or HMI system via a
Serial Radio Modem (Via Modbus mode).
Zlinx ® Industrial Wireless products operate in license-free, Proprietary
RF 900 MHz and 2.4 GHz ISM bands. Select the 900 MHz version for
longer distances. For further flexibility, the output power is software
selectable. The 900 MHz units offer 256 bit AES Encryption. The 2.4
GHz have 128 bit AES Encryption.
• IP67 rated for outdoor applications
• Flexible configuration for multiple types of analog/digital I/Os
• Modbus compatible
• Range to 40 miles (64 km) Line of Sight & External Antenna
• Heavy-duty machine mount industrial grade case and components
• Signal strength indicator aids trouble shooting
• 900 MHz and 2.4 GHz versions
• Wide operating temperature range -40° to 74°C
• Versatile power 10- 30 VDC
• AES Encryption
• UL, Class1/Division2
ordErIng InFormatIon
Model nuMBer deSCriPtion
analog
inPutS
analog
outPutS
digital
inPutS
digital
relay
outPutS
Zlinx xtreme wireless i/o
ZXT24-IO-222R2 2.4 GHz *
2 2 2 2
ZXT9-IO-222R2 900 MHz * 2 2 2 2
aCCEssorIEs
CLG-60-24 P67 Power Supply, Panel Mount, 24VDC, 60 W
ZXT9-ANT 900 MHz Spare Antenna
ZZ24D-ANT1 2.4 GHz Spare Antenna
ZXTMT Conduit Mounting Kit
produCt FEaturEs
ordErIng InFormatIon
Model nuMBer deSCriPtion
Zlinx xtreme wirless i/o kit
ZXT9-IOA-KIT
Z linx xtreme iP67 Peer-to-Peer i/o kit:
2 - ZXT9-IO-222R2 (I/O Modules),
2 - CLG-60-24 (Power Supply).
1 - USBAMBM-6F (Program Cable)
ZXT9-MB1A-KIT
Zlinx xtreme iP67 Modbus i/o kit:
1 - ZXT9-RM (Radio Modem),
1 - ZXT9-IO-222R2 (I/O Module),
2 - CLG-60-24 (Power Supply),
1 - USBAMBM-6F (Program Cable)
ZXT9-MB2A-KIT
Zlinx xtreme iP67 Modbus i/o kit:
1 - ZXT9-RM (Radio Modem),
2 - ZXT9-IO-222R2 (I/O Module),
3 - CLG-60-24 (Power Supply),
1 - USBAMBM-6F (Program Cable)
World-wide.
Check with your local distributor for availability and options.
* Check wireless regulations/standards in your geographic area.
Zlinx Extreme Wireless I/O_3713ds
