LED Operation
Each iMcV-Module features diagnostic LEDs that provide information on features and
ports.

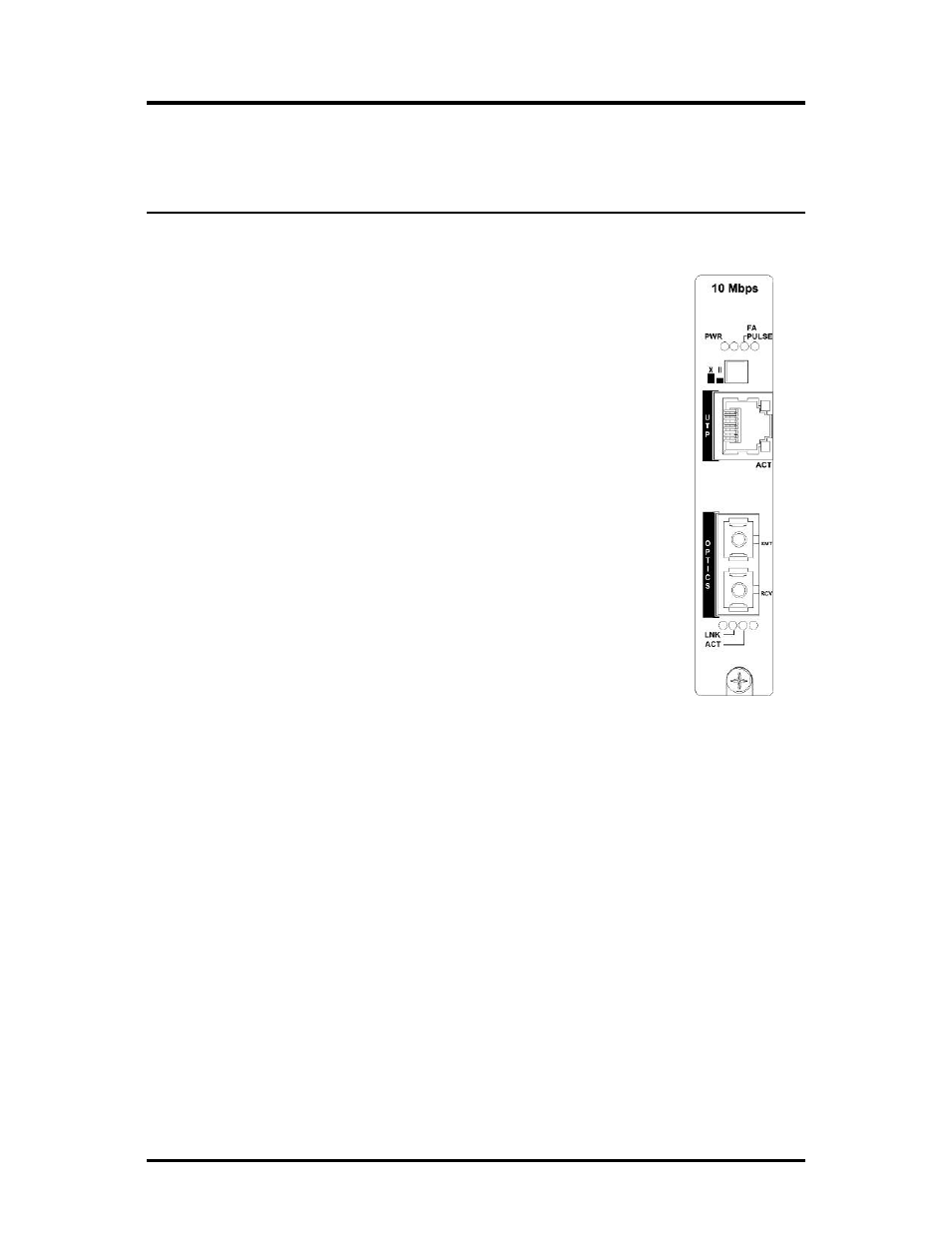

LEDs on iMcV-PIM (-10)
The LED functions are as follows:
PWR Glows green when unit has power.
LNK (RJ-45) Glows green if link is established on the twisted
pair port (located on RJ-45).
ACT (RJ-45) Glows amber when data is being passed on the
twisted pair (located on RJ-45).
LNK Glows green when link is established on the
fiber port.
ACT Glows green if data is being passed on the fiber
port.
FA Pulse Glows green when Pulsing FiberAlert is enabled
