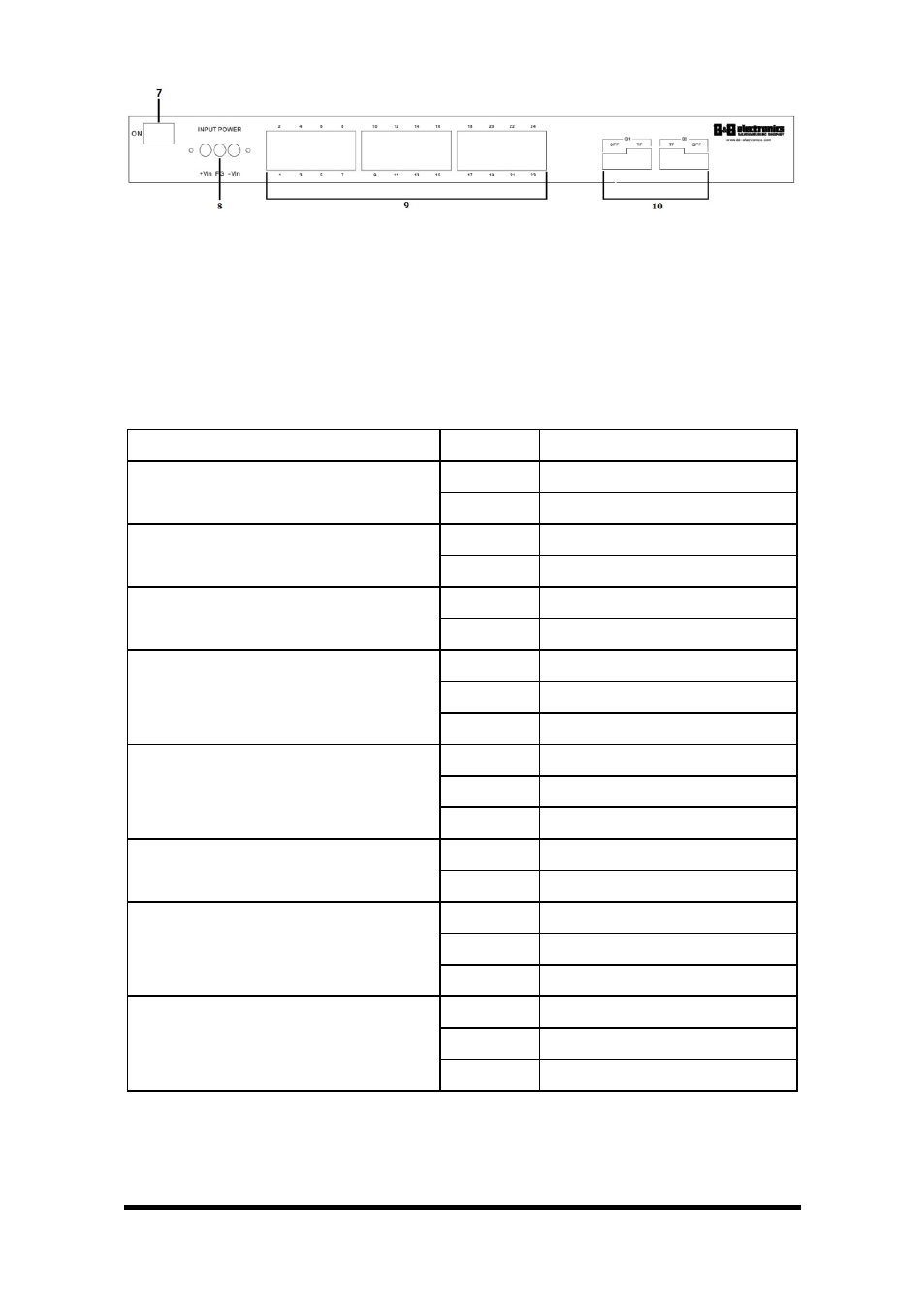

Back Panel
7. On / OFF Switch
8. Power Input
9. RJ45 Port
10. Fiber, Combo SFP or RJ45 Port
LED Description
LED Status Description
PWR Green Power Applied
Off No power
STA
Green System Ready
Off System down
10/100 Copper Upper LED
Green 100Mbps
Off 10Mbps
10/100 Copper Lower LED
Green Link
Blinking Activity
Off Not connected to network
Fiber LED
Green Link
Blinking Activity
Off Not connected to network
10/100/1000 Copper Upper LED Green 1000Mbps
Off 10/100Mbps
10/100/1000 Copper Lower LED
Green Link
Blinking Activity
Off Not connected to network
SFP LED
Green 1000Mbps
Blinking Activity
Off Not connected to network
