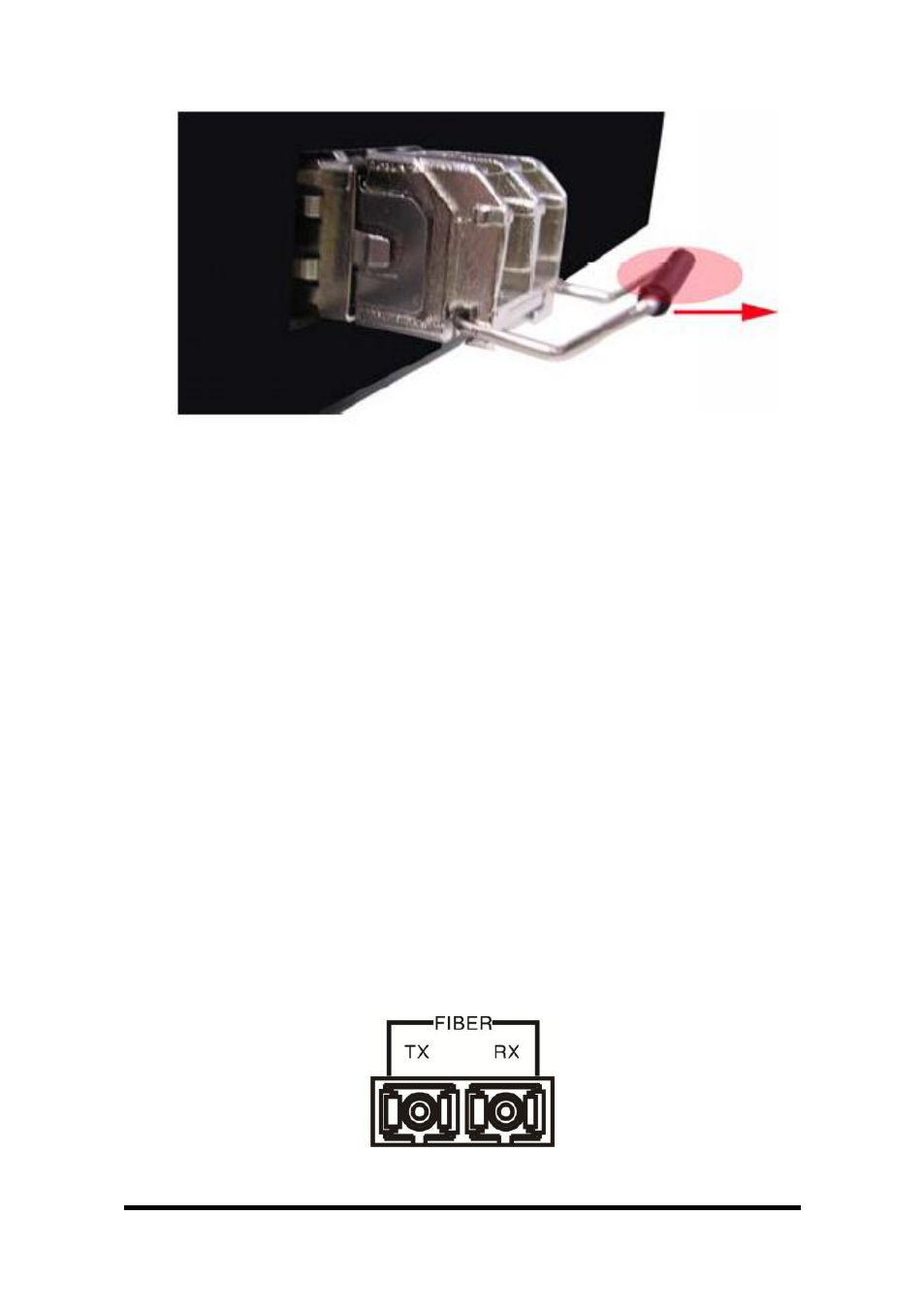

To remove SFP modules lower removal bar and firmly pull transceiver out.
Cabling
Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable.
10Mbps: Category 3, 4, 5 or great cable
100Mbps: Category 5 or great cable
1000Mbps: Category 5e or great cable
Maximum cable length: 100 meters (328ft.)
100Base FX SC Fiber
The use of fiber optics has become prevalent in Industrial Ethernet network
communication systems. Extending distance, high data rate capabilities,
noise rejection and electrical isolation are just a few of the important
characteristics that make fiber optic technology ideal for use in industrial
applications.
Each fiber port has a TX (transmit) and RX (receive) connection fixed at
100Mbps speed. The fiber ports will support multi mode or single mode
fiber dependent on the model number ordered.
