Troubleshooting
Fast, Easy Answers
One USB port is required for each installed device.
The USB port can be native to the PC or it can be a
USB port on a USB hub that is connected to a PC.
The device works with USB 1.1 or 2.0 ports. But it
has a maximum USB data rate of 12 Mbps.
To verify the installation you may open the Windows
Device Manager. Scroll down to Ports. Expand the
flyout window. You should see the new ports. If there
are no exclamation points or other trouble indicators
the ports are installed correctly and ready for use.
Sleep & Hibernate: Windows 7 disables USB transmit
while in Sleep & Hibernate.
Terminal Block
One conductor per terminal.
Use copper wire only.
Wire size 16 to 28 AWG.
Tightening torque 5 KG -CM.
Wire temperature rating: 105 °C
(Sized for 60 °C ampacity
Fast and easy on the web: www.bb-elec.com

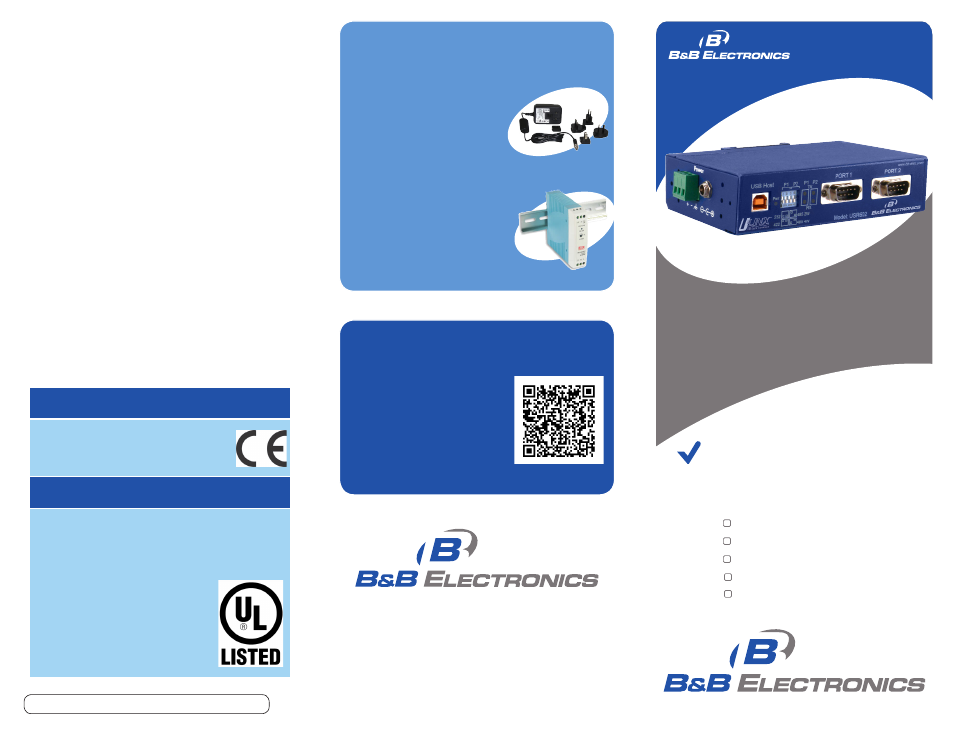

Two-port USB to
Serial Converter
USR602
© 2011 B&B Electronics Manufacturing Company
1-888-948-2248 | Europe: +353 91 792444
www.bb-elec.com
Recommended Accessories
Please double check
Step 7.
You can also use your
smart phone to access
complete documentation
on our website. Simply
scan the code to the right.
PS12VLB-INT-MED
Power Supply
http://www.bb-elec.com/
product_multi_family.asp?
MultiFamilyId=133&Trail=
16&TrailType=Top
MDR-20-24
DIN rail mount
power supply
http://www.bb-elec.com/
product_multi_family.asp?
MultiFamilyId=133&Trail=
16&TrailType=Top
USR602
Two Meter USB Cable
Panel mount adapters
DIN rail mount adapter
CD ROM with Drivers
First Things First...
Before you begin, be sure you have
the following:
707 Dayton Road | PO Box 1040 | Ottawa, IL 61350
Phone: 815-433-5100 | Fax: 815-433-5109
www.bb-elec.com | E-mail: [email protected]
•
•
Q
uick
S
tart
G
uide
Information - FCC rules
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) this device must accept any interference that may
cause undesired operation.
Information - UL Class 1 Div 2
Suitable for use in Class 1, Division 2, Groups A, B, C and
D Hazardous Locations, or Nonhazardous locations only.
WARNING - EXPLOSION HAZARD – DO NOT
DISCONNECT EQUIPMENT WHILE THE CIRCUIT IS LIVE
UNLESS THE AREA IS KNOWN TO BE FREE OF
IGNITABLE CONCENTRATIONS.
Install in accordance with control drawing
number 9340R0.
Ind. Cont. Eq.
For HAZ LOC
3HTV
E245458
Class I, Div. 2, Groups A, B, C & D
Temp. Code: T4A
Document number – PN8940_R004_USR602_4712qsg
