International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
10/100/1000 mbps managed Optical
Demarcation module
iMcV-Giga-FiberLinX-III
SpecificationS
General
Preserves complete end-to-end fiber connection integrity
Supports Extra Tagging (Q-in-Q)
Supports 802.3ah OAM (Operation, Administration & Management)
Support 802.1ag
Bi-directional bandwidth control
Read/write IEEE 802.1Q VLAN-tags
QoS: IEEE 802.1p-based packet prioritization (2 queues [high/low] with 8 levels of
priority)
Layer 2 packet switching, store and forward operation
Forwarding rate: 14,881 pps for 10 Mbps; 148,810 pps for 100 Mbps; 1,488,100
pps for 1000 Mbps
Features Auto Negotiation and Selective Advertising
Supports up to 64 VLANs operation
MTU: Supports over-sized (Jumbo) packets up to 10240 bytes
Security
Password Control
Multiple Access Levels: User Assigned Accounts & Access Levels
ManaGeMent
SNMP V1 and V2c compatible
Includes GUI-based iView² software for remote management (WIN and WebServer
versions)
Monitors far-end (remote) status without a physical presence or separate
connection
IEEE 802.3x Flow Control
Includes DHCP and TFTP clients
Supports Telnet
Includes loopback test modes (MAC swap)
Includes Link Fault Pass Through
Supports Unified Management Agent (UMA)
Includes status LEDs
ethernet ProtocolS SuPPorted
IEEE 802.3ab 1000Base-T twisted pair
IEEE 802.3z 1000Base-X fiber
IEEE 802.3x Flow Control
IEEE 802.3i 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
Mechanical
Dimensions
Standard single-slot chassis module
Shipping Weight
0.3 lbs (0.136078 kg)
Power consuMPtion
731mA at 5V
environMental
Operating Temperature:
+32° to +122° F (0° to +50° C)
Storage Temperature:
-13° to +158° F (-25° to +70° C)
Humidity:
5% - 95% (non-condensing)
regulatory aPProvals
FCC Class A
UL/cUL, CSA, CE
4.19
.71
3.57
2.73
3.04
.38
1.00
.78
.34
.27
.68
3.45
2.13
.61
1.28

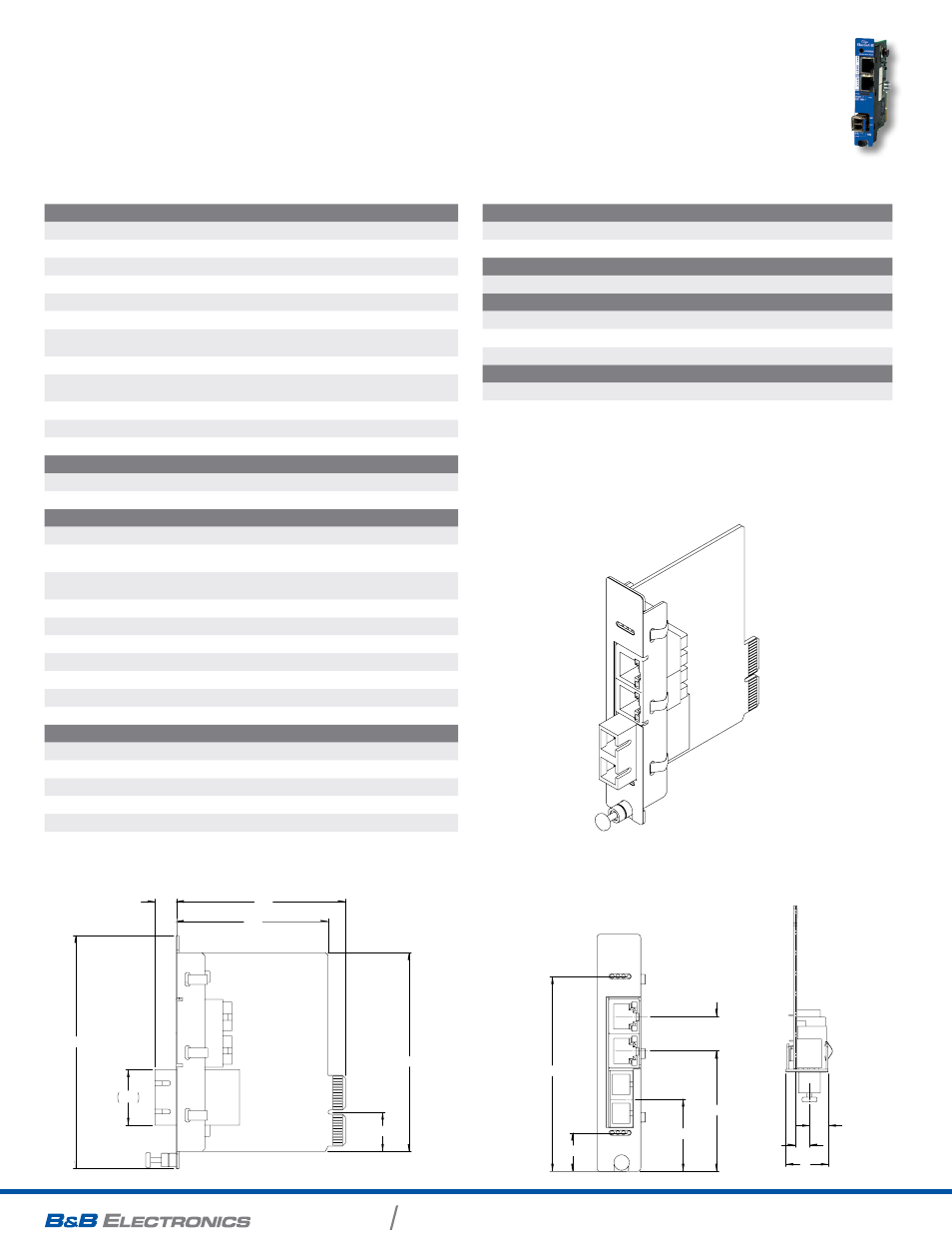

mEChAniCAl DiAgRAm
(dimensions in inches)
