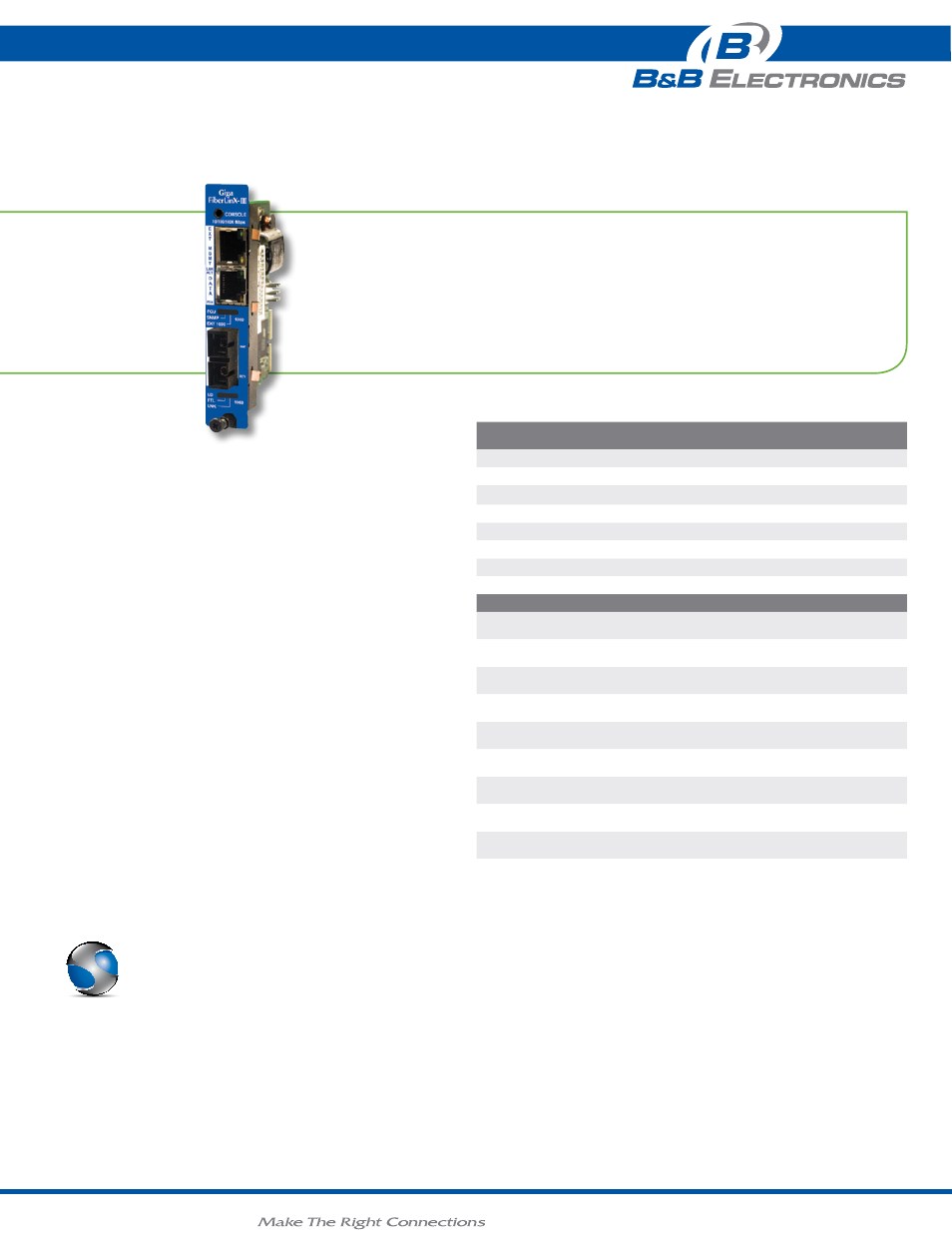

The iMcV-Giga-FiberLinX-III intelligent media converter connects a
Host/Remote Ethernet network over a fiber optic or CAT 5 copper
connection. It combines media conversion with an advanced-feature
set for network management and troubleshooting, including OAM
(Operations, Administration and Maintenance), Extra-Tagging and
EtherType control functionality. With the iMcV-Giga-FiberLinX-III,
administrators can observe the end-points over the fiber segment
between them, as a single management entity. Bandwidth scalability
and support for MIBs II makes this modular device a versatile gigabit
solution, now available as a single wide module.
iMcV-Giga-FiberLinX-III allows for remote configuration and alerts
administrators to any potential problems on the long-haul fiber run,
provides vital information on link condition and reports data traffic
statistics.. In addition to the iMcV-Giga-FiberLinX-III's support for
Host/Remote environments, the product also has built-in support for
the Unified Management Agent (UMA). With UMA, the central location
can manage all Host/Remote pairs installed in an iMediaChassis with
the single IP address of the chassis.
Optional single- or dual-SFP port versions or all copper (RJ-45) port
versions are also available for complete network flexibility. The iMcV-
Giga--FiberLinX-III SFP requires one or two MSA-compliant fiber optic
SFP modules (sold separately) to operate. [Copper SFPs are
not supported.]
• Single wide module, allowing maximum use of slots in
multi-port chassis
• 3 mode of Operation, to ease the use of installation
• SFP port model supports both copper and fiber SFPs
• Backwards compatible with the iMcV-Giga-FiberLinX-II
• Offers up to 64 VLANs
PRODUCT FEATURES
ORDERing inFORmATiOn
Model
NuMber
Fiber
Fiber
Ports raNge
etherNet
Ports
etherNet
CoNNeCtor
iMcV-giga-FiberlinX-iii tX/sFP
856-14201
TX/SFP
1
Various
2
RJ45
iMcV-giga-FiberlinX-iii
856-14205
SX-MM850-SC
1
220/550 m 2
RJ45
856-14206
LX-SM1310-SC
1
10 km
2
RJ45
856-14207
LX-SM1310/PLUS-SC
1
40 km
2
RJ45
856-14208
LX-SM1550/LONG-SC
1
80 km
2
RJ45
856-14209
LX-SM1550/XLONG-SC
1
100 km
2
RJ45
siNgle straNd Fiber *
856-14220
SSLX-SM1310-SC
(1550 rcv)
1
15 km
2
RJ45
856-14221
SSLX-SM1550-SC
(1310 rcv)
1
15 km
2
RJ45
856-14222
SSBX-SM1310-SC
(1490 rcv)
1
10 km
2
RJ45
856-14223
SSBX-SM1490-SC
(1310 rcv)
1
10 km
2
RJ45
856-14224
SSLX-SM1310/PLUS-SC
(1550 rcv)
1
40 km
2
RJ45
856-14225
SSLX-SM1550/PLUS-SC
(1310 rcv)
1
40 km
2
RJ45
856-14226
SSLX-SM1310/PLUS-SC
(1550 rcv)
1
30 km
2
RJ45
856-14227
SSLX-SM1550/PLUS-SC
(1310 rcv)
1
30 km
2
RJ45
856-14228
SSLX-SM1490/LONG-SC
(1550 rcv)
1
70 km
2
RJ45
856-14229
SSLX-SM1550/LONG-SC
(1490 rcv)
1
70 km
2
RJ45
10/100/1000 mbps managed Optical
Demarcation module
iMcV-Giga-FiberLinX-III
10/100/1000 mbps managed Optical
Demarcation module
iMcV-Giga-FiberLinX-III
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
iMcV-Giga-FiberLinX-III also available in CWDM
Fiber. Call for details.
i
View
2
DEVICE MANAGEMENT APPLICATION
iView: Windows 2000/XP/Vista/Win7
