D r - u p s 4 0, 40a dc ups module, Specification

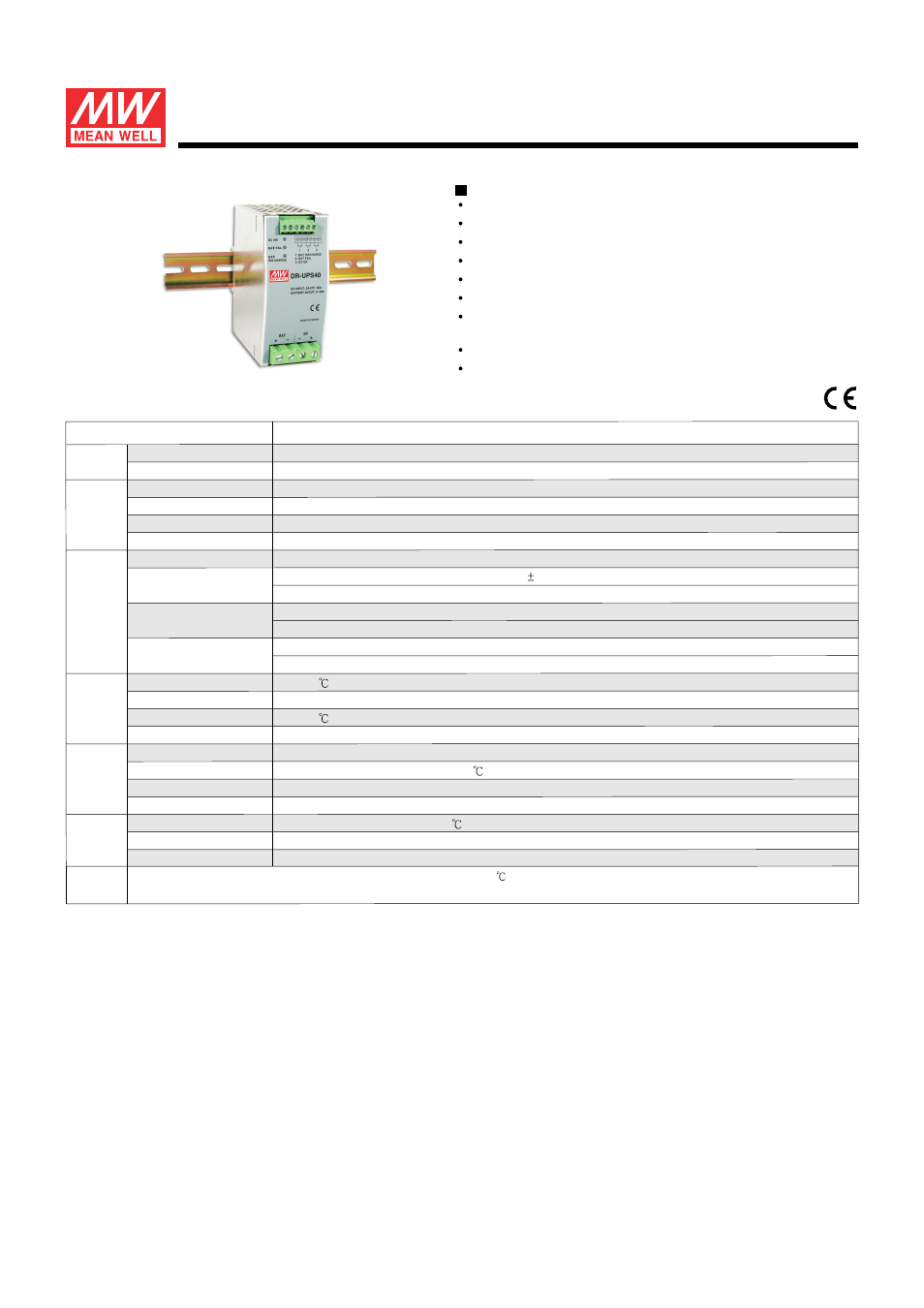

background image

SPECIFICATION

MODEL

MTBF

DIMENSION

NOTE

PACKING

1. All parameters NOT specially mentioned are measured at rated load and 25

of ambient temperature.

2. Every 25 seconds, unit will send out test signal through "Battery Fail" relay contact and LED indicator once the battery is fail.

File Name:DR-UPS40-SPEC 2007-04-02

40A DC UPS Module

D R - U P S 4 0

Features :

DC INPUT /
DC BUS

BATTERY

INPUT /

OUTPUT

OTHERS

ENVIRONMENT

DR-UPS40

DC VOLTAGE (Typ.)

RATED CURRENT

VOLTAGE RANGE (Typ.)

CURRENT RANGE

CHARGE CURRENT (Typ.)

EXTERNAL BATTERY (Typ.)

RELAY CONTACT RATING (max.)

DC BUS OK

BATTERY FAIL

Note.2

BATTERY DISCHARGE

WORKING TEMP.

WORKING HUMIDITY

STORAGE TEMP., HUMIDITY

VIBRATION

24 ~ 29V

40A

21 ~ 29V

0 ~ 40A

2A

4 / 7 / 12AH / 24V

30VDC, 1A

Relay contact : Short when DC voltage between 21~29V( 3%), relay contacts

LED(Green) : DC BUS OK : light ; DC BUS fail : dark

Relay contact : Short when battery failure is observed through the battery test function, relay contacts

LED(Red) : Battery over-discharge warning or battery broken : light ; Battery OK : dark

Relay contact : Short when battery in discharge condition, relay contacts

LED(Yellow) : Battery discharging : light ; Battery is not discharging or discharging current<2.0A : dark

-20 ~ +70

20 ~ 90% RH

-20 ~ +85

, 10 ~ 95% RH

Component : 10 ~ 500Hz, 2G 10min./1cycle, 60min. each X, Y, Z axes ; Mounting : Compliance to IEC600068-2-6

FUNCTION

161.9Khrs min.

MIL-HDBK-217F (25

)

55.5*125.2*100mm (W*H*D)
0.55Kg; 20pcs/12Kg/1.1CUFT

SAFETY &

EMC

Battery controller for DIN Rail UPS system

Parallel connection to DC BUS

Suitable for 24V system up to 40A

Installed on DIN Rail TS35 / 7.5 or 15

Built-in battery test function

Battery polarity protection

Relay contact signal output and LED indicator for DC BUS OK,

Battery Fail, and Battery Discharge

Cooling by free air convection

3 years warranty

WITHSTAND VOLTAGE

ISOLATION RESISTANCE

Terminal-Chassis :>100M Ohms/500VDC 25

70%RH

Terminal-Chassis :0.5KVAC, Relay Contacts-Terminal :0.5KVAC

EMS IMMUNITY

EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B

Compliance to EN61000-4-2,3,4,5,6,8, ENV50204, heavy industry level, criteria A
