5 Port Industrial ethernet switch,
with sFP Port for gigabit Fiber
EIR405-SFP-T

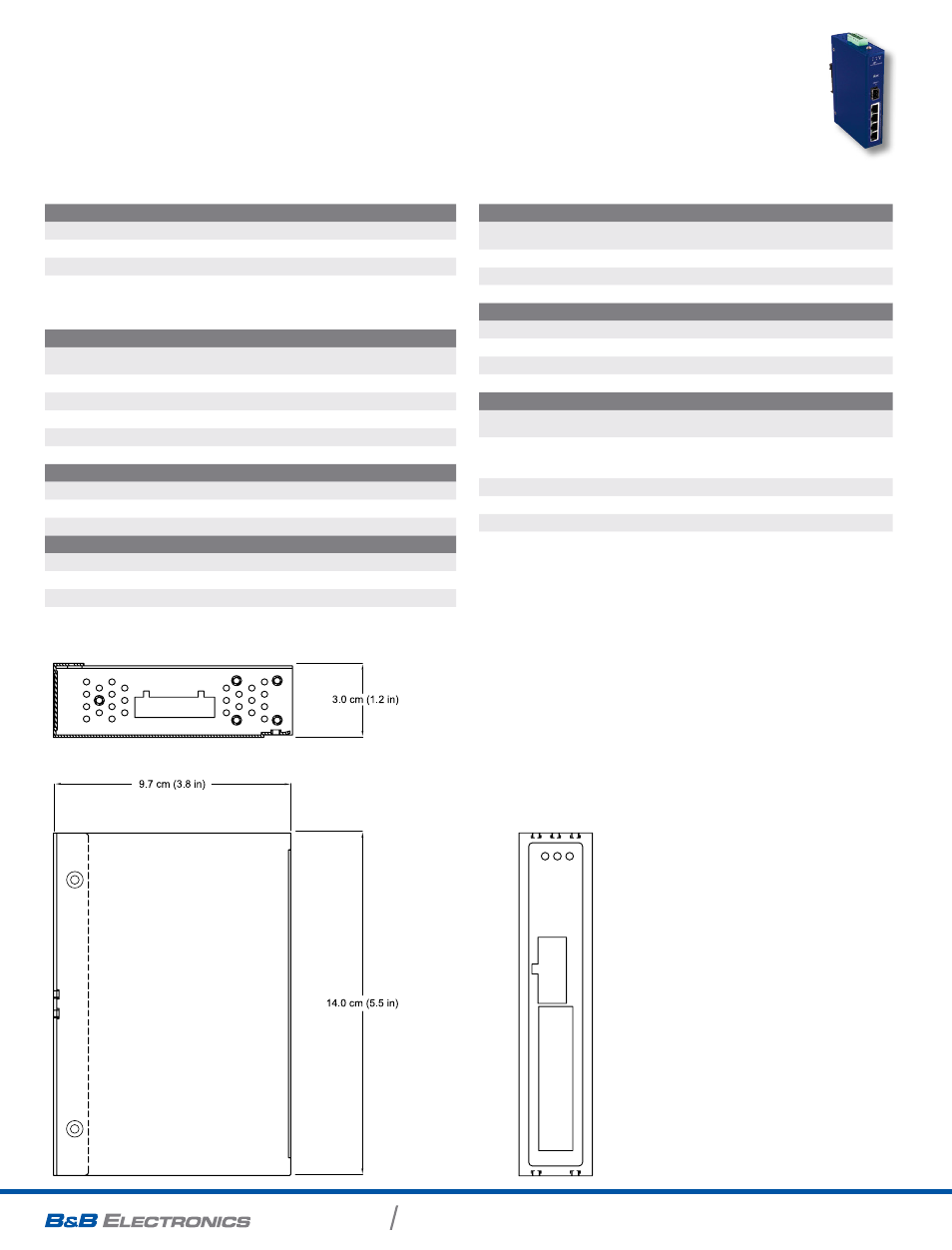

mechAnIcAl dIAgrAm
regulatory
Approvals
FCC, CE, UL, NEMA TS2
UL File Number: E173795
Free Fall
IEC60068-2-32
Shock
IEC60068-2-27
Vibration
IEC60068-2-6
ieee standards
IEEE 802.3
802.3. 10Base-T Ethernet
IEEE 802.3u
100Base-TX and 100Base-FX Fast Ethernet
IEEE 802.3ab
1000Base-T
IEEE 802.3x
Flow Control and Back Pressure
network sPeciFications
Architecture
Back-plane (Switching Fabric): 10Gbps
Throughput (Full-dux): 14.88Mpps@64bytes
Transfer Rate
14,880 pps Ethernet Port
148,800 pps Fast Ethernet Port
1,488,000 pps Gigibit Fiber Ethernet
Buffer
136 Kbits
MAC Table
8K
Jumbo Frame
9Kbytes
Other
Broadcast Storm Filtering
CSMA/CD
sPecIFIcAtIons
interFace
RJ-45 Ports
4 x 10/100/1000BaseT, Auto MDI/MDI-X
ESD Protection
4000V ESD Protection
SFP
1 x Mini-GBIC SFP Socket
LED Indicators
P1 (Power 1), P2 (Power 2),
Fault (Power Fault), LINK/ACT (SFP Port)
RJ-45 Ports have 2 LED’s to indicate LINK
and activity
Power
Input Voltage
Dual 12 to 48 VDC Inputs
Reverse Polarity Protection
Power Connection
Removable Terminal Block
Wire Size
12 to 24 AWG
Power Use
5.5 Watts
Fault Output
1 Relay Output – Normally Closed
EFT Protection
3000 V EFT Protection
enVironMental
Operating Temperature
- 40 to 75°C (-40 to 167°F)
Storage Temperature
- 40 to 85°C (-40 to 185°F)
Operating Humidity
0 to 95%
Mechanical
Enclosure
IP30 Metal Enclosure
Mounting
35 mm DIN Rail or Panel Mount Attachments
Dimensions
3.0 x 9.7 x 14.0 cm (1.2 x 3.8 x 5.5 in)
