MAX907/MAX908/MAX909
Dual/Quad/Single, High-Speed, Ultra-Low-Power,
Single-Supply TTL Comparators
_________________________________________________________________________________________________ 7
MAX907/MAX908

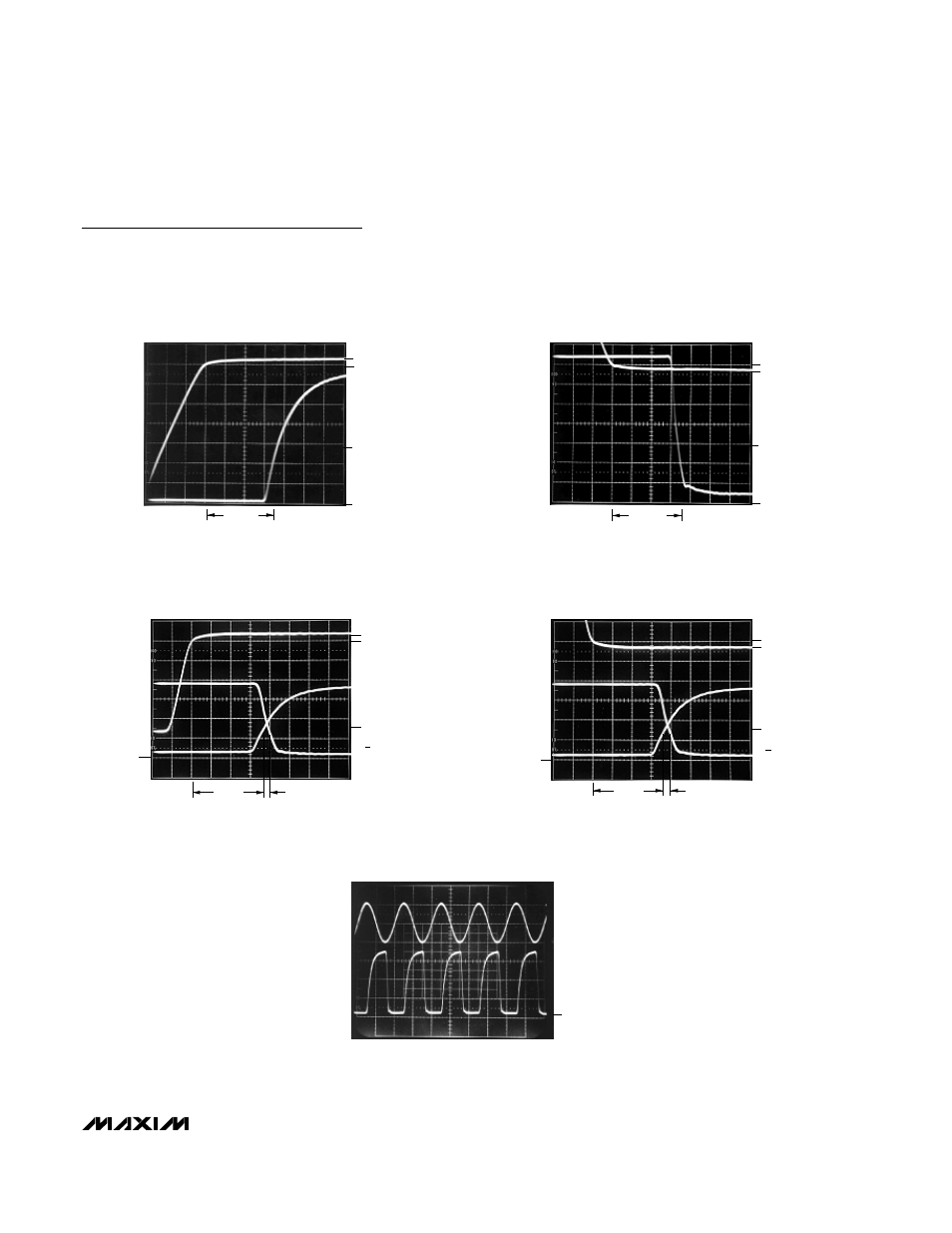

PROPAGATION DELAY (t
PD
+)
(5mV OVERDRIVE)
INPUT
20mV/div
TTL
THRESHOLD (1.4V)
OUTPUT
GND
10ns/div
t PD +
5mV OVERDRIVE
OUTPUT
500mV/div
INPUT GND
MAX907 TOC19
MAX907/MAX908
PROPAGATION DELAY (t
PD
-)
(5mV OVERDRIVE)
INPUT
20mV/div
OUTPUT
500mV/div
OUTPUT
GND
10ns/div
t
PD
-
-5mV OVERDRIVE
TTL
THRESHOLD
(1.4V)
INPUT GND
MAX907 TOC20
1V/div
RESPONSE TO 10MHz SINE WAVE
20mVp-p
10MHz SINE WAVE
INPUT
COMPARATOR
OUTPUT
50ns/div
GND
MAX907 TOC23
MAX909
PROPAGATION DELAY (t PD +)
(5mV OVERDRIVE)
INPUT
20mV/div
OUTPUT
GND
5mV OVERDRIVE
INPUT GND
QOUT
1V/div
QOUT
10ns/div
t PD + t PD SKEW
1.4V
MAX907 TOC21
1.4V
MAX909
PROPAGATION DELAY (t PD -)
(5mV OVERDRIVE)
INPUT
20mV/div
OUTPUT
GND
INPUT GND
-5mV OVERDRIVE
QOUT
1V/div
QOUT
10ns/div
t PD - t PD SKEW
MAX907 TOC22
Typical Operating Characteristics (continued)
(V+ = 5V, T
A
= +25°C, unless otherwise noted.)
