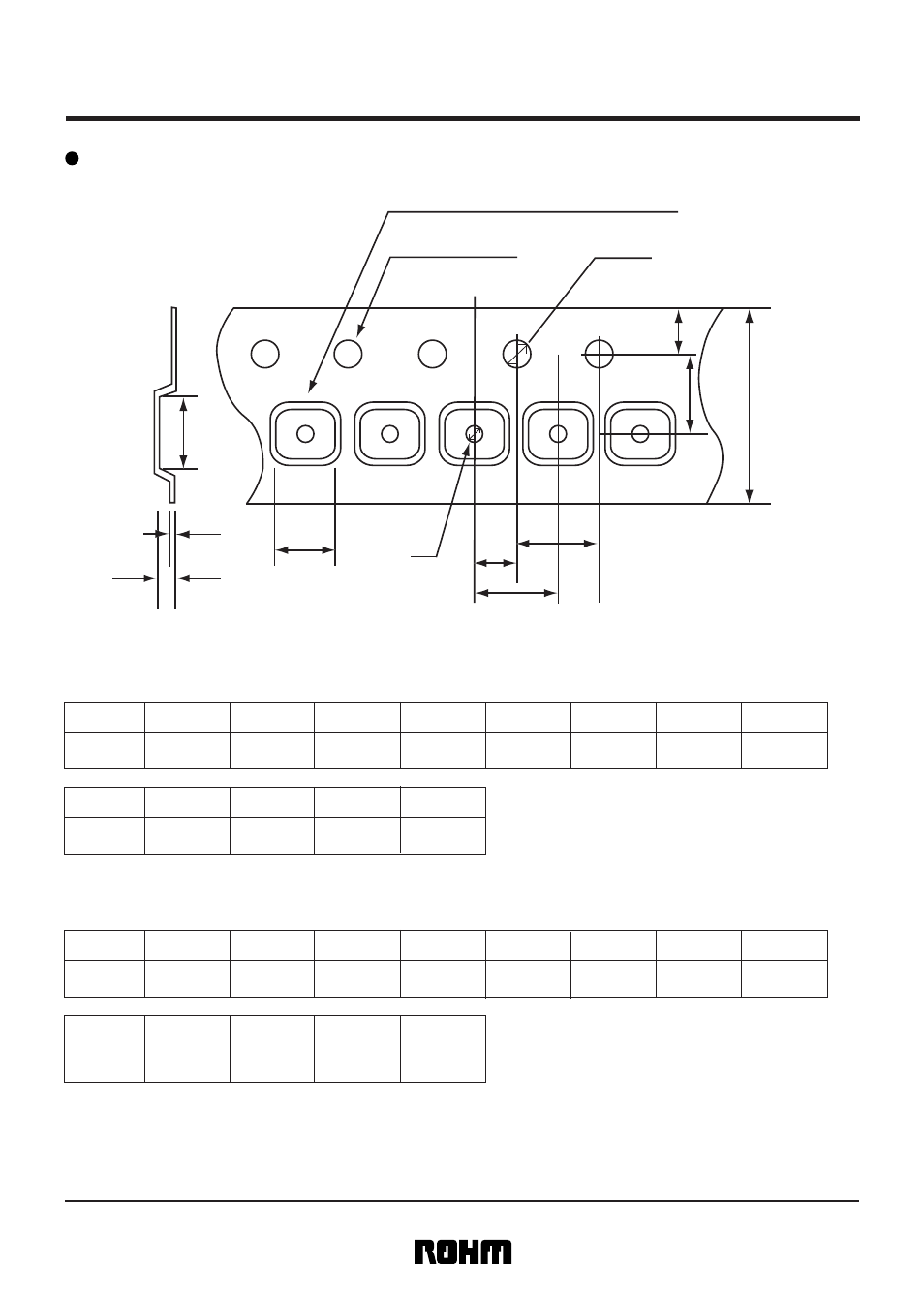

Taping specification
Rectangular recess to hold a component
Circular feed hole
B
A
D1 P2
P0
W F
E
D0
P1
t
K
Package SSOP5 (SMP5C2)
Symbol
Dimension
Symbol
Dimension
Symbol
Dimension
Symbol
Dimension
A
3.2±0.1
B
3.1±0.1
D1
1.1±0.1
E
1.75±0.1
F
3.5±0.05
P0
4.0±0.1
P1
4.0±0.1
D0
1.5 +0.1
–0
P2
2.0±0.05
t
0.3±0.05
K
1.3±0.1
W
8.0±0.2
(mm)
Package VSOF5 (EMP5)
A
1.83±0.1
B
1.83±0.1
D1
0.5±0.1
E
1.75±0.1
F
3.5±0.05
P0
4.0±0.1
P1
4.0±0.1
D0
1.5 +0.1
–0
P2
2.0±0.05
t
0.25±0.05
K
0.75±0.1
W
8.0±0.2
(mm)
Fig.38
1)Dimension of tape
12/15
Voltage detectors
BD48XXG/FVE
BD49XXG/FVE
Rev.A
