ATF750LVC
5

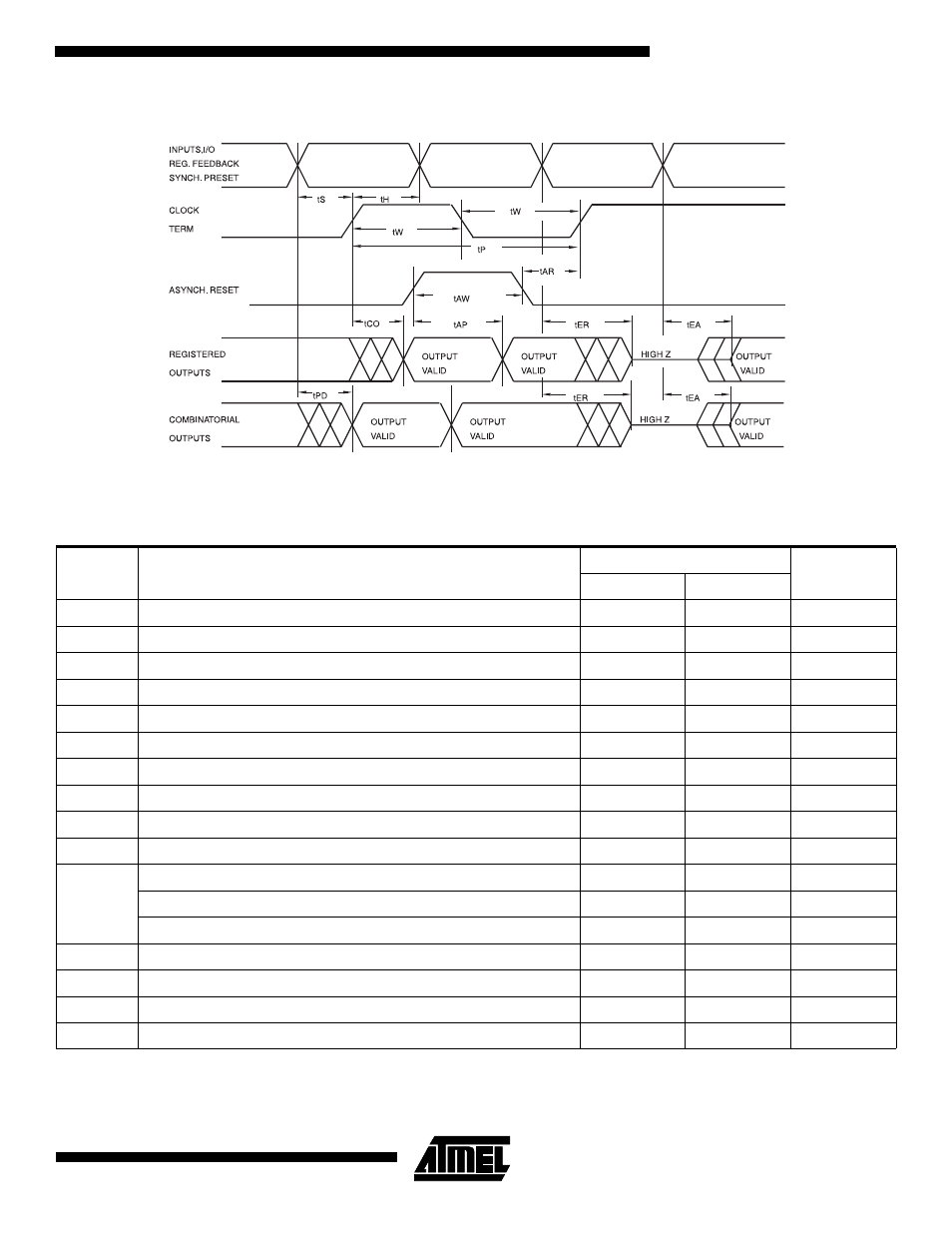

AC Waveforms, Product Term Clock
(1)
Note: 1. Timing measurement reference is 1.5V. Input AC driving levels are 0.0V and 3.0V, unless otherwise specified.
Note: 1. See ordering information for valid part numbers.
AC Characteristics, Product Term Clock
(1)
Symbol Parameter
-15
Units Min Max
t
PD
Input or Feedback to Non-registered Output 15 ns
t
EA
Input to Output Enable 15 ns
t
ER
Input to Output Disable 15 ns
t
CO
Clock to Output 5 12 ns
t
CF
Clock to Feedback 5 9 ns
t
S
Input Setup Time 8 ns
t
SF
Feedback Setup Time 7 ns
t
H
Hold Time 5 ns
t
P
Clock Period 14 ns
t
W
Clock Width 7 ns
f
MAX
External Feedback 1/(t
S
+ t
CO
) 50 MHz
Internal Feedback 1/(t
SF
+ t
CF
) 62 MHz
No Feedback 1/(t
P
) 71 MHz
t
AW
Asynchronous Reset Width 15 ns
t
AR
Asynchronous Reset Recovery Time 15 ns
t
AP
Asynchronous Reset to Registered Output Reset 15 ns
t
SP
Setup Time, Synchronous Preset 8 ns
