ISD4004 Series
17 ISD

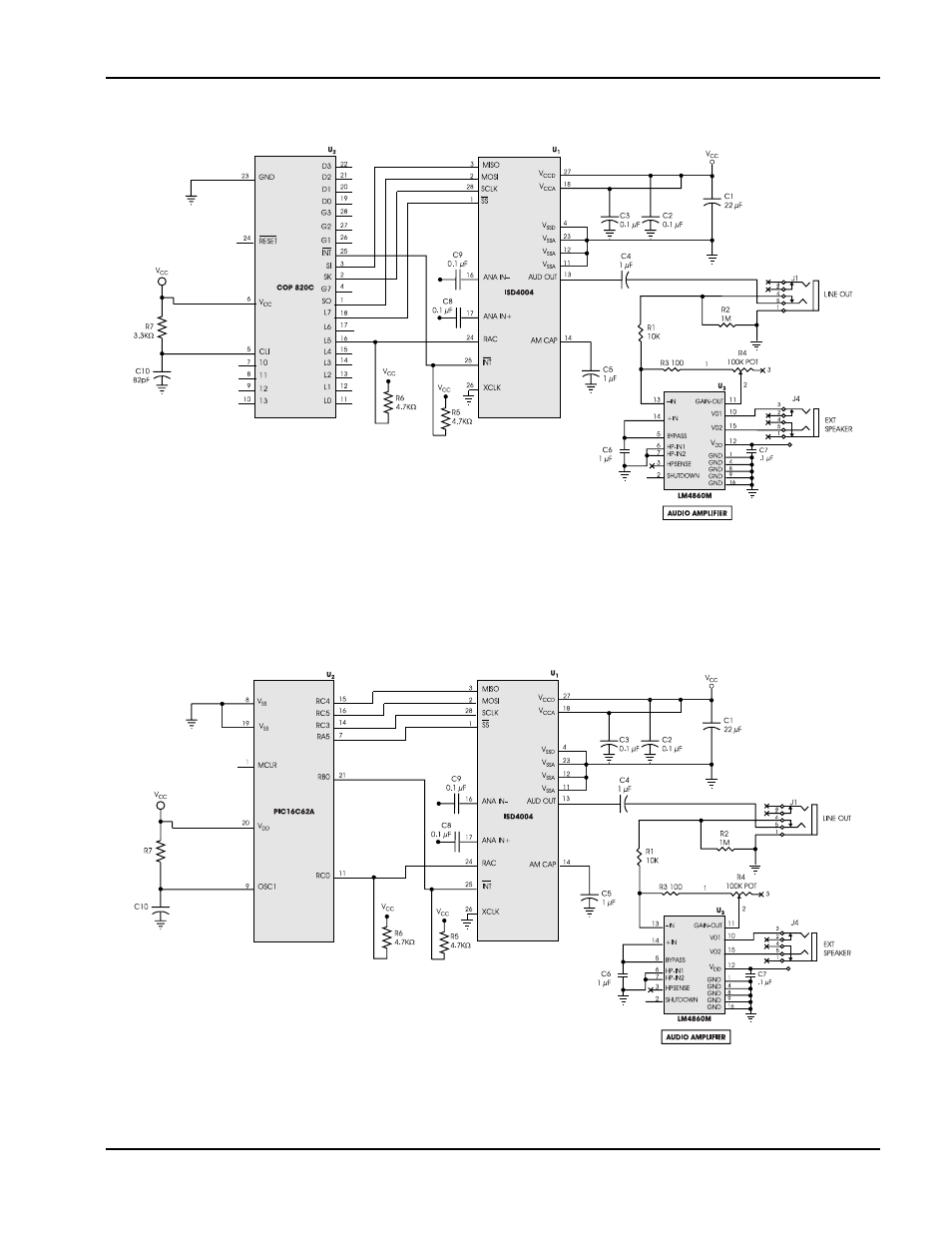

Figure 10: Application Example Using Microwire (1)
1. This application example is for illustration purposes only. ISD makes no representation or warranty that such
application will be suitable for production.
2. Please make sure the bypass capacitor, C2 is as close as possible to the package.
Figure 11: Application Example Using SPI Port on Microcontroller
(1)
1. This application example is for illustration purposes only. ISD makes no representation or warranty that such
application will be suitable for production.
2. Please make sure the bypass capacitor, C2 is as close as possible to the package.
